Slican IPM-032
3.2 Version WM
″
installation method – wall mounted
″
access to extension cards – after opening a drawer and removing cover
″

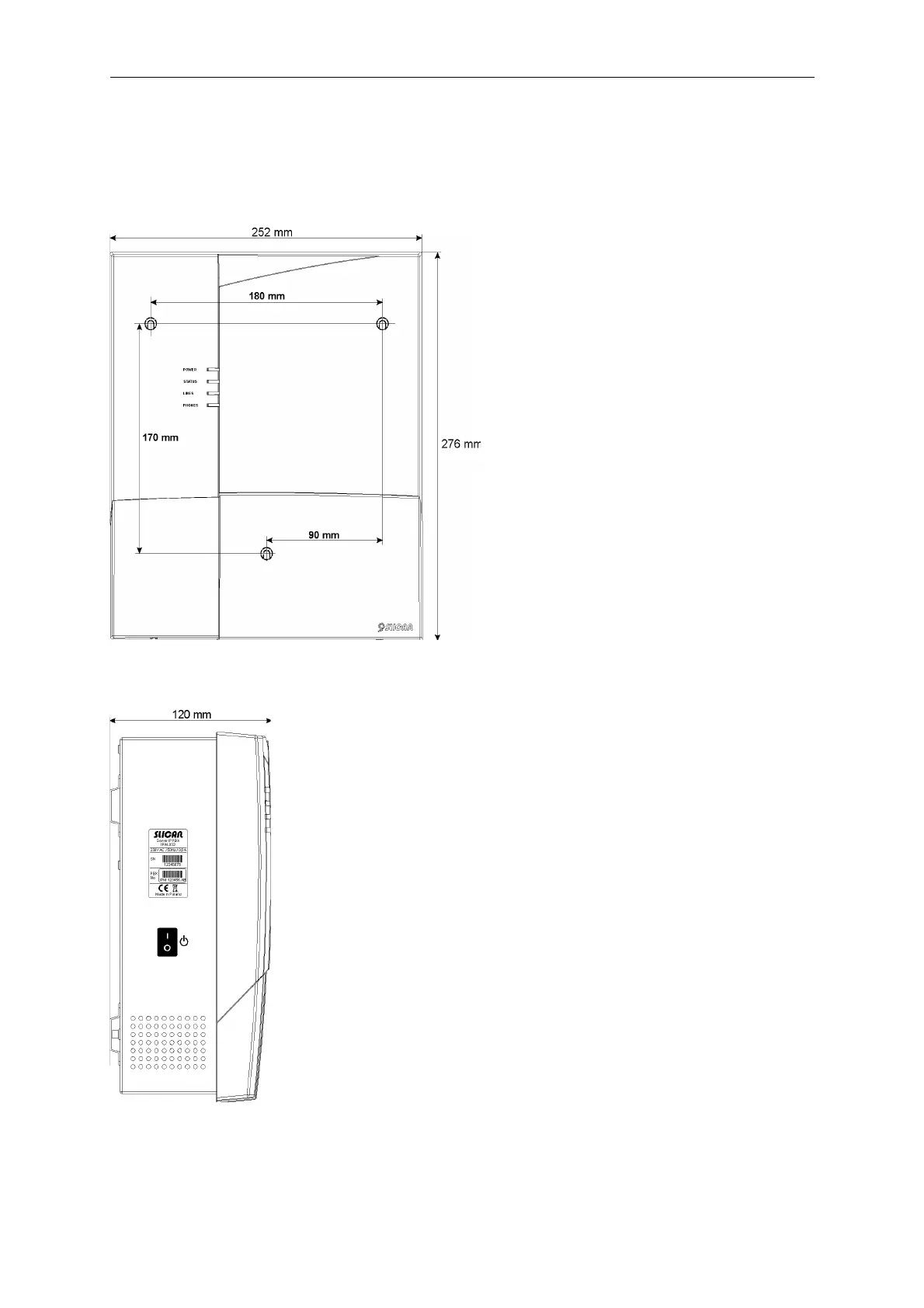

dimensions – width 252 mm, height 276 mm, depth 120 mm
The description of individual control lights is given in the description of the controller card. The figure
above also shows the location of holes for mounting on the wall.
There is a switch and nameplate on the left side of the housing. Fixing handles can be seen at the back
of the housing.
Issue 1.01 13
