Slican IPM-032
4.6 Card for digital system phones
Print name: IPM4CTSv0 Short description of the card:
The digital port cards offer support for Slican digital
system phones from the CTS-102, CTS-202 and CTS-
330 families.
Card marking: IPM4CTS

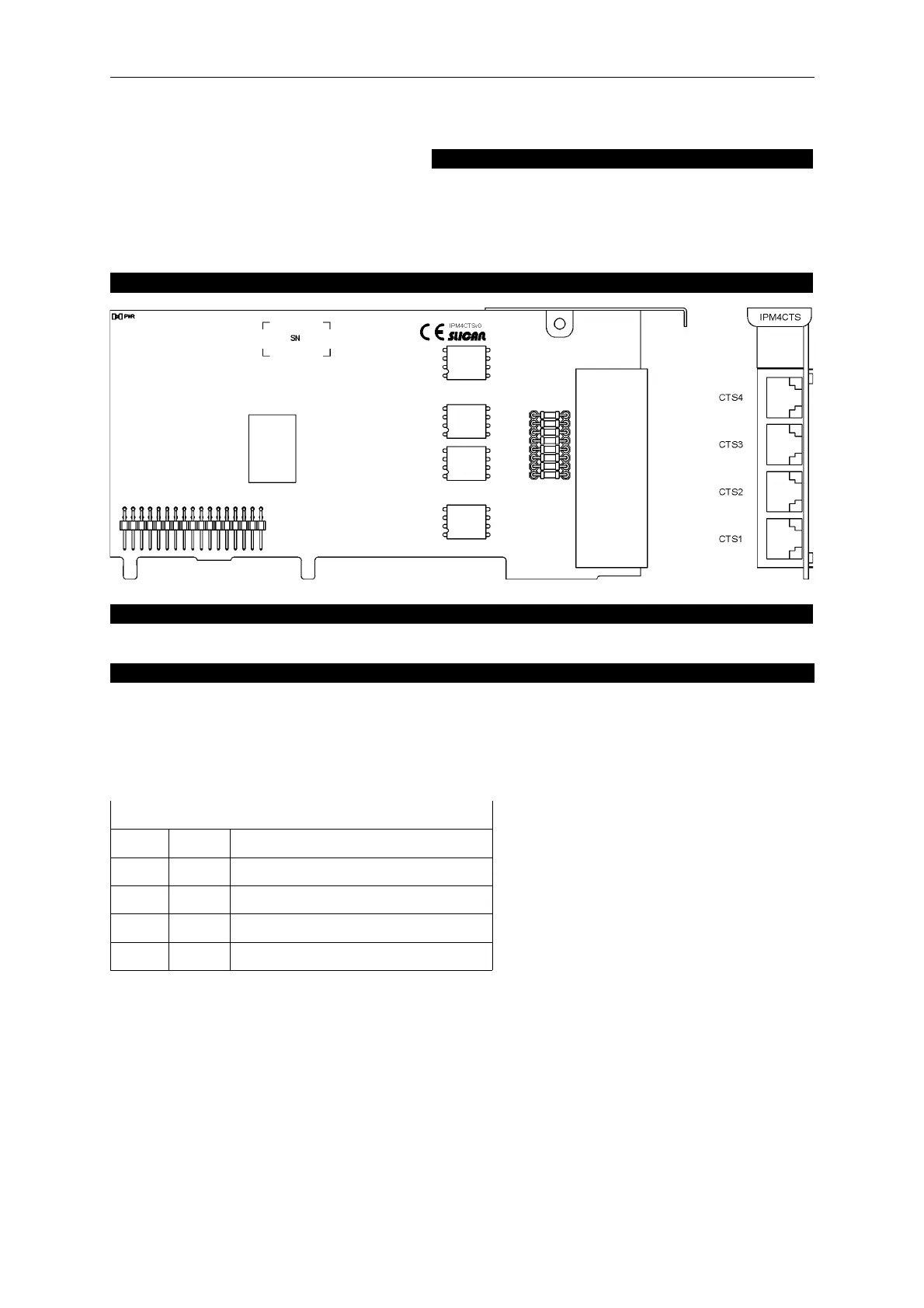

View of the card and its front panel:
Installation of a card in the server:
This type of card can be installed in any of the slots numbered from 1 to 8 (6 for IPM-032.WM).
Outputs:
The phones are connected to RJ45 sockets marked CTS1 .. CTS4. The signal is lead out from the
middle pair of the RJ45 plug, i.e. pins 4 and 5.
Also, socket CTS1 includes additional terminals output from sockets CTS2, CTS3 and CTS4. This
enables the output of signals from the card (e.g. to LSA frames) using a single 4-pair wire, i.e. a
twisted pair cable. The order of pairs conforms to the T568A standard, i.e.
Socket 1CTS
Signal Pins Twisted pair colour
CTS1 4 and 5 blue/white-blue
CTS2 3 and 6 white-orange/orange
CTS3 1 and 2 white-green/green
CTS4 7 and 8 white-brown/brown
Issue 1.01 27
