Technical documentation

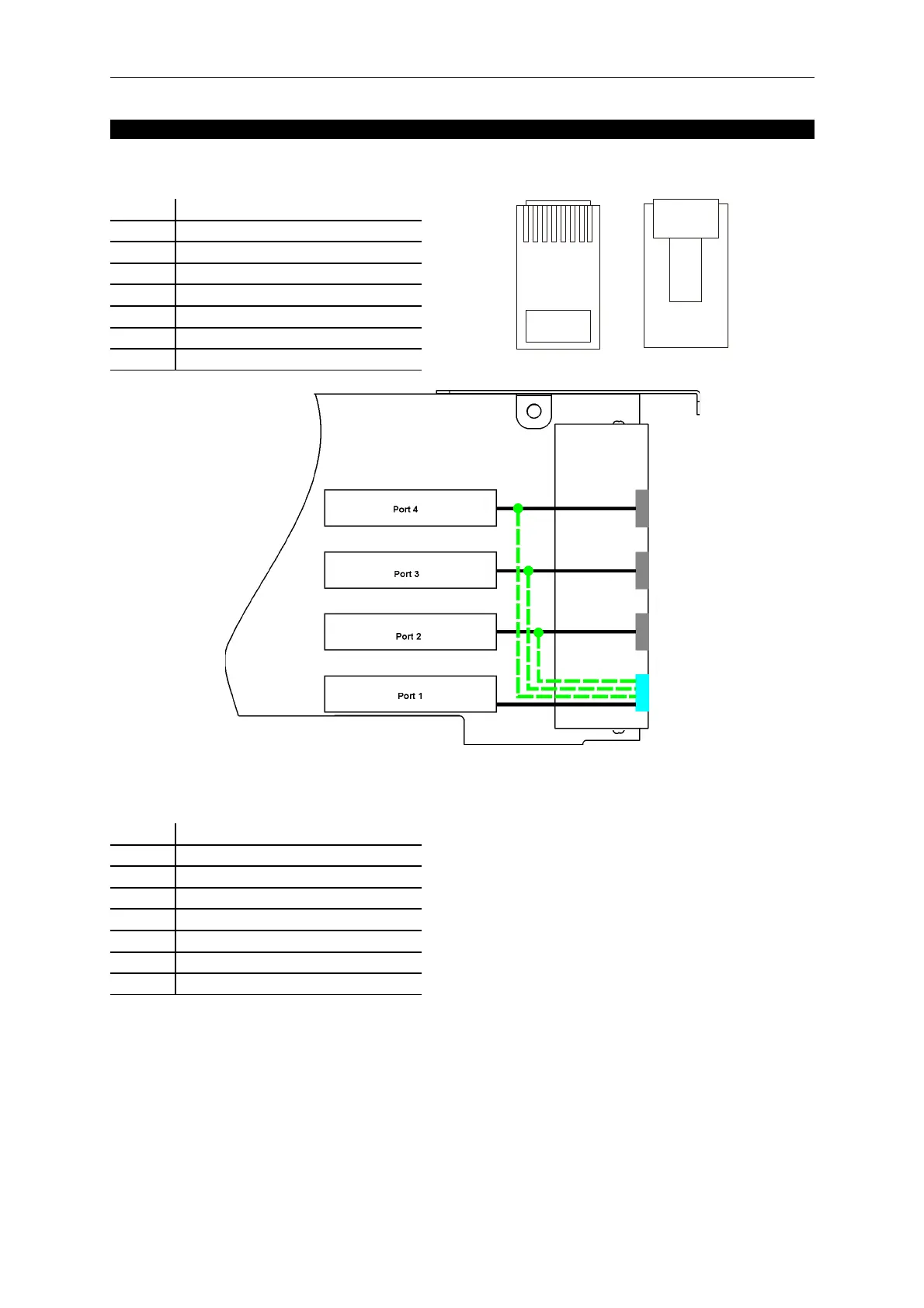

Description of pins in the RJ45 plug:
Port 1
PIN FUNCTION
1 8
1 wire a, port 3
2 wire b, port 3
3 wire a, port 2
4 wire a, port 1
5 wire b, port 1
6 wire b, port 2
7 wire a, port 4
8 wire b, port 4
Ports 2 to 4
PIN FUNCTION
1
2
3
4 Line
5 Line
6
7
8
