Technical documentation
3.3 Batteries
One type of battery capacity is available:

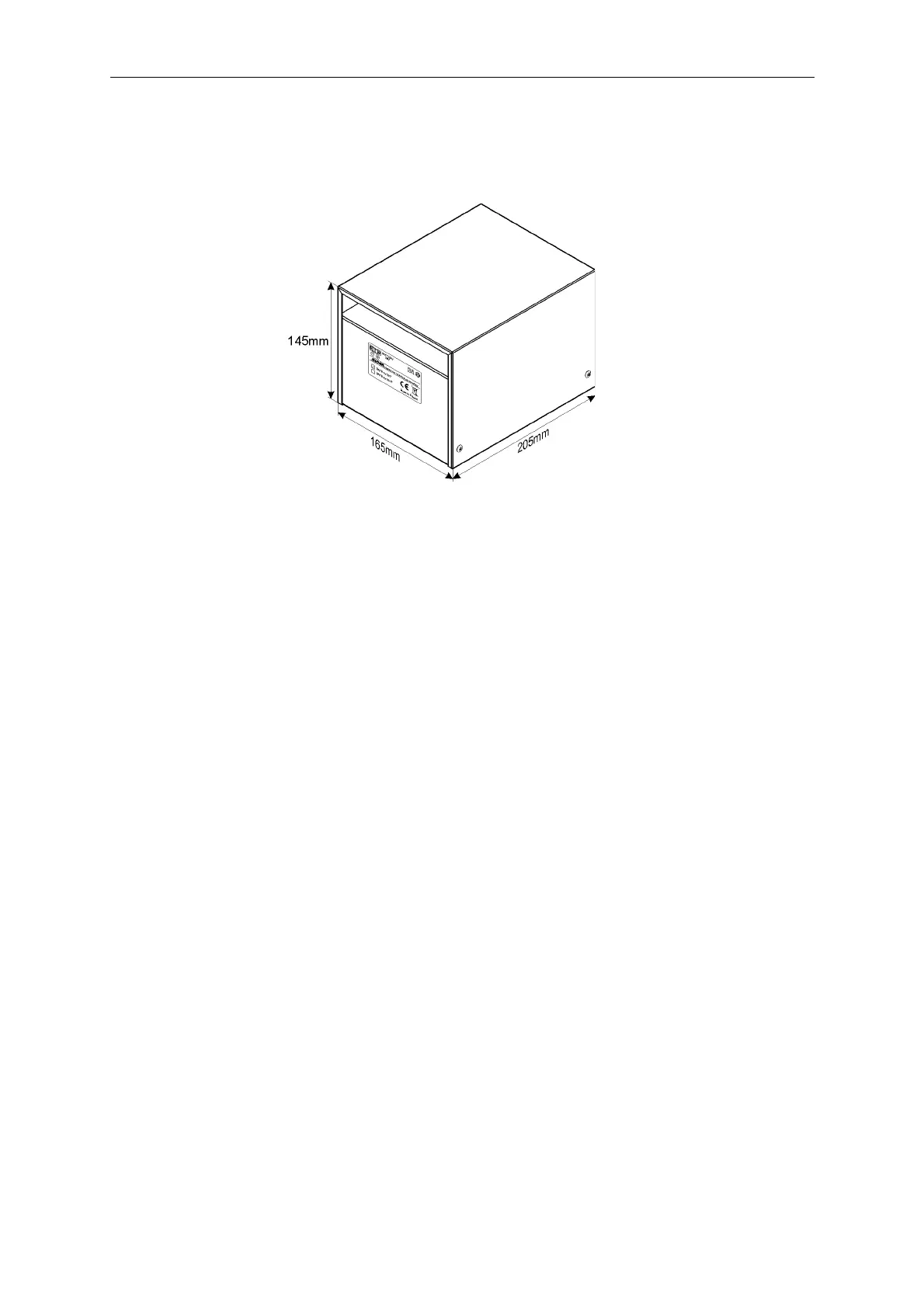

• BATB-3x12/7 - casing for 3x7 Ah batteries dedicated for single shelf servers.
The socket for connecting the power pack is located in the recess over the nameplate Use the two-wire
cable with plug (supplied with the casing) to connect the power pack.
If it is necessary to provide power to a server shelf from a stand-alone battery pack, use cable bundle
BC-ST7.M6/25 with an ST7 plug on one end and M6 cable lugs on the other end.
Place three batteries inside the casing and connect them in series. Batteries can be installed only by a
person with applicable qualifications.
18
