Slican IPM-032
4.8 Analogue internal port card
Print name: IPM4ABv0 Short description of the card:
Internal analogue ports cards support analogue phones
with DTMF or pulse dialling. All cards have the CLIP
function.
Card marking: IPM4AB

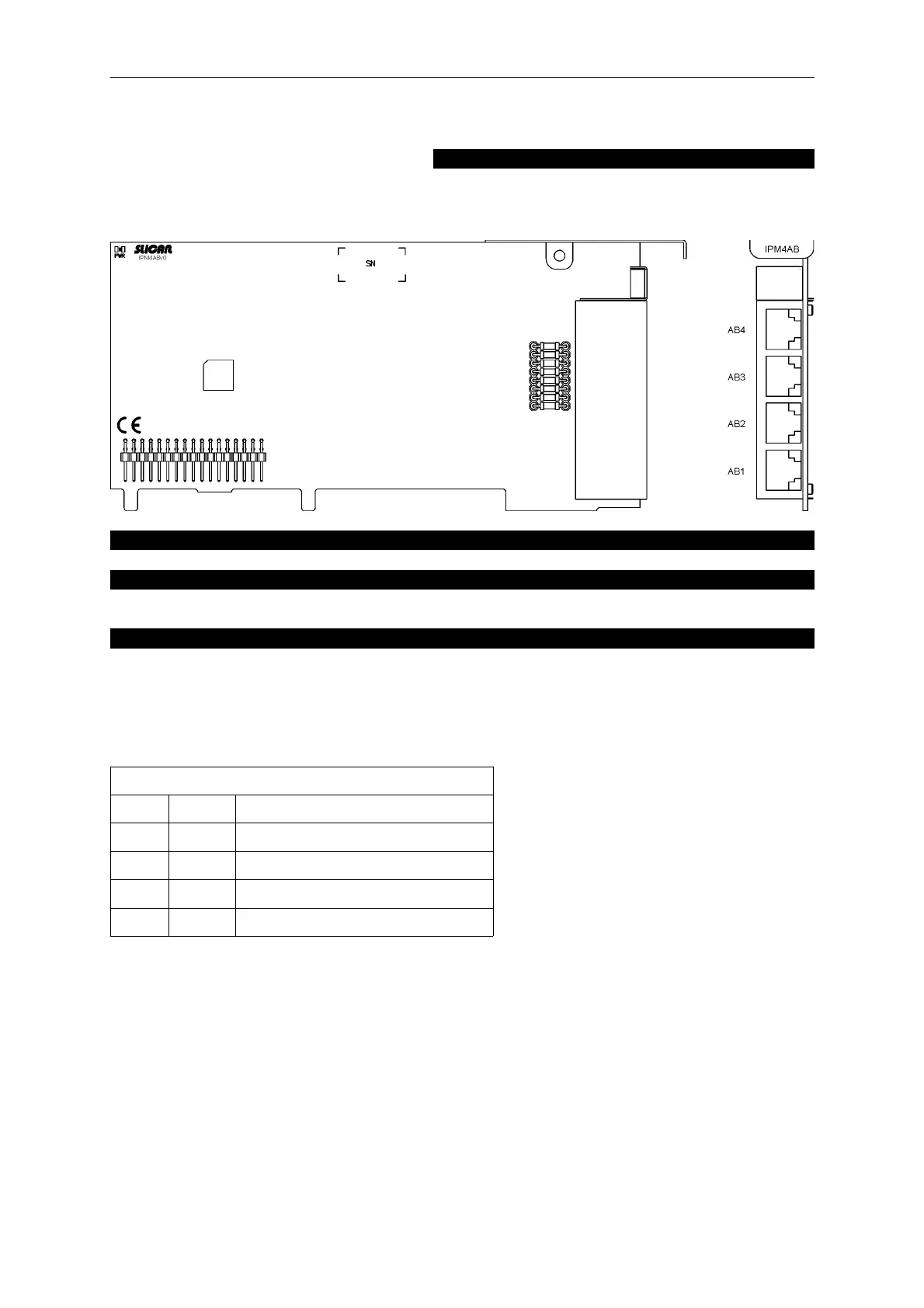

View of the card and its front panel:
Installation of a card in the server:
This type of card can be installed in any of the slots numbered from 1 to 8 (6 for IPM-032.WM).
Outputs:
The phones are connected to RJ45 sockets marked AB1 .. AB4. The signal is lead out from the middle
pair of the RJ45 plug, i.e. pins 4 and 5.
Also, socket AB1 includes additional terminals output from sockets AB2, AB3 and AB4. This enables
the output of signals from the card (e.g. to LSA frames) using a single 4-pair wire, i.e. a twisted pair
cable. The order of pairs conforms to the T568A standard, i.e.
Socket 1AB
Signal Pins Twisted pair colour
AB1 4 and 5 blue/white-blue
AB2 3 and 6 white-orange/orange
AB3 1 and 2 white-green/green
AB4 7 and 9 white-brown/brown
Issue 1.01 31
