Slican IPM-032
4.4 Route card E1 (ISDN-PRA)
Print name: IPM1E1v0 Short description of the card:
E1 route card handles communication with PSTN
networks or acts as a cross link to a linked PBX via
ISDN PRA (30 B+D). The port may also supply power
to the HDSL modem.
Card marking: IPM1E1

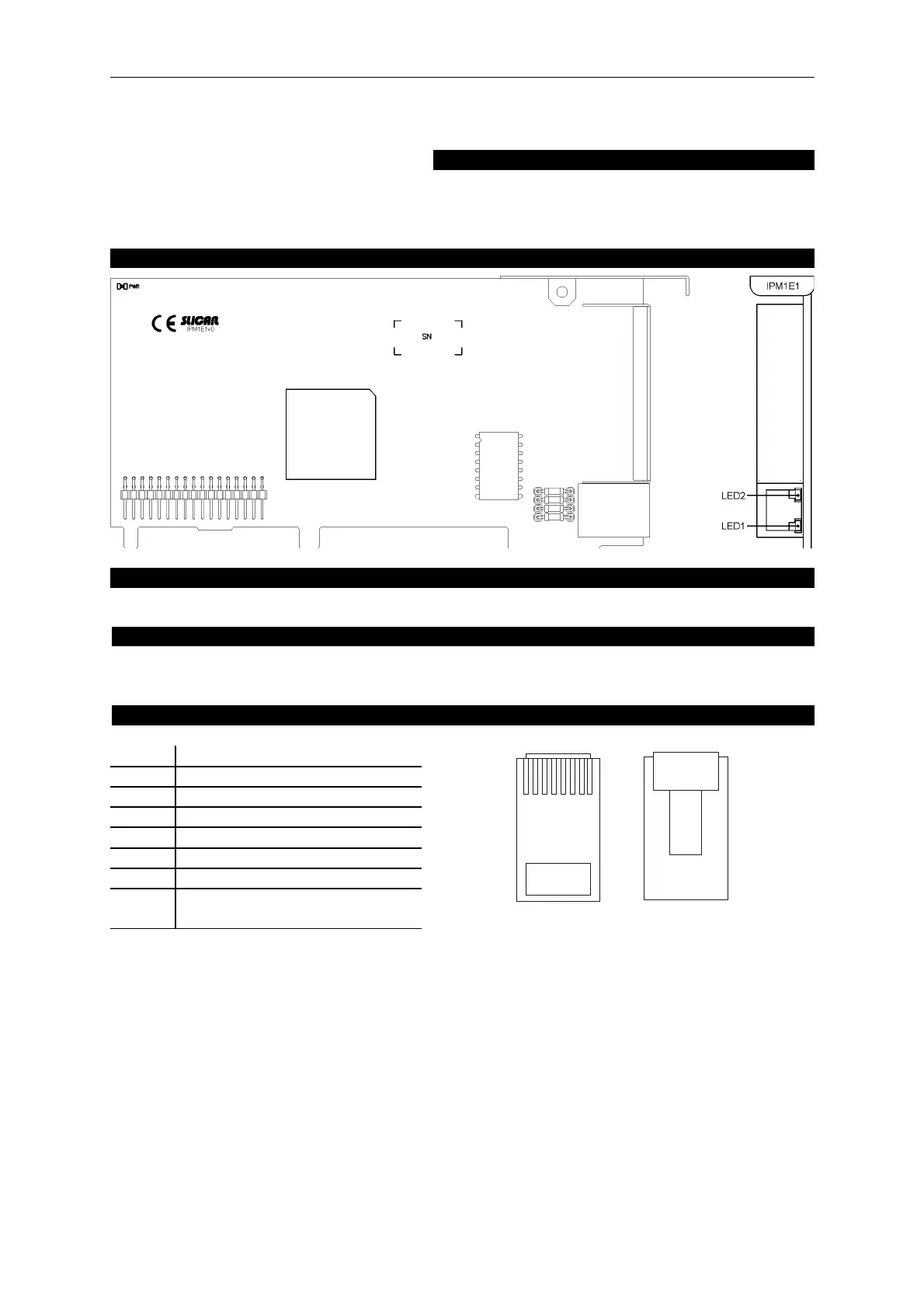

View of the card and its front panel:
Installation of a card in the server:
E1 route cards are installed only in slots 3 or 4.
Description of LEDs on the front panel:
″
LED2 (green): stays lit if the first layer of ISDN is present.
″
LED1 (yellow): stays lit if the second layer of ISDN is present.
Description of pins in the RJ45 plug:
PIN FUNCTION
