Slican IPM-032
connected to a maximum of two Slican CTS-232 consoles, which enables the extension of the number
of quick dial keys to 72. In the case of CTS-102/CTS-102.IP/CTS-330 phones it is impossible to
extend the number of quick dial keys by connecting CTS-232 consoles.
Connecting more consoles (three to five) always requires an optional power pack. The consoles may
be powered using a CTS-202 system phone with an optional power pack or directly from an optional
power pack.

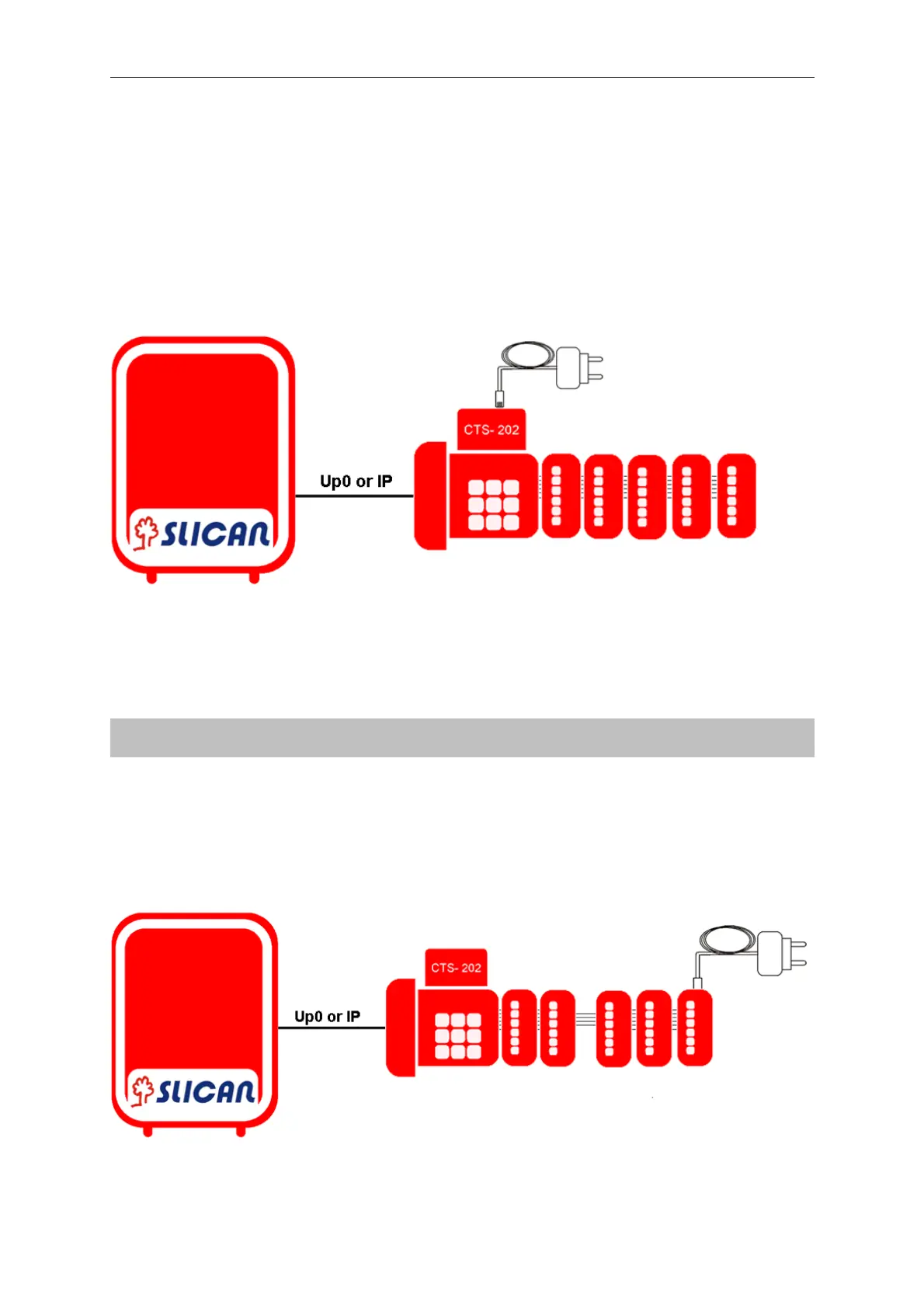

Several possible connection variants for system phones with the server are shown below.
6.1.1 Variant 1 – consoles powered by a power device
connected to CTS
• A system phone connected to server with a standard line phone cable.
• System phone and consoles powered by an optional power pack.
• The phone and subsequent consoles are connected using the standard connection cable
supplied with the console (6-wire).
Note: Consoles cannot be used in the case of a loss of 230V~ power. Using a phone might be difficult
due to the high power consumption of such a set.
6.1.2 Variant 2 – two consoles powered by CTS, the remaining
by a power device
• CTS-202 is connected to the two consoles at the start with a 6-wire cable, (provides power to
phone and to the two of the first consoles from server).
• The three consoles are connected to the set with a 4-wire cable (without power).
