4.11 Shelf power supply modules
4.11.1 Power supply card IPM1PS
Module name: IPM1PS Short description of the card:
The card is responsible for supplying the correct
voltages necessary for server operation.
Print name: IPM1PSv0

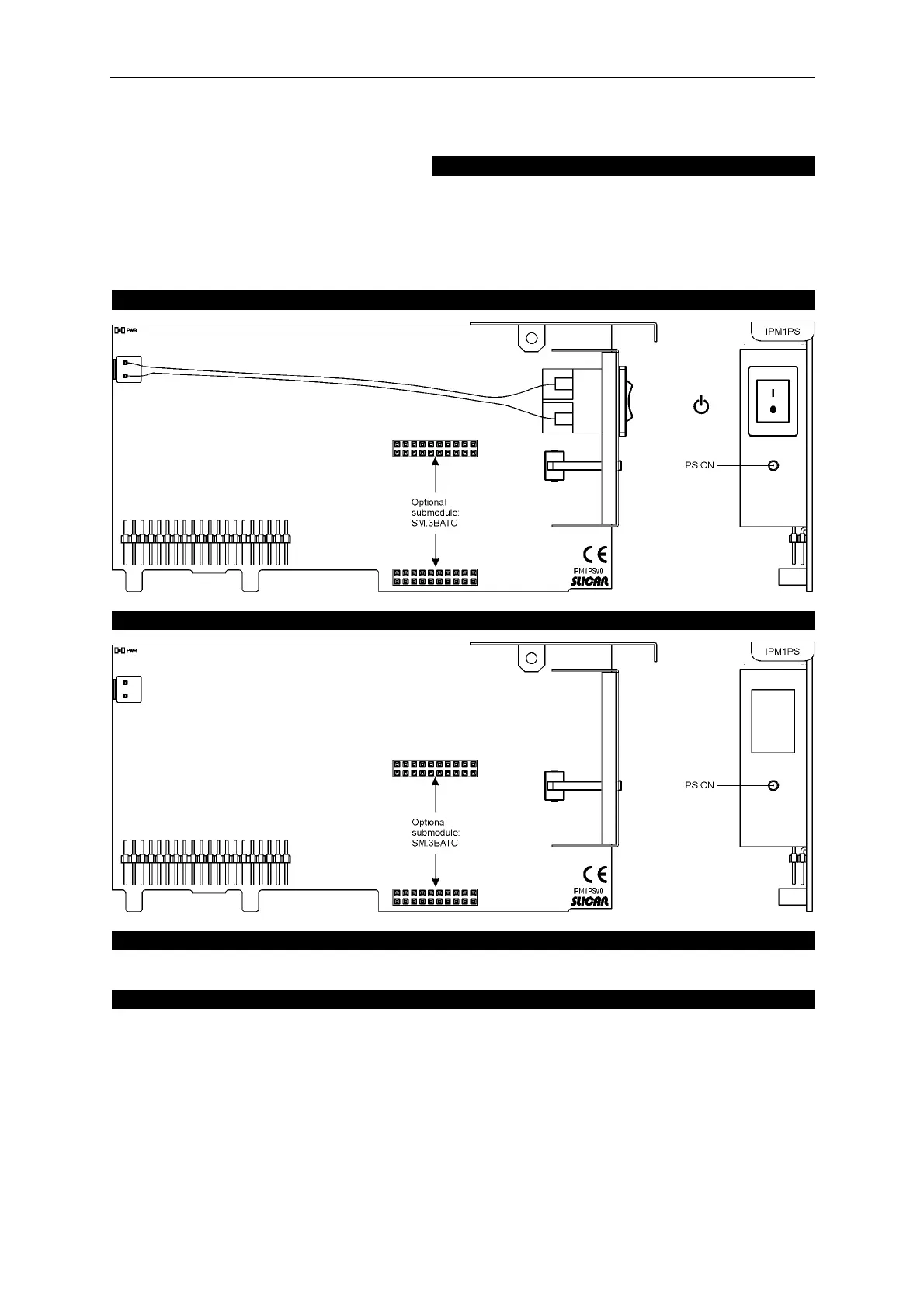

View of the card and front panel (for server version 2U)
View of the card and front panel (for server version WM)
Card installation:
The controller card is installed in the base board slot marked Slot PS.
Description of LEDs on the front panel:
LED PS ON
• lit – server active, powered from a 230V system,
• blinks (0.5s/0.5s) – server active, powered from accumulators,
• off – server turned off.
