Slican IPM-032 - Variant 3 - All Consoles Powered by a Power Device; Compatibility of Power Supply Device for System Phones and Consoles

Technical documentation
• The connections between these three consoles are made using a standard 6-wire cable.
• These three consoles are powered from an additional power pack which is connected to the
console's output socket (OUT).
Note: Consoles cannot be used in the case of a loss of 230V~ power. Using a phone might be difficult
due to the high power consumption of such a set. The system phone can be still used in the case of a
power cut.

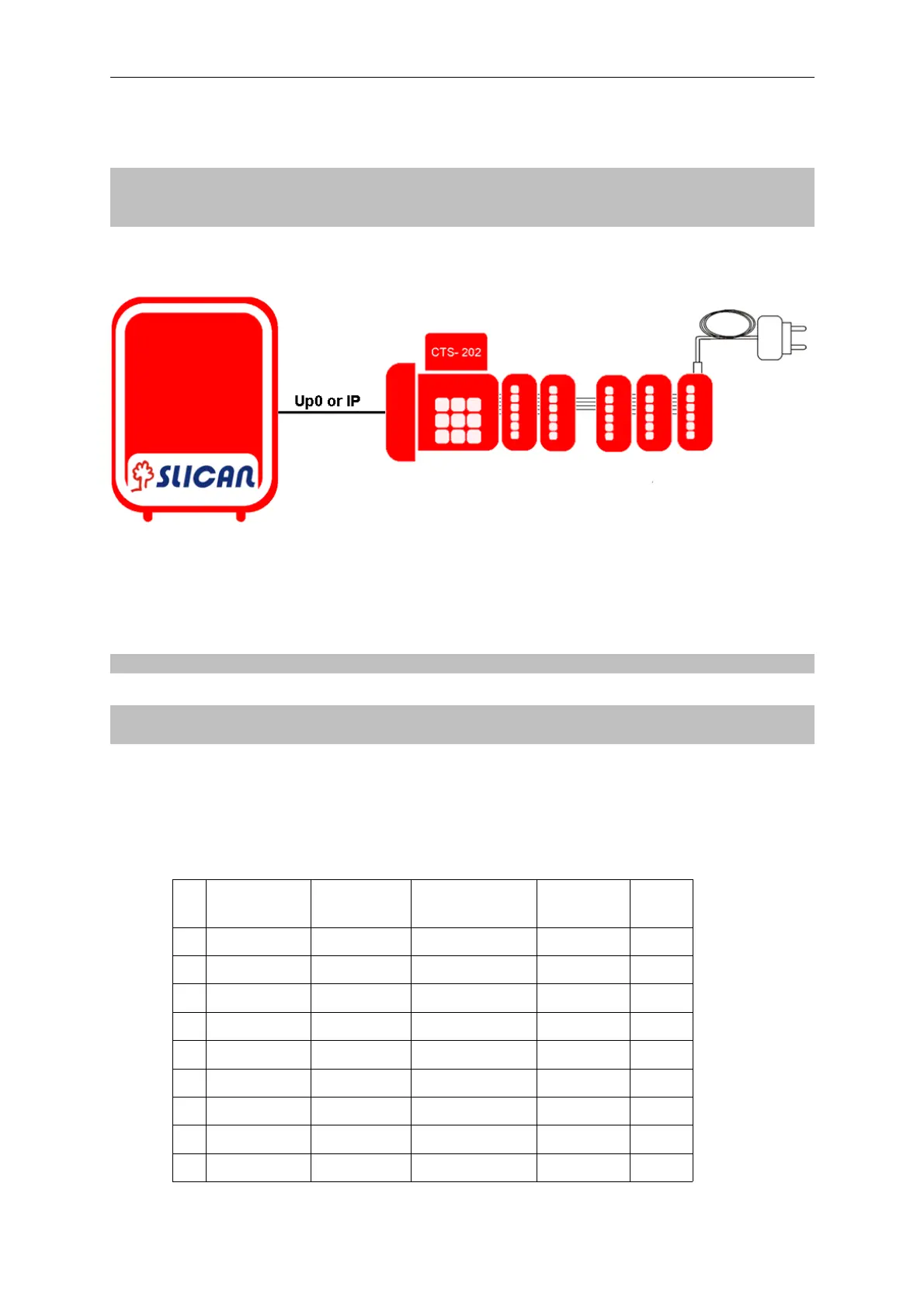

6.1.3 Variant 3 – All consoles powered by a power device
• A system phone connected to the consoles using a 4-wire cable (phone powered by server).
• The consoles are connected to the phone with a 4-wire cable (without power).
• The connections between the consoles are made using a standard 6-wire cable.
• These consoles are powered from an additional power pack which is connected to the consol's
output socket (OUT).
Note: The system phone can be still used during a power cut.
When the power supply is switched on, the additional consoles will automatically connect to the phone
in each connection configuration.
6.2 Compatibility of power supply device for system phones
and consoles
No
.
System
telephone
Power pack
36V/160mA
Power pack
12V/1.25A RJ11
Power pack
12V/1.25A
PoE
1 CTS-102.HT + - - -
2 CTS-102.CL + - - -
3 CTS-102.IP + + - -
4 CTS-202.CL + - - -
5 CTS-202.BT + - - -
6 CTS-202.IP + - - +
7 CTS-203.IP - - + +
8 CTS-330 - - + +
9 Consoles >2 + + - -
42
