3 Slican IPM-032 server base elements
3.1 Version 2U
• installation method – installation in 19" cabinets.
• access to extension cards – after opening a drawer and removing cover
• dimensions – 2U (width 483 mm, height 91 mm, depth 310 mm).
• There is a “Shelf NO” field on the front panel located between the power pack and controller
module for writing the number of the shelf
• Slot numbers are placed on the front panel, next to the card type, to facilitate navigation
between socket numbers.
The back of the housing includes power socket, ground terminal, ventilation openings and a
nameplate.
The following slots and outputs can be found on the base plate, from the left:
• PS slot – for installing a shelf power supply card
• PU slot – for installing the controller
Issue 1.01 9

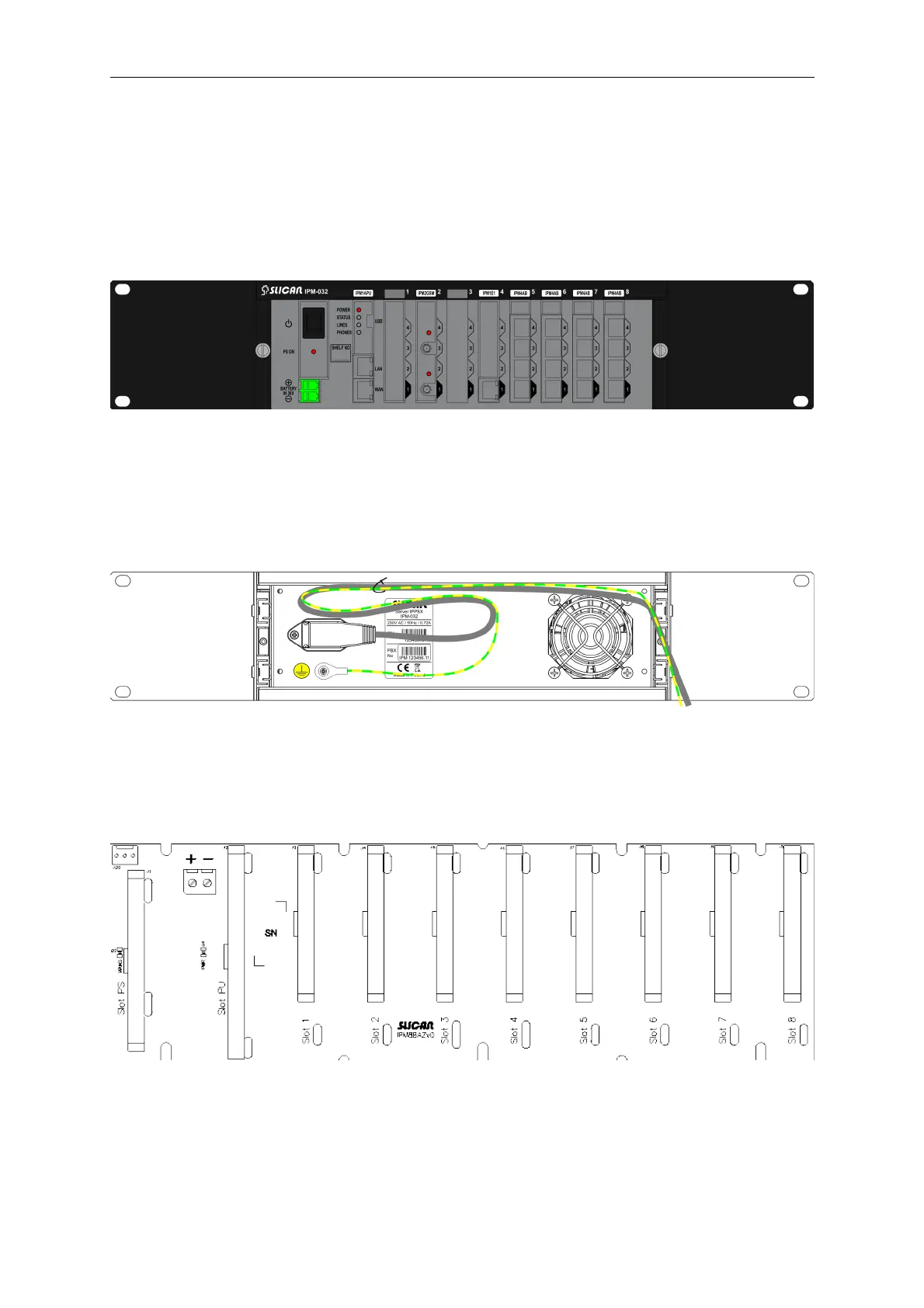

Figure 3 1: IPM-032.A8x4.2U – front view of housing partially populated with cards
