SMART MX 04 User Manual

Remote Control
12 EN Smart MX 04
Rear Side With Modulator (optional)

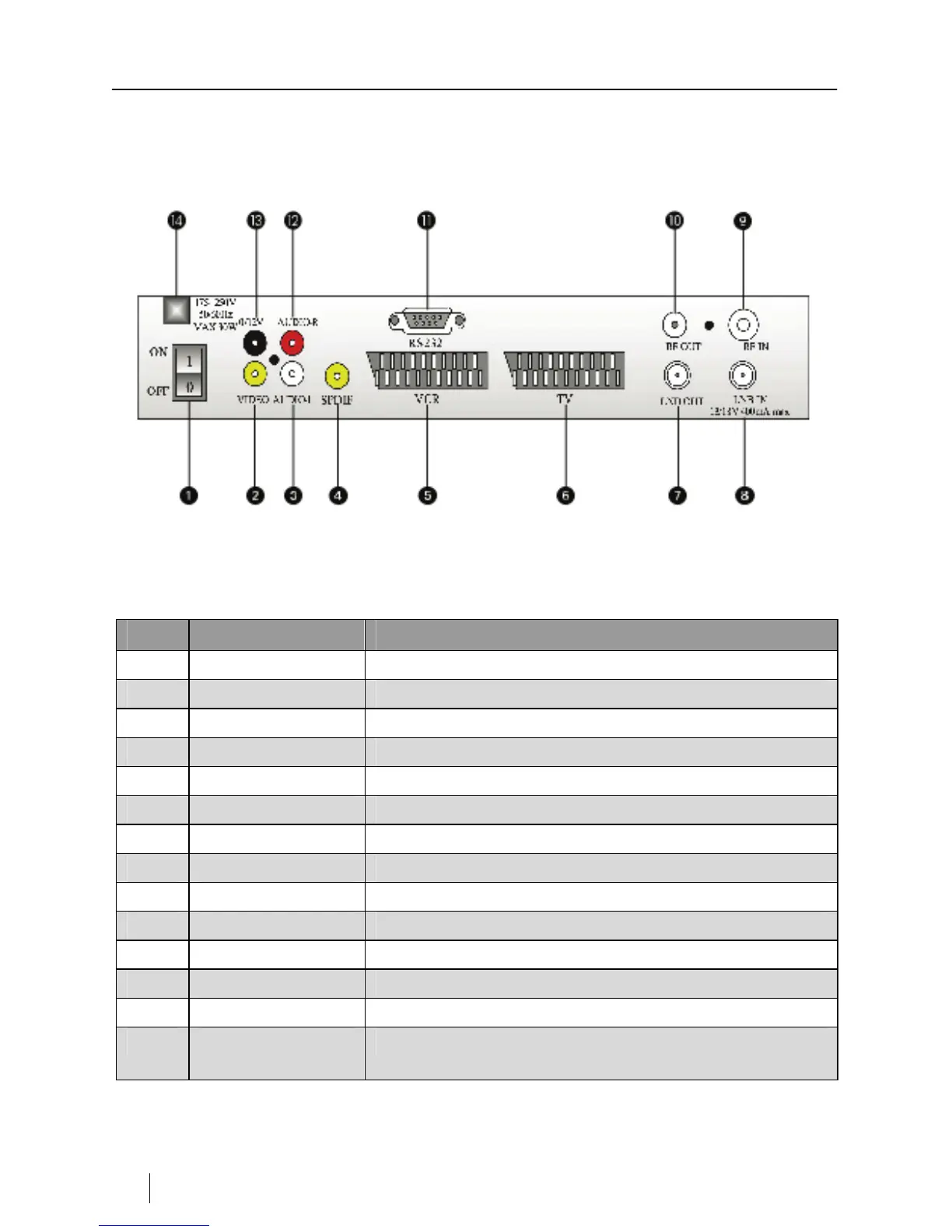

Figure 2: rear side of receiver
No. Symbol Description
1 POWER On / Off switch for main supply
2 VIDEO Video output (Composite)
3 AUDIO-L Audio output left
4 SPDIF Digital output
5 VCR SCART output for Video
6 TV SCART output for TV
7 LNB OUT Satellite signal loop through out
8 LNB IN Digital satellite signal input
9 RF-IN Antenna input
10 RF-OUT Antenna output
11 RS232 Serial Low-Speed-Interface
12 AUDIO-R Audio output right
13 0/12V 0/12 Volt-output
14
175 - 250 V AC,
50/60 Hz
mains connection

SMART MX 04 Specifications

General

Brand	SMART
Model	MX 04
Category	Receiver
Language	English
