3.4 How to install
(1) How to install
There are two types of controllers; screw mount type and DIN rail mount type.
The followings are the descriptions on how to install each type:
(2) Ground wire connection
As shown in the diagram below, tighten the ground wire with a screw.
Caution
The M4 screw, cable with crimping terminal, and toothed washer should be obtained separately.
Ground the controller to shield it from electric noise.
Controller
M4 screw
Cable with crimping terminal
Toothed washer

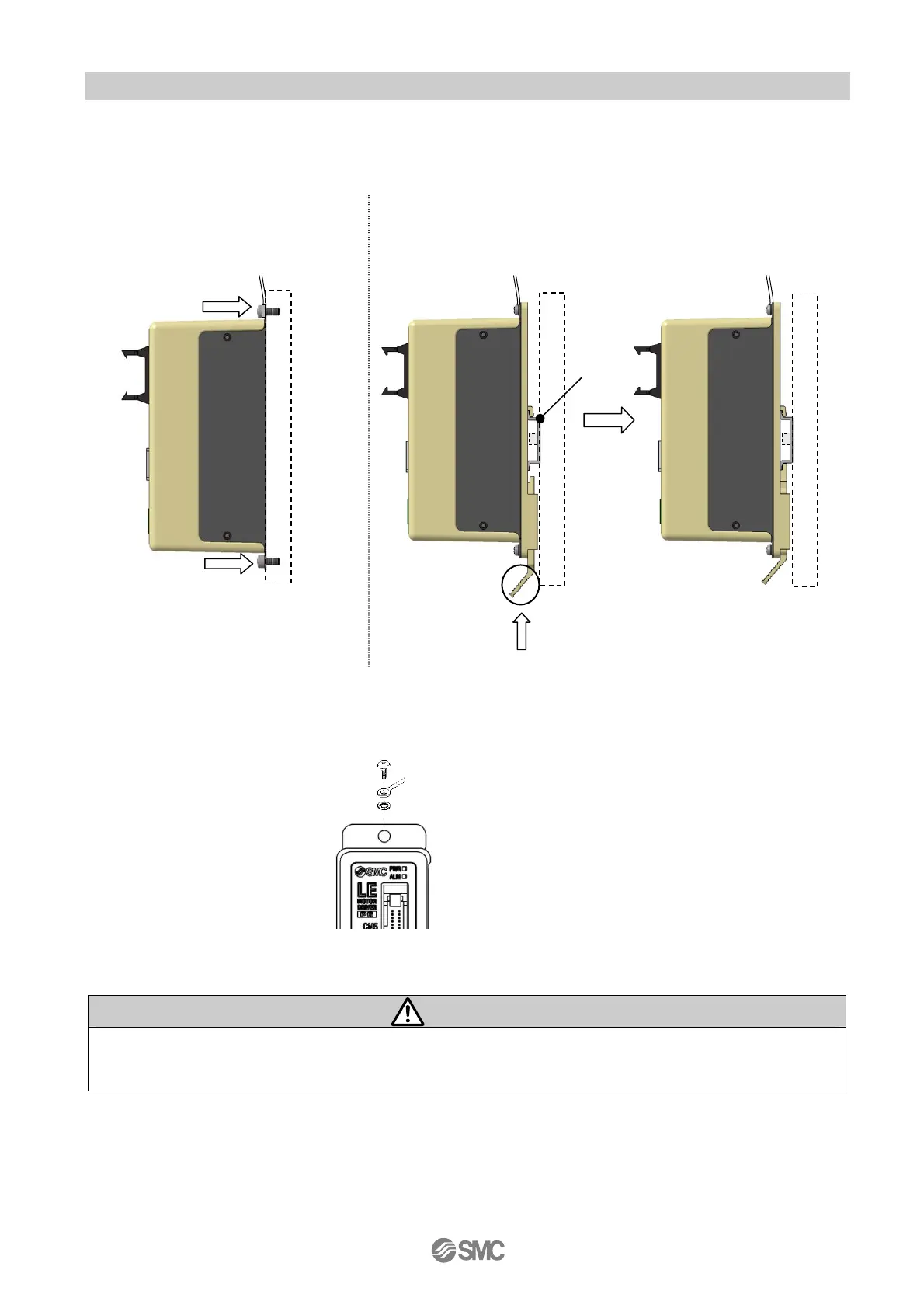

[1] Screw mount type (LECP6-)
(Installation with two M4 screws)
[2] DIN rail mount type (LECP6D-)
(Installation with the DIN rail)
Screw direction
Screw direction
Ground wire
DIN rail
DIN rail is locked.
Ground wire
Ground wire
A
Hook the controller on the DIN rail and
press the lever of section A in the arrow
direction to lock it.
