SMC Corporation LECP6 Series User Manual

- 41 -
[3] Pushing operation
- Procedures-
(1) Input step dat
a No. (IN0 to IN5)

(2) DRIVE is turned ON. (OUT0-5 is turned
off.)
Scan the step data number (from IN0 to
IN5).
* After this, if DRIVE is turned OFF, the step
data number will be output (from the outputs
OUT0 to OUT5).

(3) BUSY is turned ON.

(4) When INP output is turned ON and BUSY
is turned OFF, the pushing operation will be
completed (the actuator generates the force
larger than that specified in “TriggerLV” of the
step data).
Powe r
IN0～5
SVON
DRIVE
OUT0～5
BUSY
SVRE
SETON
INP
External Lock
Output
Input
Speed
0mm/s
24V
0V
OFF
ON
ON
OFF
ON
OFF
･
･
・
・
･
･
･
･
･
･
･
･
･
Min15m
s

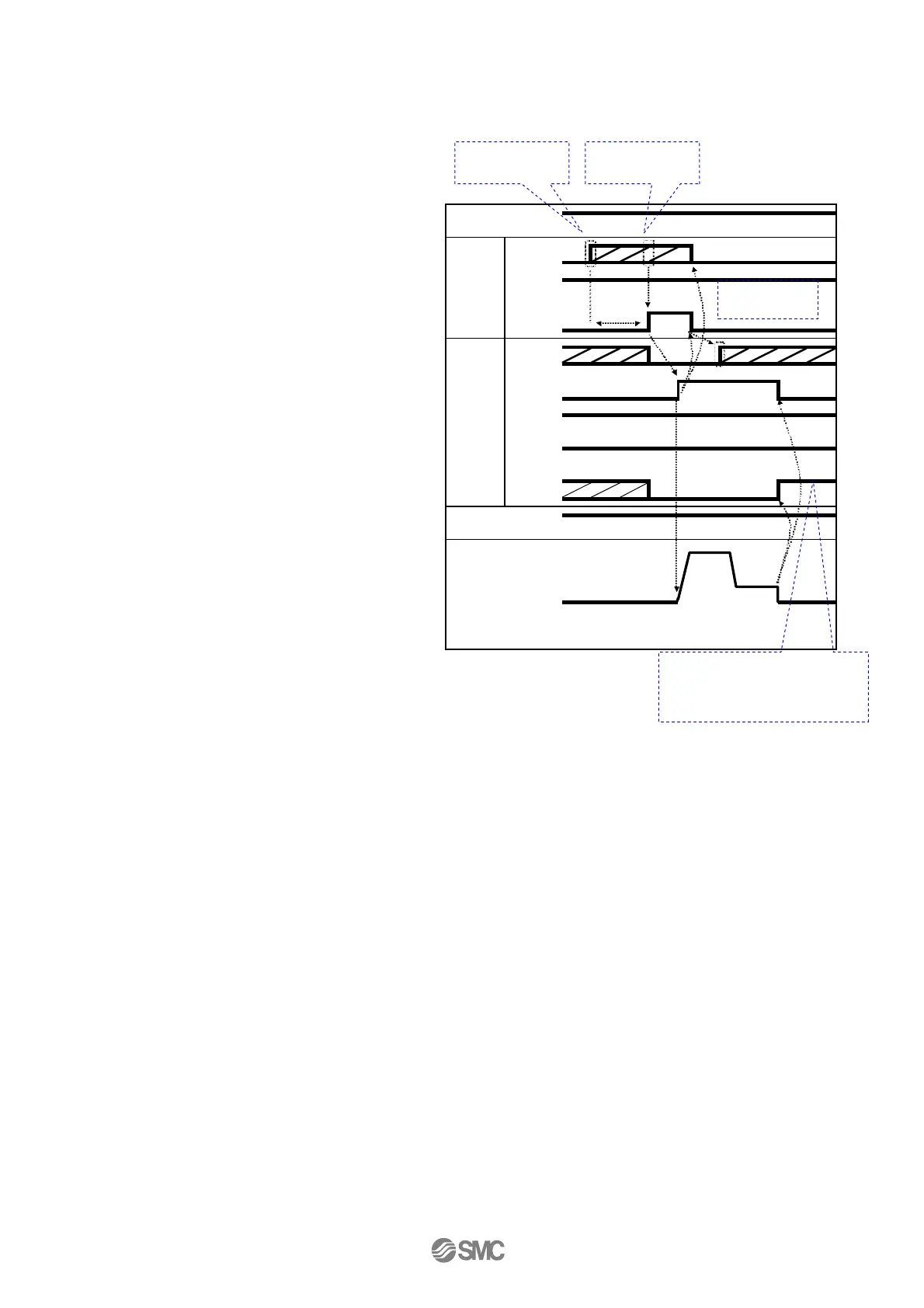

- Timing chart -
If the actuator is within the “In
position” range, INP will be turned
ON but if not, it will remain OFF.
Output the
ste
p
data no.
Scan the step
data no.
Input the step
data no.
