SMC Corporation LECP6 Series User Manual

- 23 -

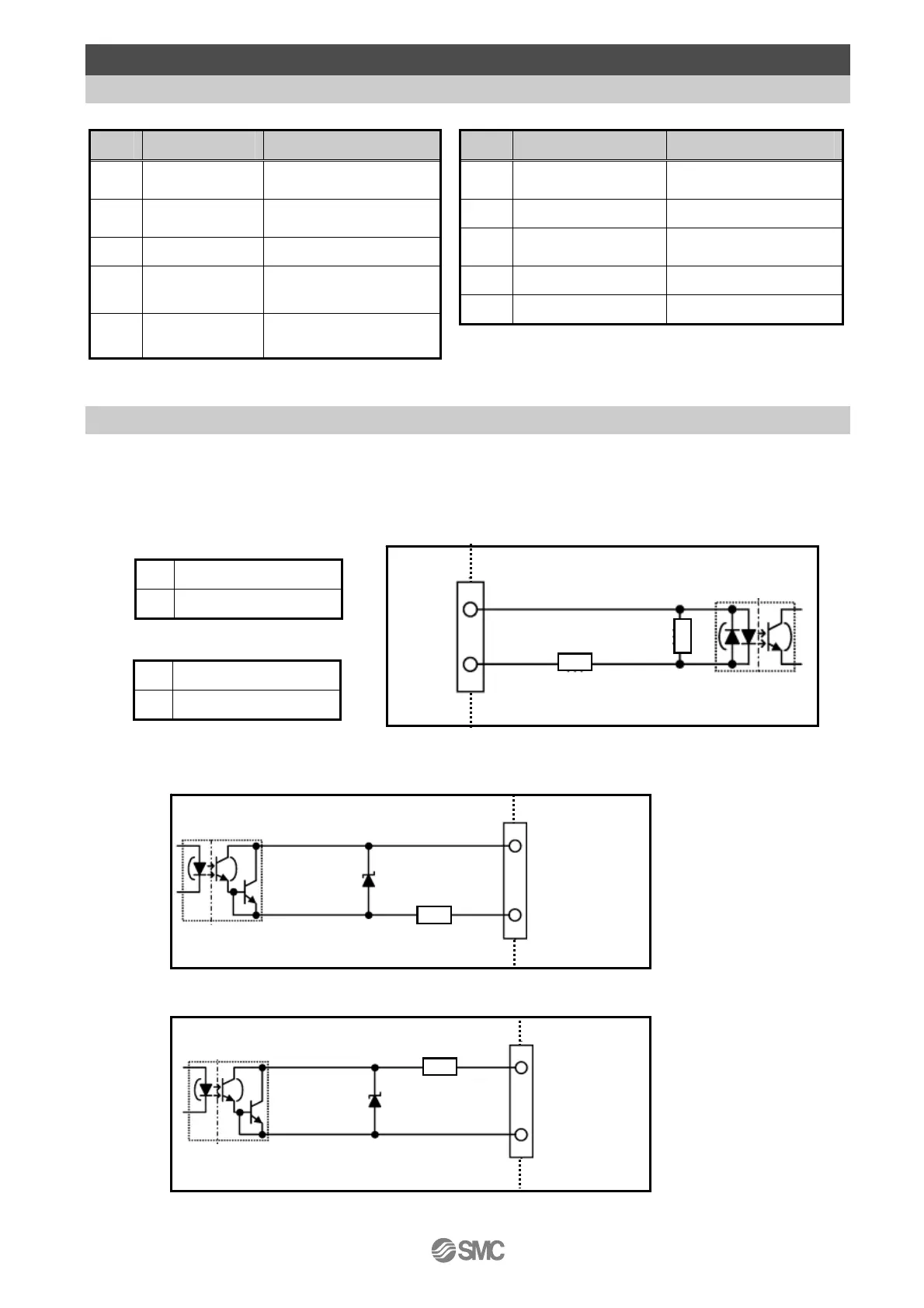

6. CN5: Parallel l/O Connector
6.1 Parallel I/O specifications
* Input specifications * Output specifications
6.2 Parallel I/O type (NPN/PNP type)
There are two types of parallel I/O for this controller: NPN type (LECP6N-) and PNP type
(LECP6P-).
(1) Parallel I/O input circuit (same for both NPN and PNP type)
(2) Parallel I/O output circuit
No. Item Specification
1 Output circuit
Internal circuit and photo
coupler Isolation
2 Number of outputs 13 outputs
3
Max. voltage between
terminal
30VDC
4 Max. output current 10mA supply/sink
5 Saturation voltage 2.0V (Max.)
No. Item Specification
1 Input circuit
Internal circuit and photo
coupler isolation
2
Number of
inputs
11 inputs
3 Voltage 24VDC +/- 10%
4
Input current
when ON
3.5mA±20% (at 24VDC)
5
Input Low Voltage
Threshold
11V @ 1.5 mA
NPN type
(a)
(b)
Inside of the controller
(a) 「COM+」〈A1〉
(b)
IN0〈A3〉-SVON〈A13〉
PNP type
(a) 「COM-」〈A2〉
(b)
IN0〈A3〉-SVON〈A13〉
NPN type
PNP type
Outside
OUT0〈B1〉
-ALARM〈B13〉
OUT0〈B1〉
-ALARM〈B13〉
「COM-」
〈A2〉
「COM+」
〈A1〉
Inside of the controller Outside
Inside of the controller Outside
10
10
6.8k
1k
