SMC Networks EX245-FPS1 User Manual

- 30 -
No.EX##-OMY0004

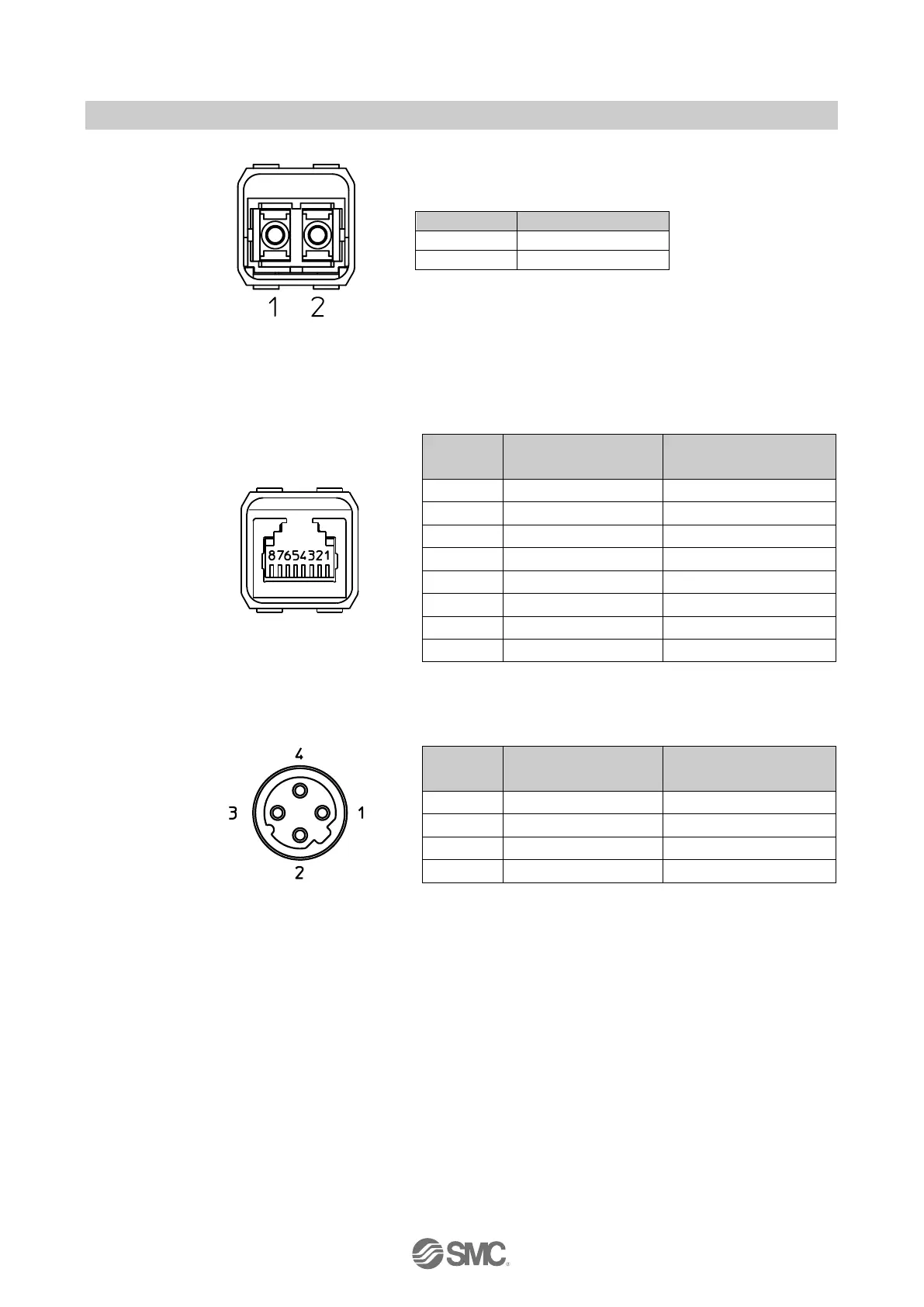

PROFINET communication
Pin
Remarks
1
TX Transmit Data
2
RX Receive Data
(View of the SCRJ Socket)
Fig. 7-8 Pin allocation of PROFINET SCRJ communication connectors for EX245-FPS1
Pin
Port1 (XF1)
Port type: MDI
Port2 (XF2)
Port type: MDI-X
1
TD+ Transmit Data
RD+ Receive Data
2
TD- Transmit Data
RD- Receive Data
3
RD+ Receive Data
TD+ Transmit Data
4
-
-
5
-
-
6
RD- Receive Data
TD- Transmit Data
7
-
-
8
-
-
Fig. 7-9 Pin allocation of PROFINET RJ45 communication connectors for EX245-FPS2
Pin
Port1 (XF1)
Port type: MDI
Port2 (XF2)
Port type: MDI-X
1
TD+ Transmit data+
RD+ Receive data+
2
RD+ Receive data+
TD+ Transmit data+
3
TD- Transmit data-
RD- Receive data-
4
RD- Receive data-
TD- Transmit data-
Fig. 7-10 Pin allocations of PROFINET communication connectors for EX245-FPS3
(View of the RJ45 Socket)
M12 4pins socket D-coded
connector
