SMC Networks HRR012-A*-20 Series User Manual

HRX-OM-W002-A
Chapter 9 Documents
HRR Series 9.5 Heating capacity
9-13
9.5 Heating capacity
9.5.1 HRR012-A/W-20,HRR018-A/W-20

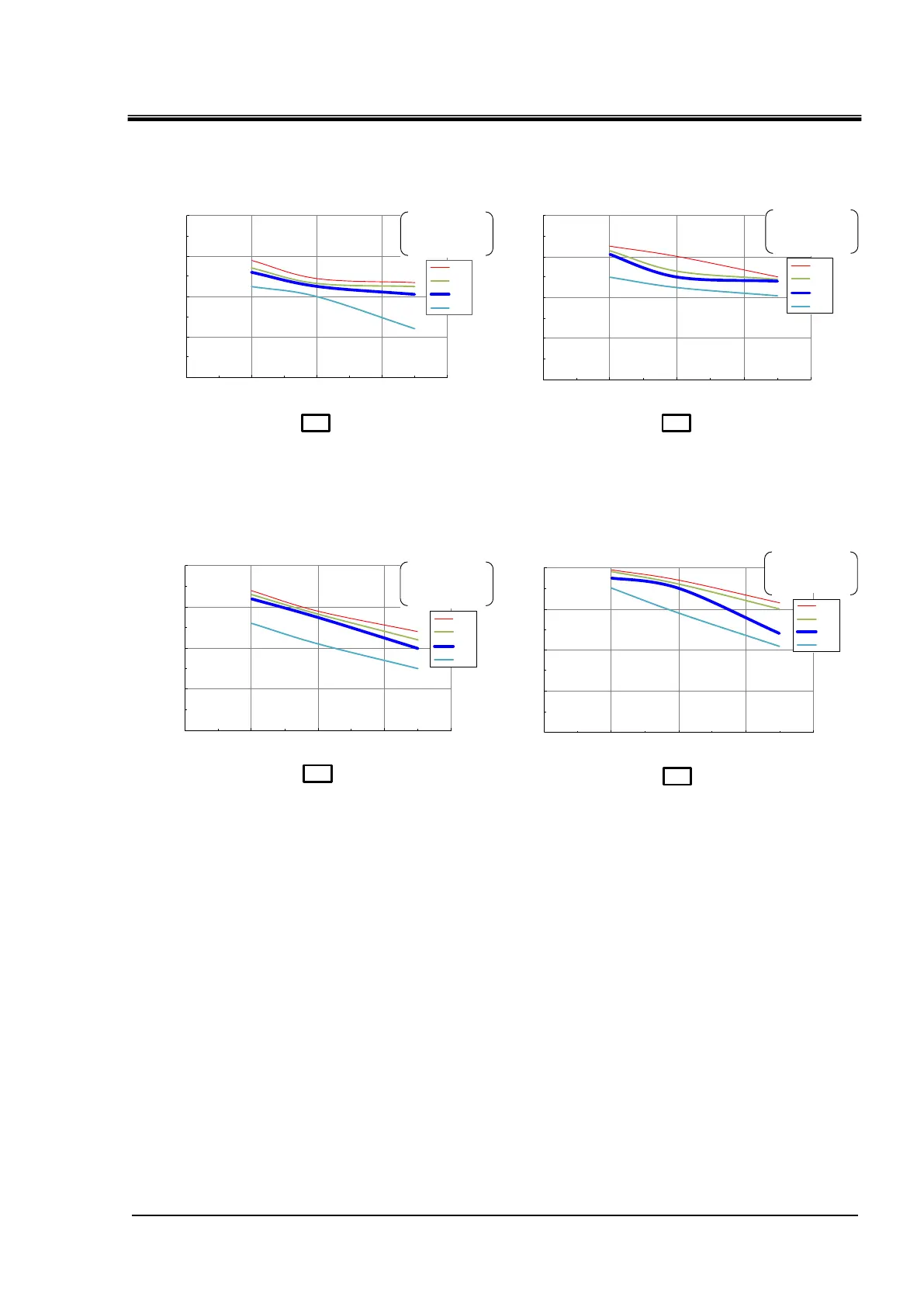

Fig 9-11 Heating capacity (HRR012-A/W-20，HRR018-A/W-20)
9.5.2 HRR024-A/W-20,HRR030-A/W-20
Fig 9-12 Heating capacity (HRR024-A/W-20,HRR030-A/W-20)
0
200
400
600
800
0 10 20 30 40
Heating capacity [W]
Circulating fluid temperature [℃]
50Hz
40℃
32℃
25℃
5℃
Ambient temp.
or
Facility water temp.
0
200
400
600
800
0 10 20 30 40
Heating capacity [W]
Circulating fluid temperature [℃]
60Hz
40℃
32℃
25℃
5℃
Ambient temp.
or
Facility water temp.
0
200
400
600
800
0 10 20 30 40
Heating capacity [W]
Circulating fluid temperature [℃]
50Hz
40℃
32℃
25℃
5℃
Ambient temp.
or
Facility water temp.
0
200
400
600
800
0 10 20 30 40
Heating capacity [W]
Circulating fluid temperature [℃]
60Hz
40℃
32℃
25℃
5℃
Ambient temp.
or
Facility water temp.
