Chapter 3 Transport and Setting Up
HRR Series 3.3 Installation
3.3 Installation
3.3.1 Mounting
How to mount the product
1. When mounting the prouduct to a cabinet, use a design which shall hold the weight at
the bottom. Ensure safety with transportation test if the product is to be installed on a
transportation device such as atrailer. Mount the product using the fixing holes in the front of
the product. Use M5,M6 screws (bolts) or equivalent to the fix the product.
Do not drag this product after mounting, as the feet may be damaged. (option -Y)
2. In the case of air cooling type, this product sucks air from the front and discharges it to
the back. Please do not block the suction and the discharge air. Please do not install in
a sealed place. (Refer to 3.2.3 "Installation and maintenance space".)

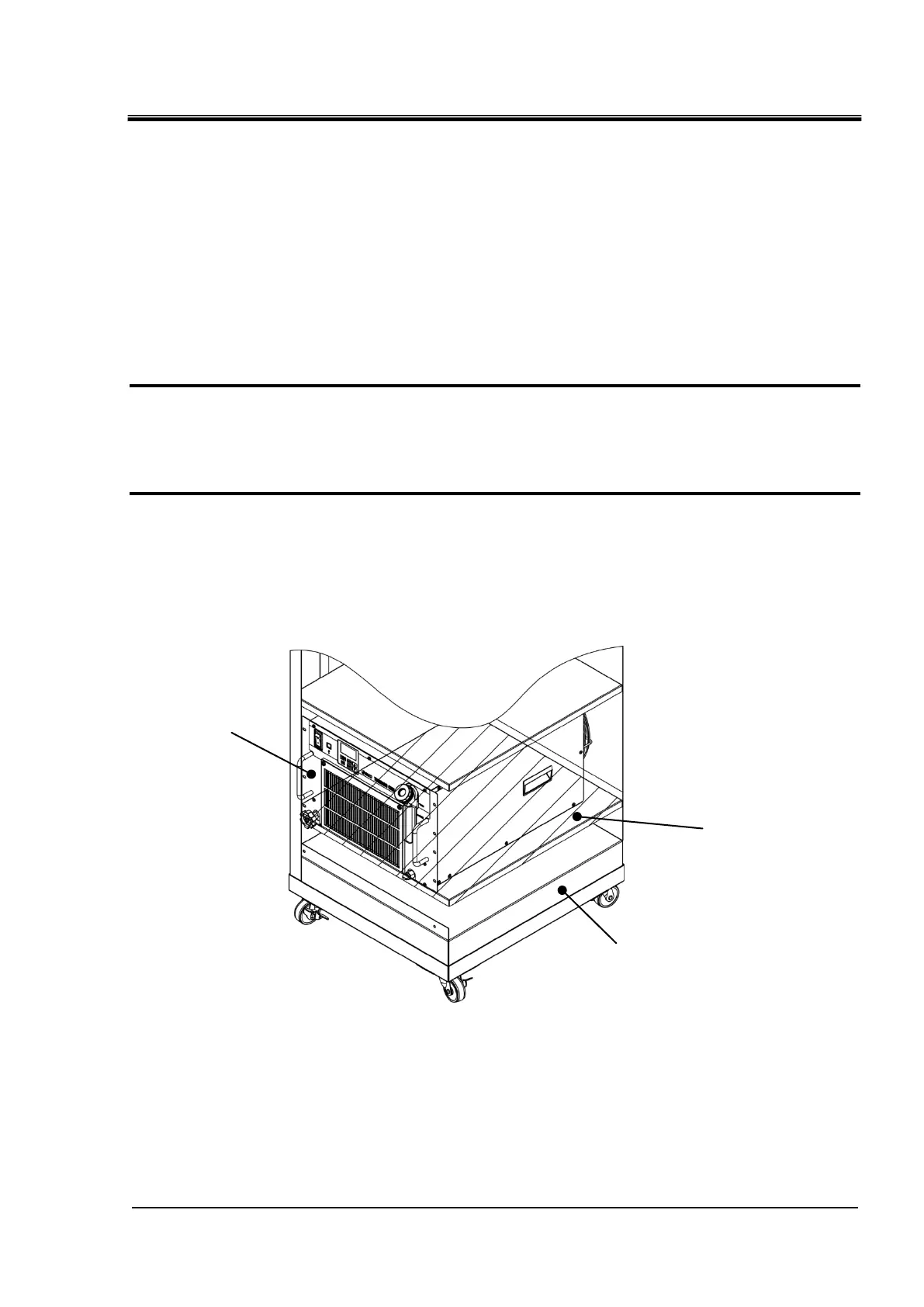

Fig 3-1 Mounting
