9.6.3 HRR012/018/024/030-A/W-20-MT

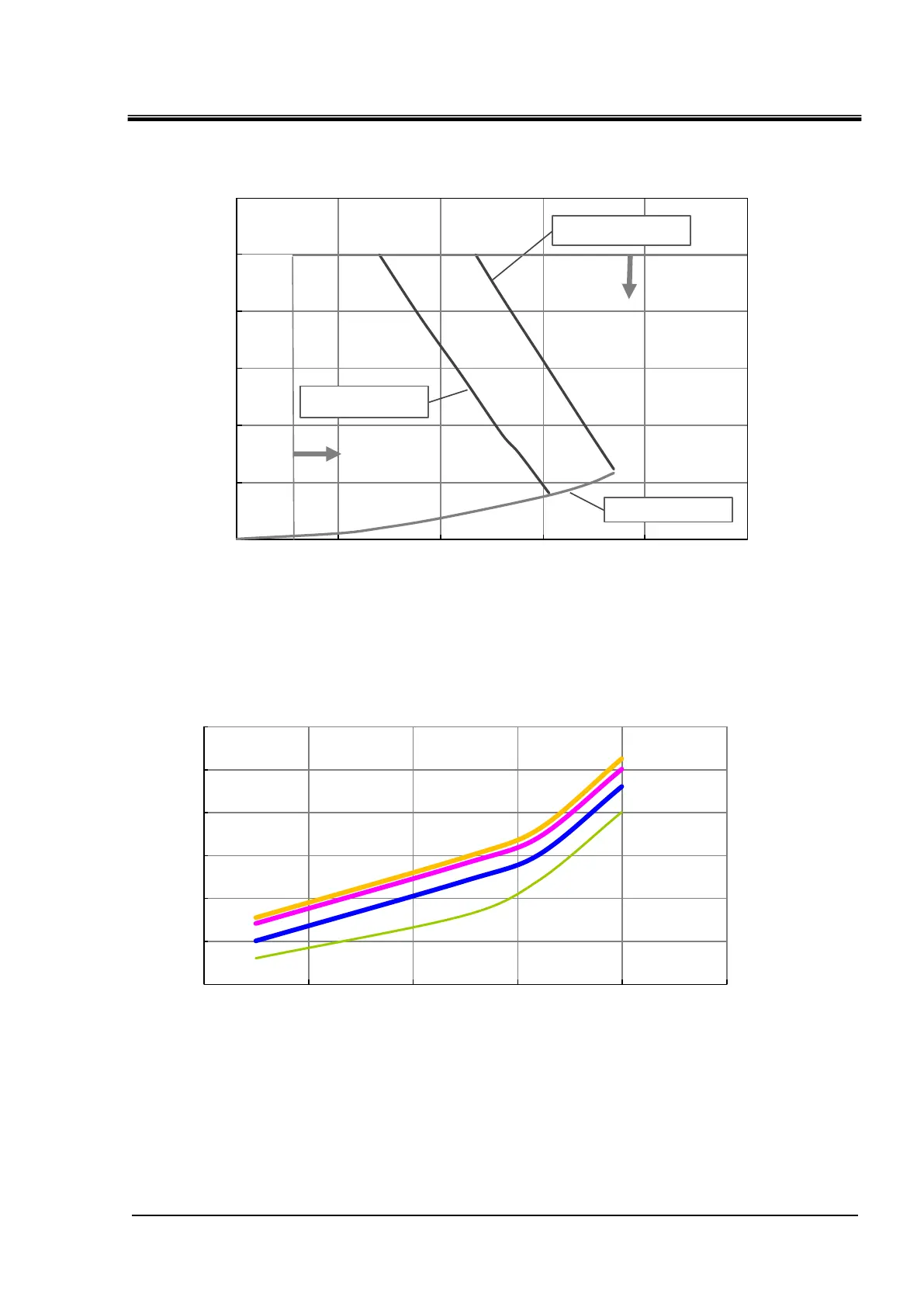

Fig 9-15 Pump capacity（HRR012/018/024/030-A/W-20-MT）
9.7 Required facility water flow (for water-cooled type)
The amount of the facilitywater for the opution with rated circulating fluid,
cooling capacity which is described in fig.9.4-1 to 9.4-4
Fig 9-16 Required facility water flow (for water-cooled type)
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0 5 10 15 20 25
Pressure [MPa]
Circulating fluid flow rate [L/min]
Outlet : 60Hz
Outlet : 50Hz
Allowable
operating
range
Allowable
operating
range
Return port
HRR012-W*-20
HRR018-W*-20
HRR024-W*-20
HRR030-W*-20
0
5
10
15
20
25
30
0 10 20 30 40 50
Facility water flow rate [L/min]
Facility water inlet temperature [℃]
