Chapter 5 Display and Setting of Various Functions
5.5 Advanced setting mode HRR Series
5-18

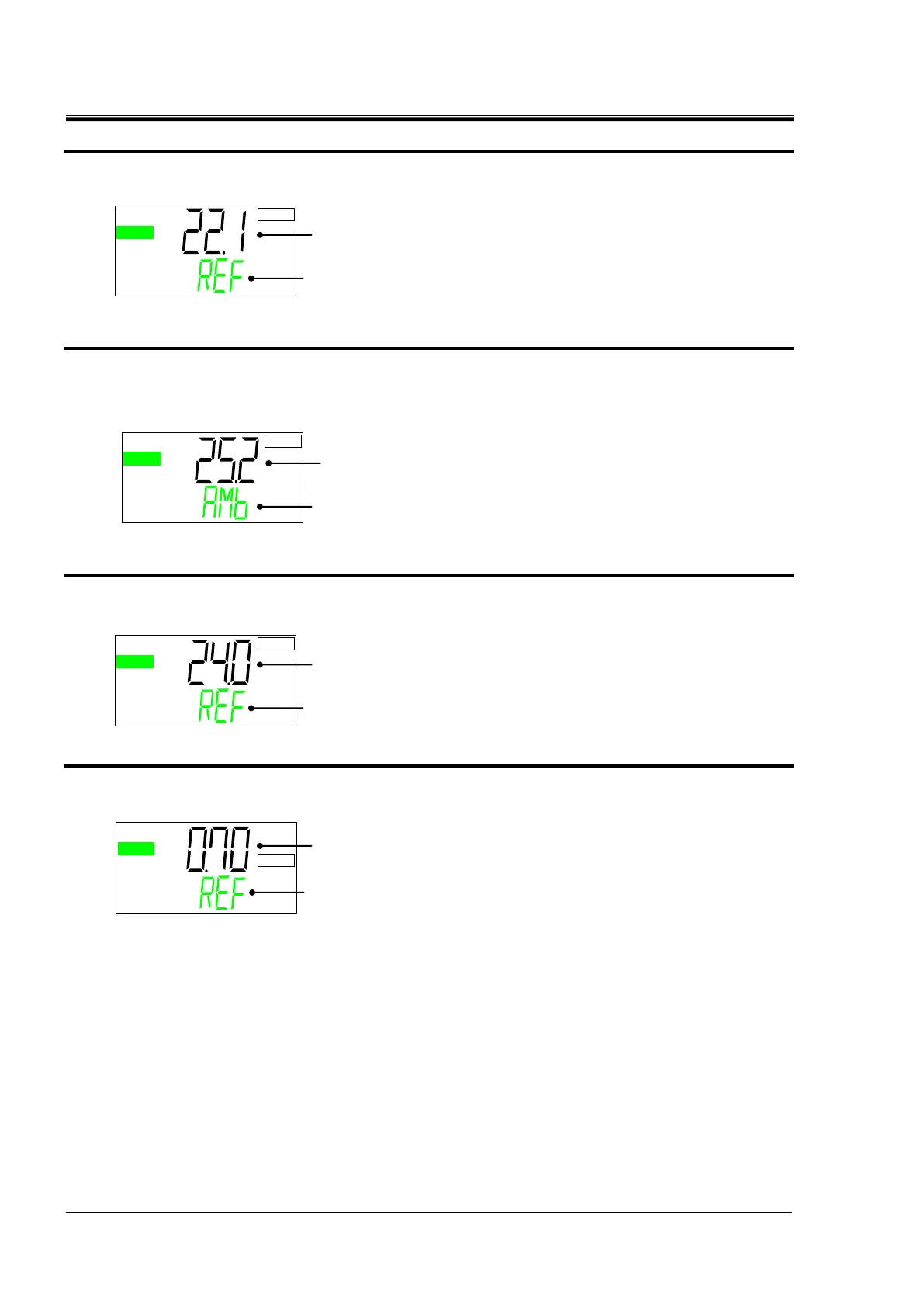

Temperature at the compressor inlet.
2. Press the [▼] key. Displays temperature at the compressor inlet.
Ambient temperature
3. Press the [▼] key. Displays the ambient temperature (ventilated air temperature of this
product).
(Displayed only for air-cooled type.)
Pressure of high pressure refrigerant circuit
4. Press the [▼] key. Displays pressure of high pressure refrigerant circuit
Pressure of low pressure refrigerant circuit
5. Press the [▼] key. Displays pressure of low pressure refrigerant circuit
℃
RUN
℃
RUN
℃
RUN
Ambient temperature
RUN
MPa
Temperature at the compressor inlet.
REF ⇒ TEMP (Alternately displayed)
AMB⇒ TEMP (Alternately displayed)
Pressure of high pressure refrigerant circuit
REF ⇒ PRSHI (Alternately displayed)
Pressure of low pressure refrigerant circuit
REF ⇒ PRSLO (Alternately displayed)
