Chapter 5 Display and Setting of Various Functions
5.21 Alarm Customizing Function HRSH Series
5-56

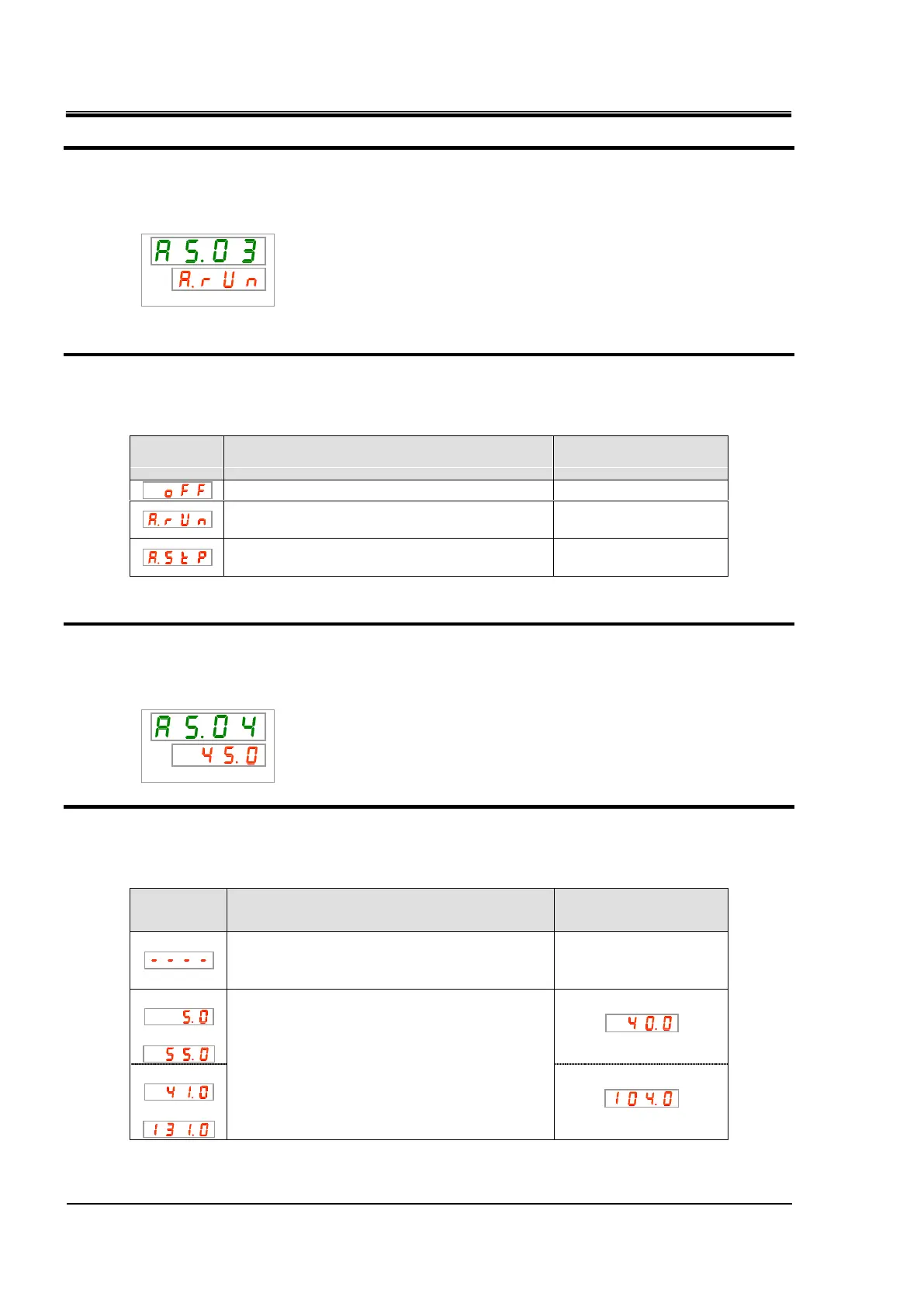

Setting/Checking: Operation setting when "Circulating fluid discharge temp. rise" alarm is generated
4. Press the [SEL] key once.
Operation setting screen when "Circulating fluid discharge temp. rise" alarm is generated
appears on the digital display.
5. Set the product operation when "Circulating fluid discharge temp. rise" alarm is
generated with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-9 Operation setting when “Circulating fluid discharge temp. rise” alarm is generated
Set value
Explanation
Default setting
This alarm is not detected.
Operation continues when this alarm signal is
generated.
✓
Operation is stopped when this alarm signal is
generated.
Setting/Checking: Threshold temperature setting for "Detection temp. for the circulating fluid discharge temp. increase"
alarm
6. Press the [SEL] key once.
Threshold detecting temperature setting screen for "Circulating fluid discharge temp. rise" alarm
generation appears on the digital display.
7. Set the threshold detection temperature for "Circulating fluid discharge temp. rise"
alarm generation with [▲] key or [▼] key, and press [SEL] key to enter.
Table 5.21-10 Threshold detection temperature setting for "Circulating fluid discharge temp. rise" alarm generation
Set value
Explanation
Default
Setting/checking of the alarm is impossible when
the "Circulating fluid discharge temp. rise" alarm is
set OFF.
Centigrade
to
Sets threshold detecting temperature for
“Circulating fluid discharge temp. rise” alarm.
Setting temperature unit for Centigrade: 0.1
o
C
Setting temperature unit for Fahrenheit: 0.1
o
F
Fahrenheit
to
PV
SV
PV
SV
