1.3 Hazard Warning Label HRZ Series
1.3 Hazard Warning Label
The hazard warning labels are applied to the sections of this system where
potential hazards are present during system operation and maintenance.
The hazard warning labels are in appropriate sizes and colors to get attention of the
operator. They contain symbols in addition to the descriptions of warnings.

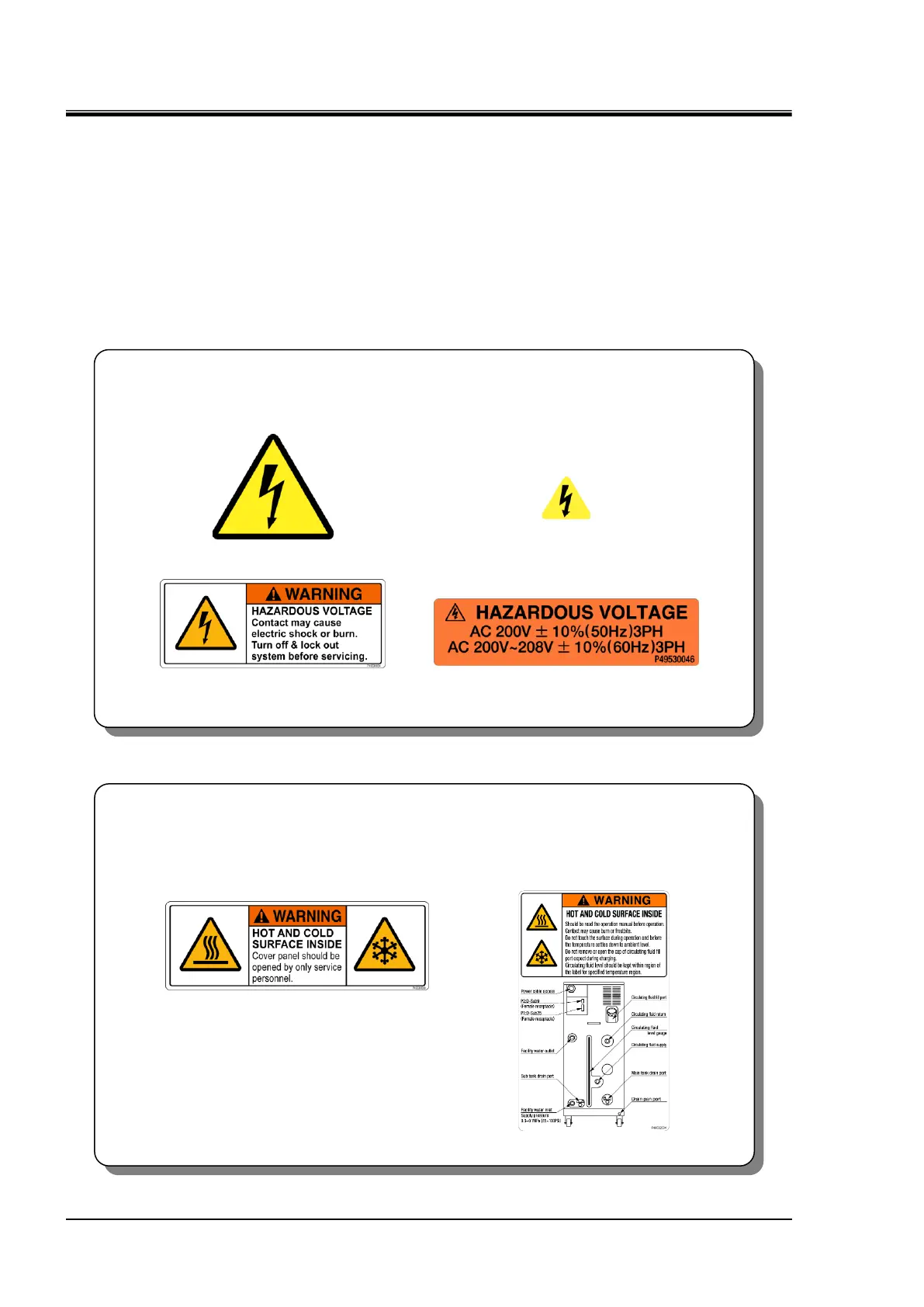

1.3.1 Type of hazard warning label
The hazard warning labels affixed on this system are listed below.
Labels of high voltage hazard
Labels of hot/cold surface hazard
[Hot/cold surface hazard]
This warning label is affixed on the surface that is at high or low temperatures
carrying potential burns (or frostbite) if touched. Residual heat may cause burns
despite the power being turned OFF. Be sure of the surface reaching room
temperature before work.
Figure 1-5 Hazard warning label No.5
Figure 1-6 Hazard warning label No.6
[High voltage hazard]
This warning label is affixed on the part isolated with the cover panel of the system
panel in which high voltage is applied.
Do not remove cover panels that are not designated in this manual.
Figure 1-1 Hazard warning label No.1
Figure 1-2 Hazard warning label No.2
Figure 1-3 Hazard warning label No.3
Figure 1-4 Hazard warning label No.4
