HRX-OM-X010
Chapter 8 Appendix
HRZ Series 8.6 Anchor Bolt Mounting Position
8-19
8-19
8.6.2 Part 2
HRZ008-L-F HRZ008-L1-F
Adjust and secure the adjuster foot of this system to secure the anti-seismic
bracket.

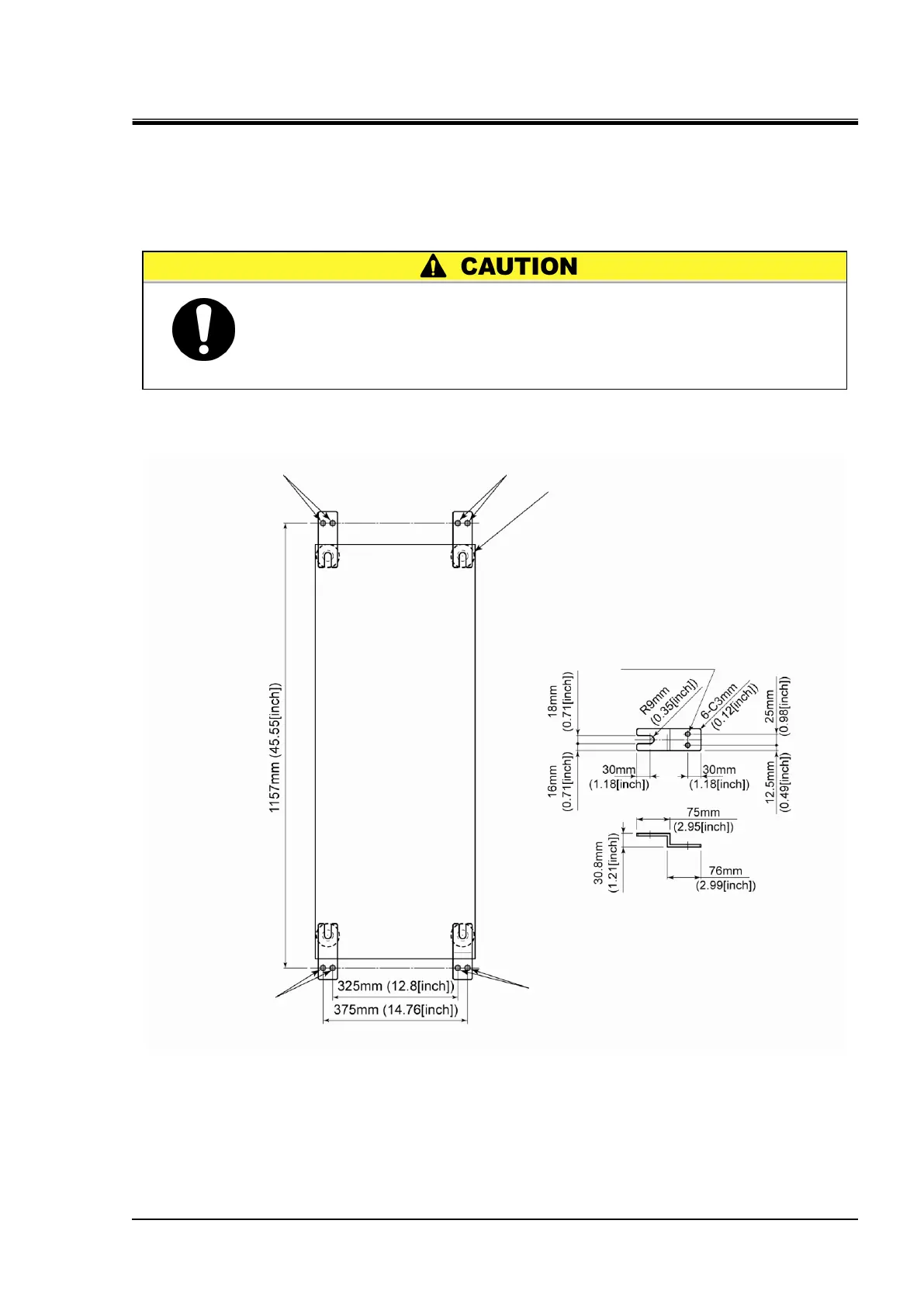

Figure 8-11 Anchor Bolt Mounting Position
Anchor bolt
Anchor bolt
Adjustable foot
Top
Anchor bolt
Anchor bolt
2-Ø9 notch
Anti-seismic bracket (accessory)
 Anti-seismic bracket is an accessory, which is required for the installation of this
system.
 It is your responsibility to prepare anchor bolts suitable for your floor material.
M8-anchor bolts (8 pcs.) are required.
