Chapter 5 System Operation
5.3 Operation Screen HRZ Series
5-12
5.3.10 Control Setting screen 2

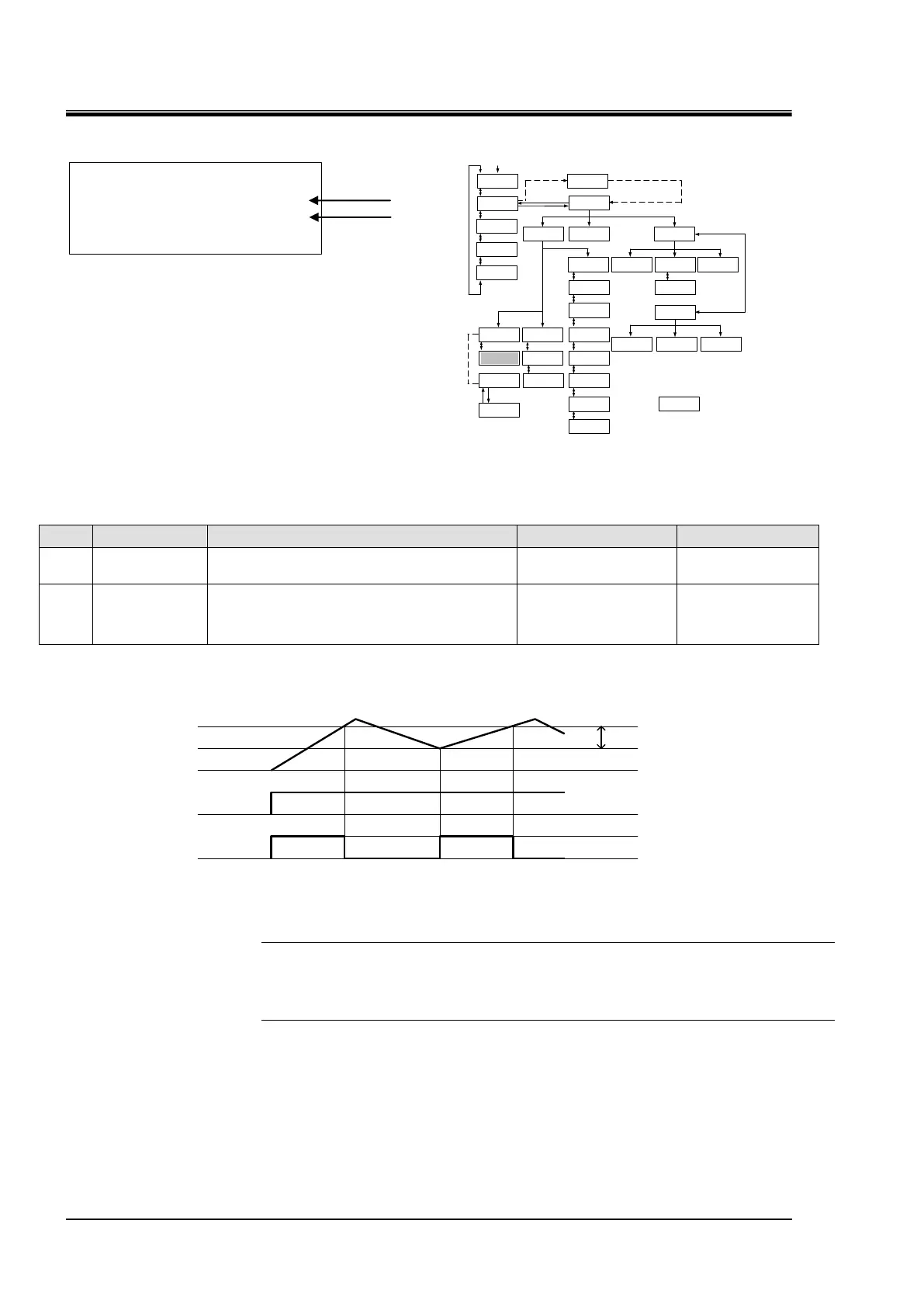

Figure 5-12 Control Setting screen 2
Table 5-10 Control Setting screen 2
No.
Item
Descriptions
Setting Range
Factory Default
1
DI SP
Allows the setting of circulating fluid electric
resistivity.
0.0 to 2.0MΩ
0.5MΩ
2
DI HYS
Allows the setting of hysteresis for circulating
fluid electric resistivity. (See Figure about
hysteresis.)
0.0 to 0.9MΩ
0.3MΩ
Figure 5-13 DI Hysteresis setting (DI HYS)
[Tips]
It is displayed only if the DI Control Kit (optional) is provided.
[▲] or [▼] key is used for selecting “Item.” and move to the other Control
Setting screens. And pressing [ENT] key enabling changing the set point.
＜ＣＯＮＴＲＯＬ ＳＥＴ＞ ↕
ＤＩ ＳＰ ０．５ＭΩ
ＤＩ ＨＹＳ ０．３ＭΩ
1
2
Solenoid
valve
DI
level
DI
SP
OFF(
closed
ON(
open
)
Stop
Run
DI HYS
Operational
status
)
POWER ON
