HRX-OM-X010
Chapter 5 System Operation
HRZ Series 5.4 Examples of System Operation
5-39
5-39

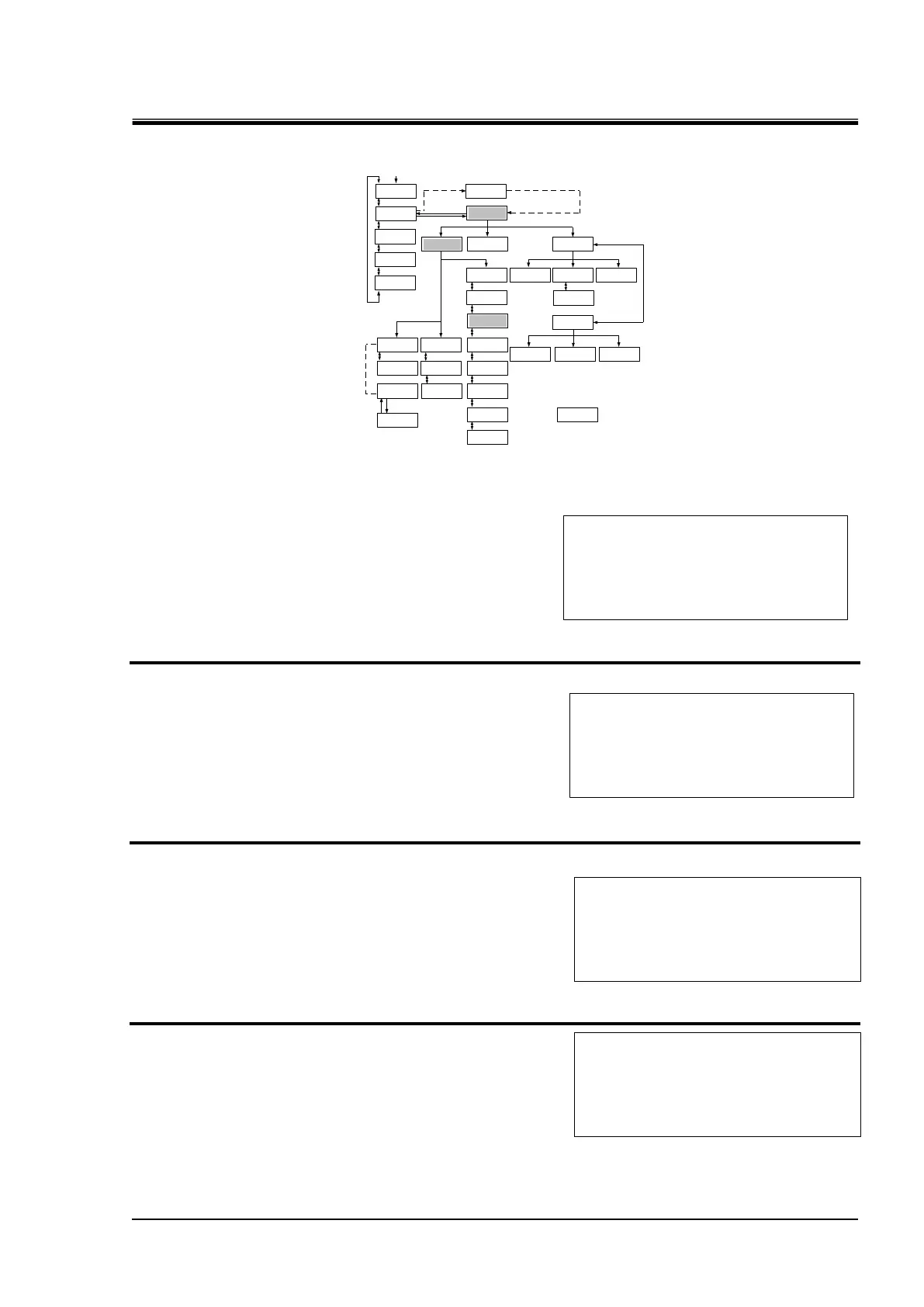

5.4.3 Example 3: PUMP IV is switched from “FLOW” to “FREQ”.
Figure 5-49 Swiching of pump operation from FLOW to FREQ
1. Press the [SEL] key to display the “Menu
screen”.
Figure 5-50 Menu screen
2. With the use of the arrow keys ([▲], [▼]),
move the cursor to “1.SETTING” and
press the [ENT] key.
The “Setting screen” is displayed.
Figure 5-51 Setting screen
3. With the use of the arrow keys([▲],
[▼]),move the cursor to “3.INITIAL SET”
and press the [ENT] key.
The “Initial setting screen 1”is displayed.
Figure 5-52 Initial Setting screen 1
4. With the use of the arrow keys([▲],[▼]),
Move the cursor to “Initial Setting screen 3”.
Figure 5-53 Initial Setting screen 3
＜ＭＥＮＵ＞
１．ＳＥＴＴＩＮＧ
２．ＲＥＭＯＴＥ ＭＯＤＥ
３．ＭＡＩＮＴＥＮＡＮＣＥ
＜ＳＥＴＴＩＮＧ＞
１．ＣＯＮＴＲＯＬ ＳＥＴ
２．ＡＬＡＲＭ ＳＥＴ
３．ＩＮＩＴＩＡＬ ＳＥＴ
＜ＩＮＩＴＩＡＬ ＳＥＴ＞ ↕
ＦＬＯＷ ＵＮＩＴ LＰＭ
ＰＲＥＳＳ ＵＮＩＴ ＭＰａ
ＯＦＦＳＥＴ ＯＦＦ
＜ＩＮＩＴＩＡＬ ＳＥＴ＞ ↕
ＰＵＭＰ ＩＶ ＦＬＯＷ
Ｐ．ＬＩＭＩＴ ＦＵＮＣ．ＯＦＦ
Ｐ．ＬＩＭＩＴ １．００ＭＰａ
POWER ON
