Chapter 5 System Operation
5.3 Operation Screen HRZ Series
5-16
5.3.14 Alarm Setting screen 2

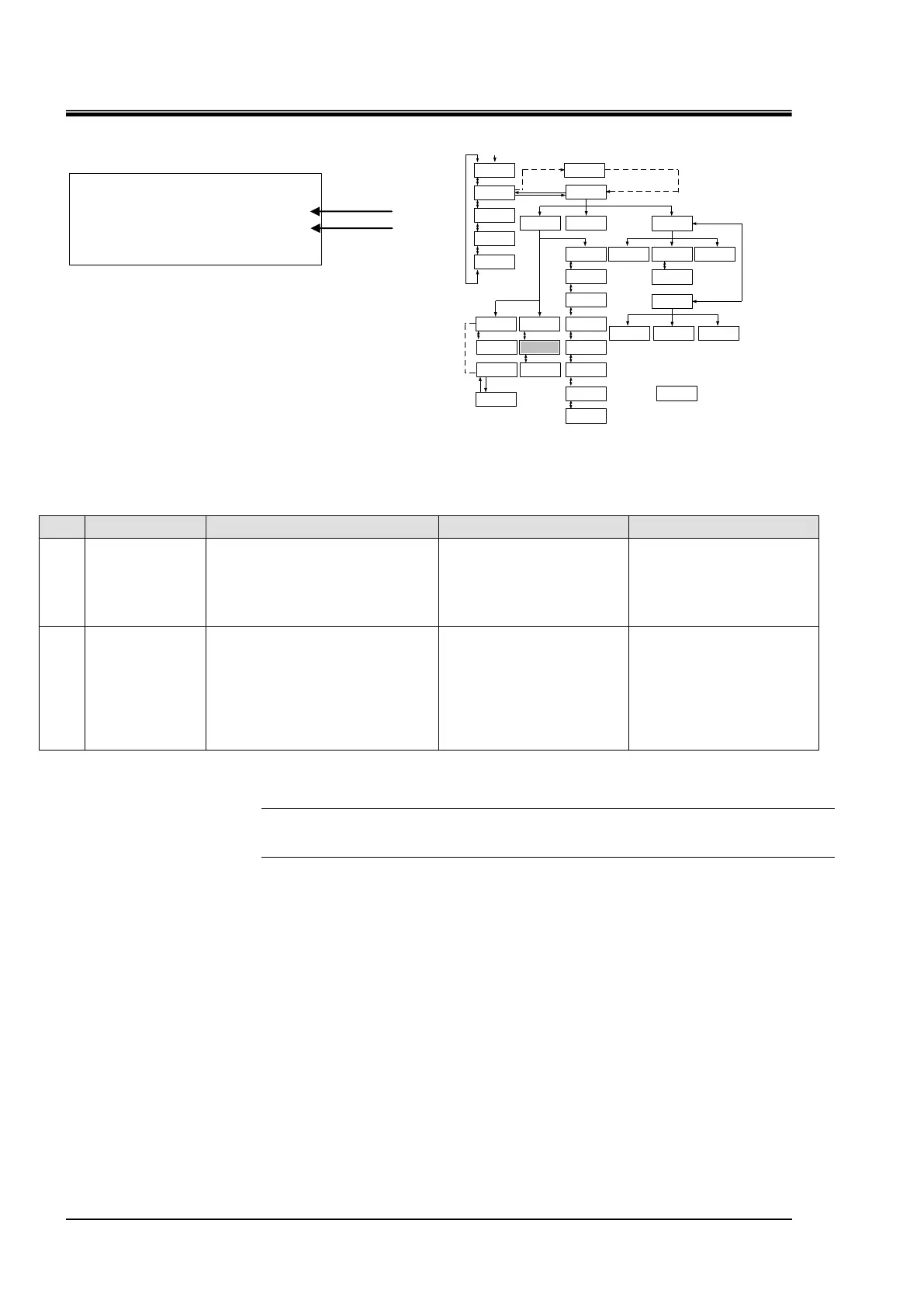

Figure 5-17 Alarm Setting screen2
Table 5-14 Alarm Setting screen 2
No.
Item
Descriptions
Setting Range
Factory Default
1
LO FLOW
WRN
Allows the setting of “13:Return
Low Flow WRN” (valid:ON/invalid:
OFF).
Alarm is not raised if invalid:OFF is
selected.
OFF,ON
ON
2
LO FLOW
Allows the setting of flow rate to
generate “13:Return Low Flow
WRN”.
Alarm is raised when circulating
fluid flow rate falls below the set
value.
HRZ***-WS/W1S/W2S-F：
8.0 to 40.0LPM
2.1~10.6GPM
HRZ008-L/L1-F：
15.0 to 40.0LPM
4.0~10.6GPM
HRZ***-WS/W1S/W2S-F：
8.0LPM
2.1GPM
HRZ008-L/L1-F：
15.0LPM
4.0GPM
[Tips]
[▲] or [▼] key is used for selecting “Item” and move to other Alarm Setting screens.
And pressing the [ENT] key enabling to change the set value.
＜ ＡＬＡＲＭ ＳＥＴ ＞ ↕
ＬＯ ＦＬＯＷ ＷＲＮ ＯＮ
ＬＯ ＦＬＯＷ ８．０ＬＰＭ
1
2
POWER ON
