(600) Dead band setting
Procedure
LCD display
5
Hold down Down or Up button
( ). As clause 4 above,
change the upper limit with (520)
within the range of 90.0 to 100.0%.
After changing, hold down mode
button ( ) to set the value.
6
Hold down the mode button ( ) for
1sec. or longer. Hold down again
for 1sec. or longer after interval.
or
or
Upper limit setting（％）
Lower limit setting（％）
or

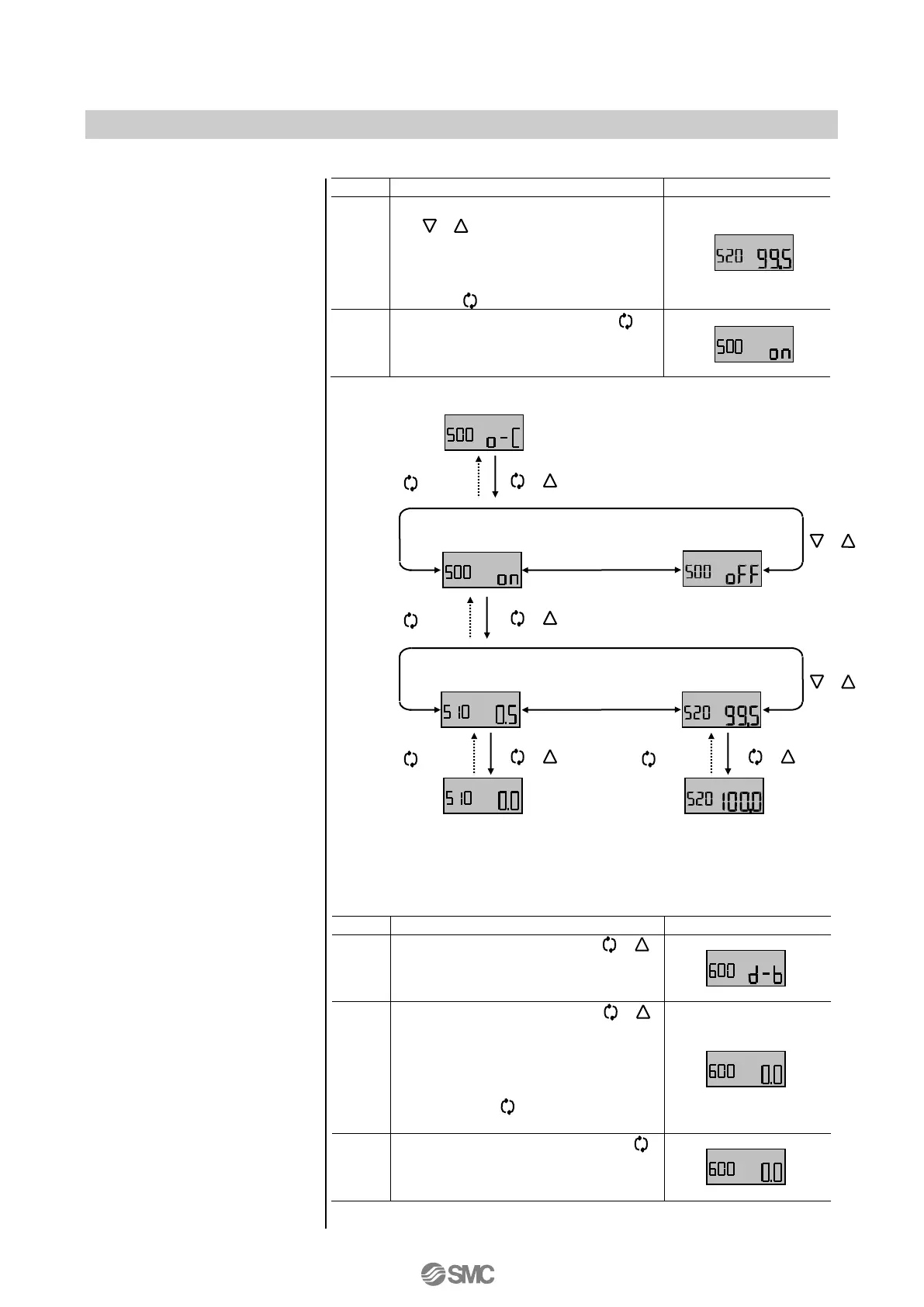

Fig. 37
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Mode button
（ ）
≧1s
Set button
＋
（ ）
≧1s
Set dead band (d-b).
Procedure
LCD display
1
Hold down the set button ( )
for 1sec. or longer to start
parameter change mode.
2
Hold down the set button ( )
for 1sec. or longer. After values
start flashing, change the value
within the range of 0.0 to 10.0%.
After changing, hold down the
mode button ( ) for 1sec. or longer
to set the value.
3
Hold down the mode button ( )
again for 1sec. or longer to set the
mode.
＋
＋
