●Motor control power
supply connector
(Accessory)
<Applicable wire size>
AWG20 (0.5mm
2
)
● Motor drive power connector
(Accessory)
<Applicable wire size>
AWG16 (1.25mm
2
)
PC
● USB cable
Product No.: JXC-W1-2
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/ s
動作中
アラー ム
モニタ
設定
位置 速度
100 500
200
1000
50
200
1
2
3
ﾃｽﾄ
ﾃｽﾄ
ﾃｽﾄ
現在位 置
120.3
現在速 度
200
mm
mm/ s
動作中
アラー ム
モニタ
設定
●Controller set up kit
Contents
-Controller Setting Kit
-USB cable
Product No.: JXC-W1
PLC
Main control power
supply 24VDC
Motor control and
motor drive power
supply
24 VDC
●Power cable for main control
Cable length: 1.5m (Accessory)
Product No.: JXC-C1
Note2)
Note2)
Note2)
Note2)
●Controller setting software
Product No.: JXC-W1-1
Input/output
signal power
supply
24VDC

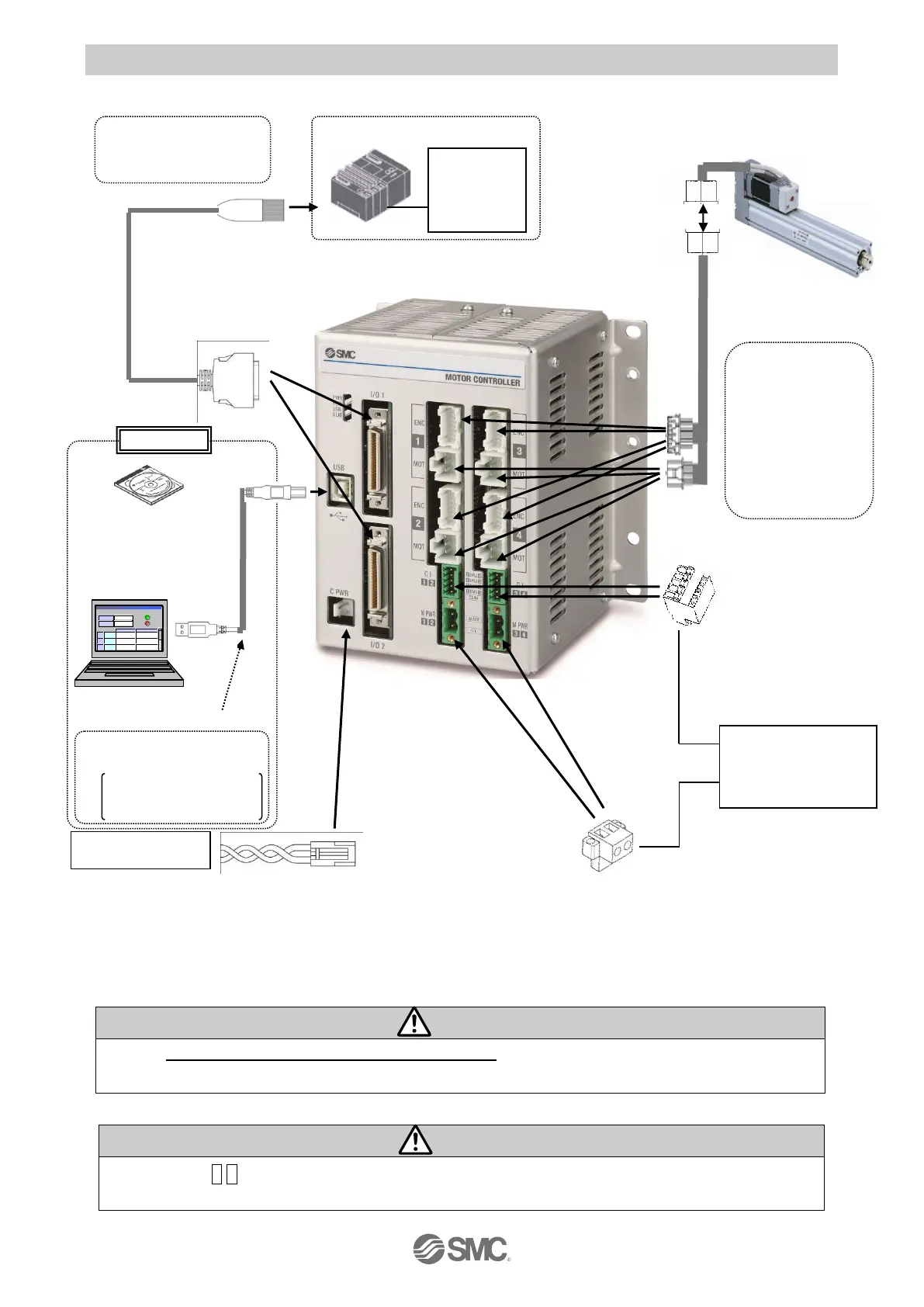

2.3 Product configuration
Structure of the controller.
Note 1) Connected actuators should be ordered separately.
Note 2) PLC, PC and 24VDC power supply should be prepared by theuser.
Wirning
Refer to 12. Common Precautions for wiring and cable.
Use “USB cable (JXC-W1-2)” when communicating with a PC.
Caution
Connector “CI3 4” must be connected even when axis 3 and 4 are not used. If not, a “Modbus
Error” alarm will be generated.
To M PWR
To I/O
●Controller
● Electric actuator
Note1)
Options
To CI
To ENC
To MOT
● I/O cable
Product No: JXC-C2-
To USB
Note1)
●Actuator cable
Part No:
LE-CP--
(Robotic type cable)
LE-CP---S
(Standard cable)
To C PWR
