SMC Networks JXC73 Series User Manual

- 32 -
No.SFOD-OMT0010-B

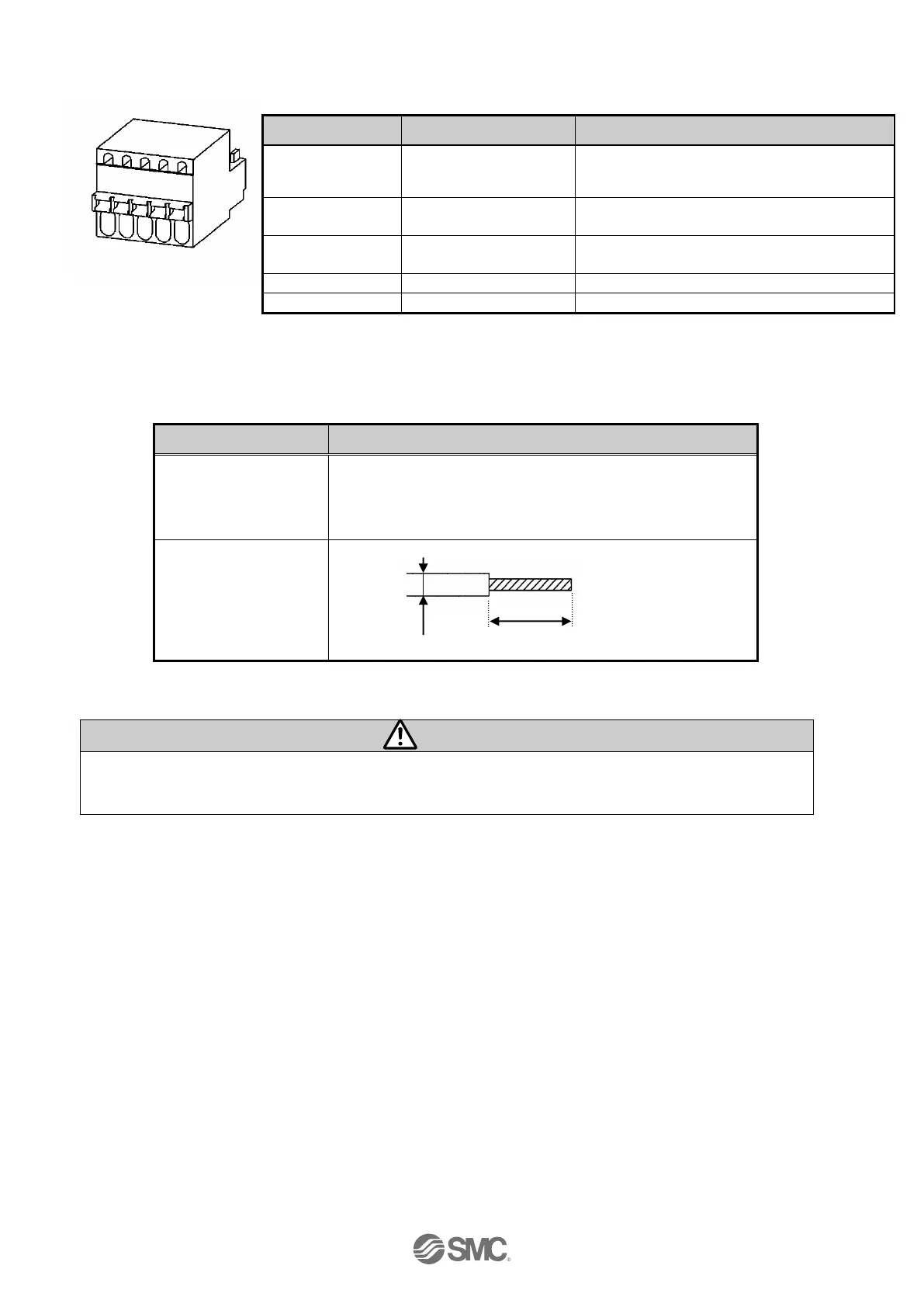

(3) Motor control power supply connector: CI
Manufactured by Phoenix Contact (Part number FK-MC0,5/5-ST-2,5)
Prepare the electrical wiring according to the following specifications (to be prepared by the user).
Item
Specifications
Applicable wire size
Single, Stranded wire → AWG20 (0.5mm
2
)
The rated temperature of the insulation coating should be
60
o
C or more.
Stripped wire length
When the wire is inserted into the motor control power supply connector, insert only the stripped
Terminal
Function
Functional explanation
C24V
Motor control power
supply (+)
Power supply side (+) for motor control.
EMG1/EMG3
Stop(+)
Release the stop status (+) of Axis 1 or Axis 3.
(Normal operation by applying 24V.)
EMG2/EMG4
Stop(+)
Release the stop status (+) of Axis 2 or Axis 4.
(Normal operation by applying 24V.)
LKRLS1/LKRLS3
Unlock(+)
Release the lock status (+) of Axis 1 or Axis 3.
LKRLS2/LKRLS4
Unlock(+)
Release the lock status (+) of Axis 2 or Axis 4.
Caution
Do not connect multiple wires into one terminal.
Contact failure or short circuit to adjacent wire may lead to malfunction or fire.
EMG1/EMG3
C24V
LKRLS2/LKRLS4
EMG2/EMG4
LKRLS1/LKRLS3
8mm
2.0 or less
