- 59 -
No.SFOD-OMT0010-B
(1) Select input Step No.1. (Turn IN0 ON.)
↓
(2) Turn the "DRIVE" input ON.
↓
The Motor starts to move to the position set in Step No.1.
↓
(3) Step No.1 output turns on.
(OUT0 output is turned ON)
↓
(4) INP output turns OFF.
↓
(5) The "BUSY" output turns ON.
↓
(6)Turn the DRIVE input OFF.
↓
(7) “INP” output is turned ON.
↓
(8) “BUSY” output is turned OFF.
↓
The move to the position set in Step Data No.1 is
completed.
↓
(9) Select input Step No.2. (Turn the IN0 input OFF, and the
IN1 input ON.)
↓
(10) Turn ON "DRIVE" input.
↓
Start moving to 10mm from the current position.
↓
(11) Step No.2 output is turned ON.
(OUT1 output is turned ON)
↓
(12) “INP” output is turned OFF.
↓
(13) “BUSY” output is turned ON.
↓
(14) “DRIVE” input is turned OFF.
↓
(15) “INP” output is turned ON.
↓
(16) “BUSY” output is turned OFF.
↓
The move to 10mm away is completed.

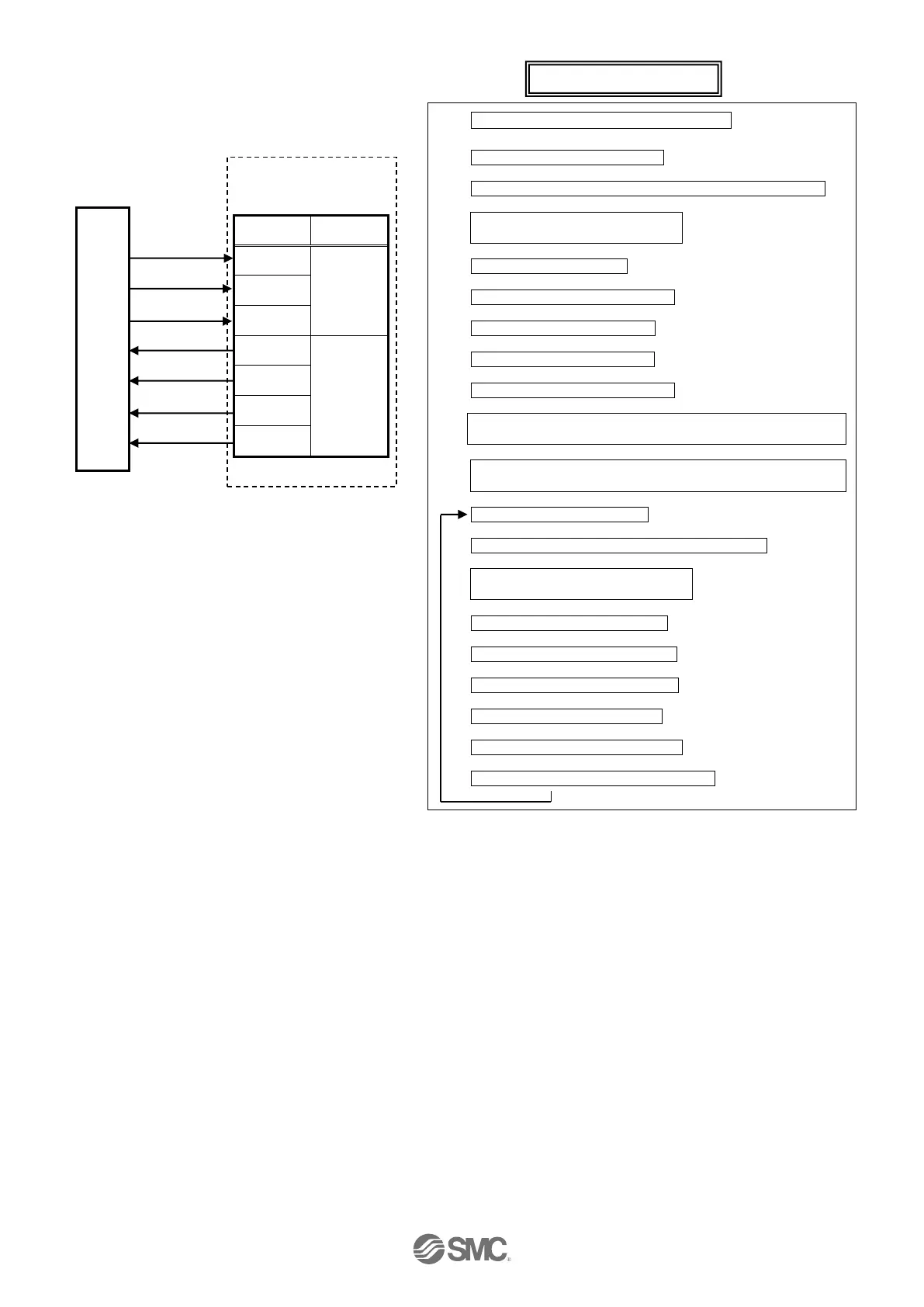

Flow chart (Reference)
5 times
Parallel I/O signals
PLC
(2), (6), (10), (14)
(15), (12), (7), (4)
(16), (13), (8), (5)
(11)
(3)
(9)
(1)
Controller
Signal name
Category
DRIVE
Input
IN0
IN1
OUT0
Output
OUT1
INP
BUSY
