(1)Select input Step No.1. (Turn IN0 ON.)
↓
(2)Turn the DRIVE input ON.
↓
The Motor starts to move to the position set in Step No.1.
↓
(3) Step No.1 output is turned ON.
(OUT0 output is turned ON)
↓
(4)INP output is turned OFF.
↓
(5)BUSY output is turned ON.
↓
(6)Turn the DRIVE input OFF.
↓
(7)INP output is turned ON.
↓
(8)BUSY output is turned OFF.
↓
The move to the position set in Step Data No.1 is
completed.
↓
(9)Select input Step No.2. (Turn the IN0 input OFF, and the
IN1 input ON.)
↓
(10)Turn the "DRIVE" input ON.
↓
Move to the position set in Step No.2.
↓
(11) Step No.2 output is turned ON.
(OUT0 output is turned OFF, OUT1 output is turned ON.)
↓
(12) INP output is turned OFF.
↓
(13) BUSY output is turned ON.
↓
(14) DRIVE input is turned OFF.
↓
(15) INP output is turned ON.
↓
(16) BUSY output is turned OFF.
↓
The move to the position set in Step No. 3 is completed.
↓
(17)Select input Step No.3. (Turn IN0 and IN1 ON)
↓
(18)Turn the "DRIVE" input ON.
↓
Start to move to the position set in Step No.3.
↓
(19)Step No.3 output is turned ON.
(OUT1 and OUT0 output are turned ON)
↓
(20) INP output is turned OFF.
↓
(21)BUSY output is turned ON.
↓
(22) The DRIVE input is turned OFF.
↓
(23) INP output is turned ON.
↓
(24) “BUSY” output is turned OFF.
↓
The move to the position set in Step No. 3 is completed.

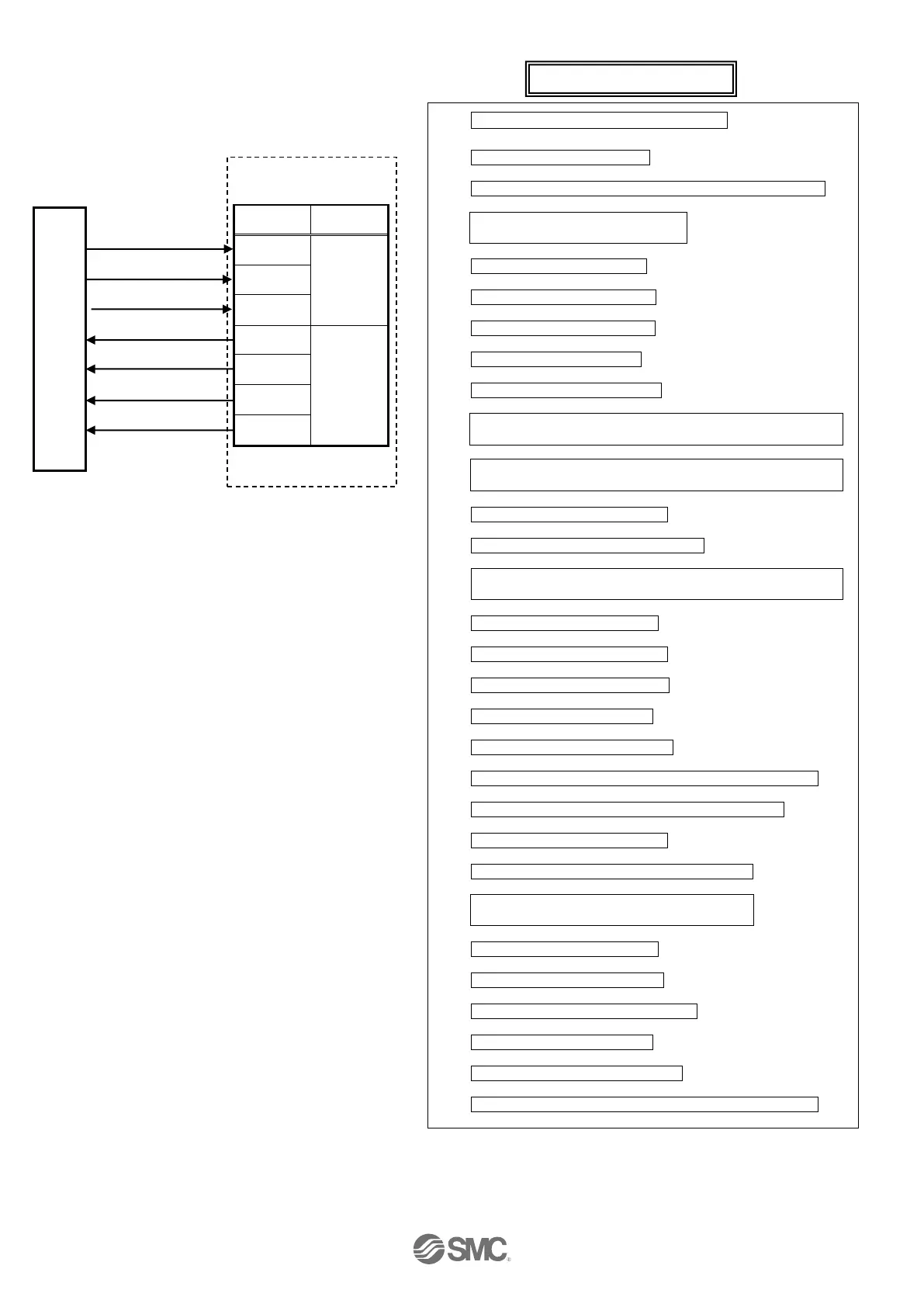

Flow chart （Reference）
Parallel I/O signals
PLC
(2)(6)(10)(14)(18)(22)
(23)(20)(15)(12)(7)(4)
(24)(21)(16)(13)(8)(5)
(19)(11)(3)
(1)(9)(17)
Controller
Signal name
Category
DRIVE
Input
IN0
IN1
OUT0
Output
OUT1
INP
BUSY
(19)(11)(3)
(1)(9)(17)
