SMC Networks JXC73 Series User Manual

- 78 -
No.SFOD-OMT0010-B
[Reset of operation]

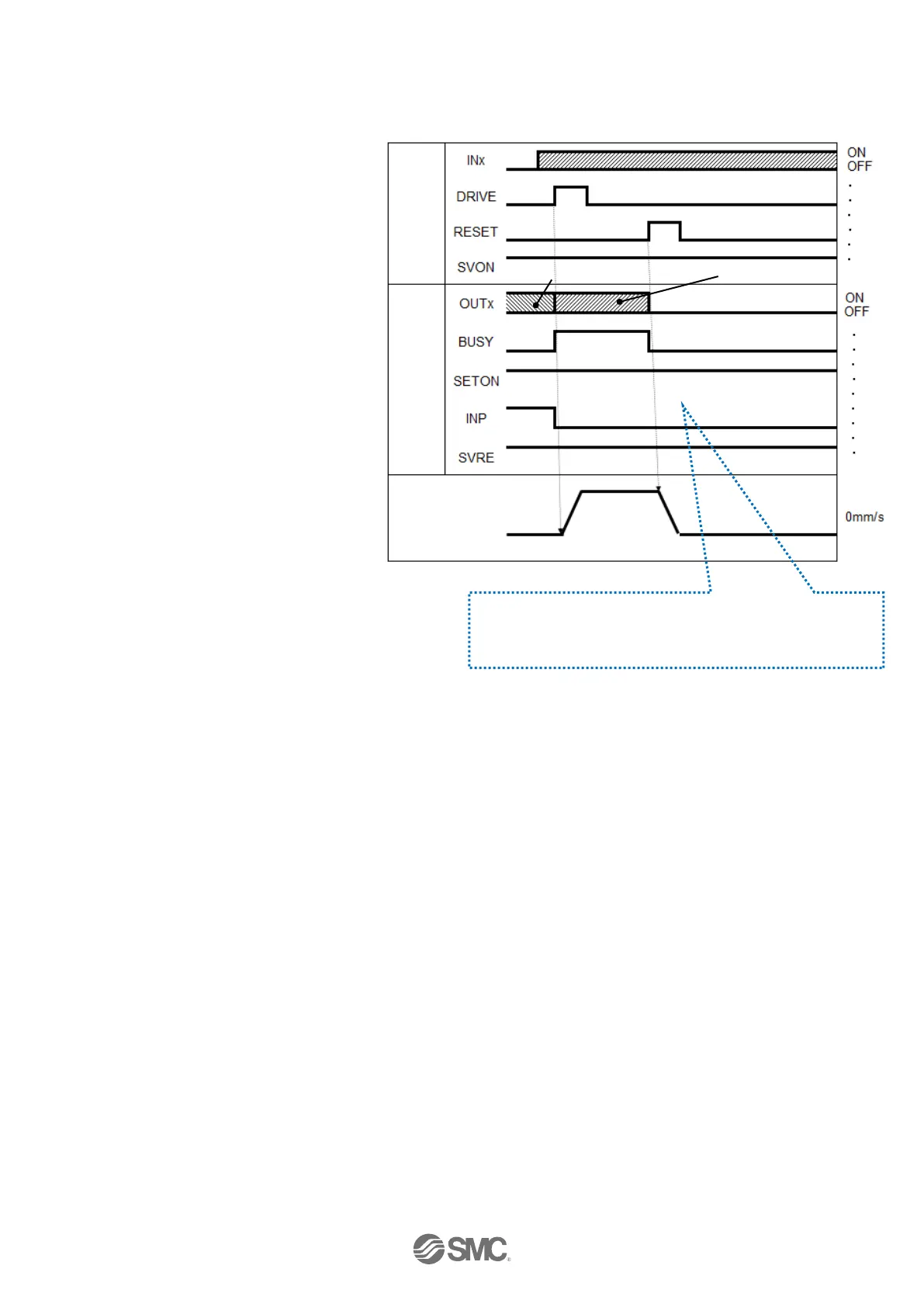

- Procedure - - Timing chart -
(a) The RESET input is turned ON
during a movement operation
(when the BUSY output is ON).
↓
(b) The BUSY output is OFF and
OUTx output is OFF. (The
actuator will stop).
Input signal
Output signal
Speed
Current step data No.
Previous step data No.
Slow-down
starting
point
The INP output signal is ON when the actuators are within
+/-"Positioning range" of the target position.
