SMC Networks PFCA7 Series User Manual

-15-
No.PF※※-OMA1002

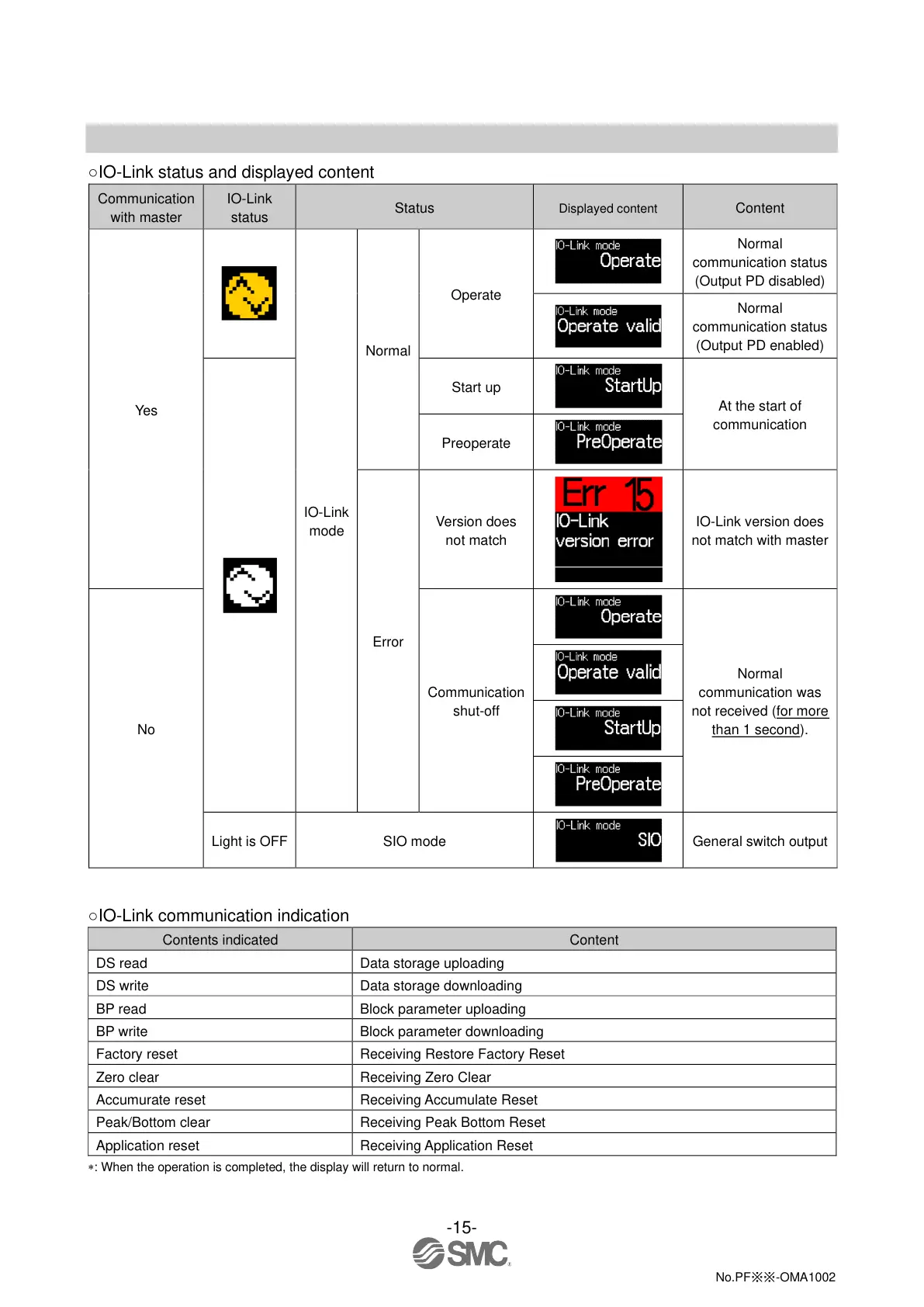

○IO-Link status and displayed content
Communication
with master
IO-Link
status
Status
Displayed content
Content
Yes
IO-Link
mode
Normal
Operate
Normal
communication status
(Output PD disabled)
Normal
communication status
(Output PD enabled)
Start up
At the start of
communication
Preoperate
Error
Version does
not match
IO-Link version does
not match with master
No
Communication
shut-off
Normal
communication was
not received (for more
than 1 second).
Light is OFF
SIO mode
General switch output
○IO-Link communication indication
Contents indicated
Content
DS read
Data storage uploading
DS write
Data storage downloading
BP read
Block parameter uploading
BP write
Block parameter downloading
Factory reset
Receiving Restore Factory Reset
Zero clear
Receiving Zero Clear
Accumurate reset
Receiving Accumulate Reset
Peak/Bottom clear
Receiving Peak Bottom Reset
Application reset
Receiving Application Reset
: When the operation is completed, the display will return to normal.
