-39-
No.PF※※-OMA1002

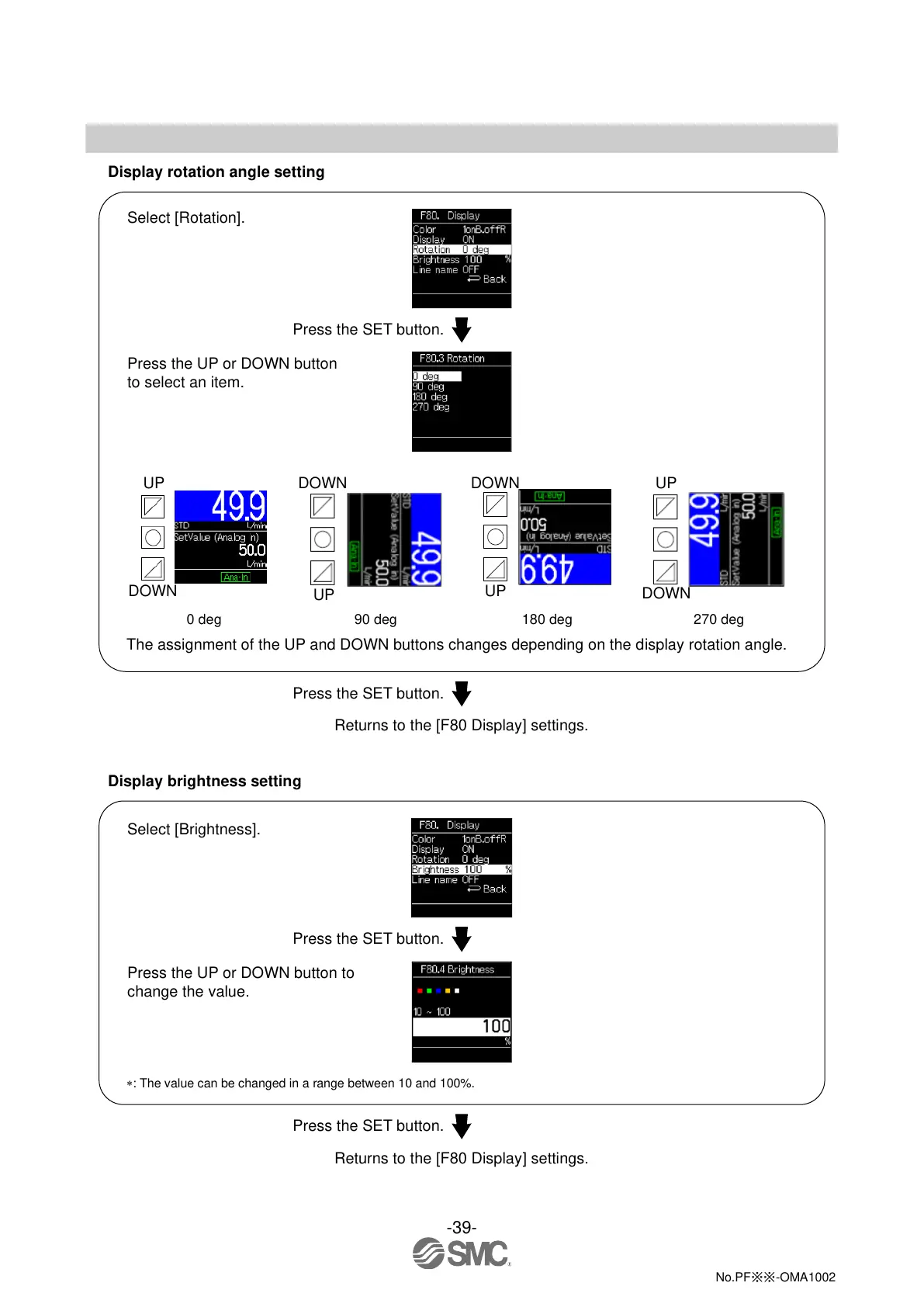

Display rotation angle setting
Press the SET button.
0 deg
90 deg
180 deg
270 deg
The assignment of the UP and DOWN buttons changes depending on the display rotation angle.
Press the SET button.
Returns to the [F80 Display] settings.
Display brightness setting
Press the SET button.
: The value can be changed in a range between 10 and 100%.
Press the SET button.
Returns to the [F80 Display] settings.
Press the UP or DOWN button
to select an item.
Select [Rotation].
Press the UP or DOWN button to
change the value.
Select [Brightness].
UP
DOWN
DOWN
UP
UP
DOWN
DOWN
UP
