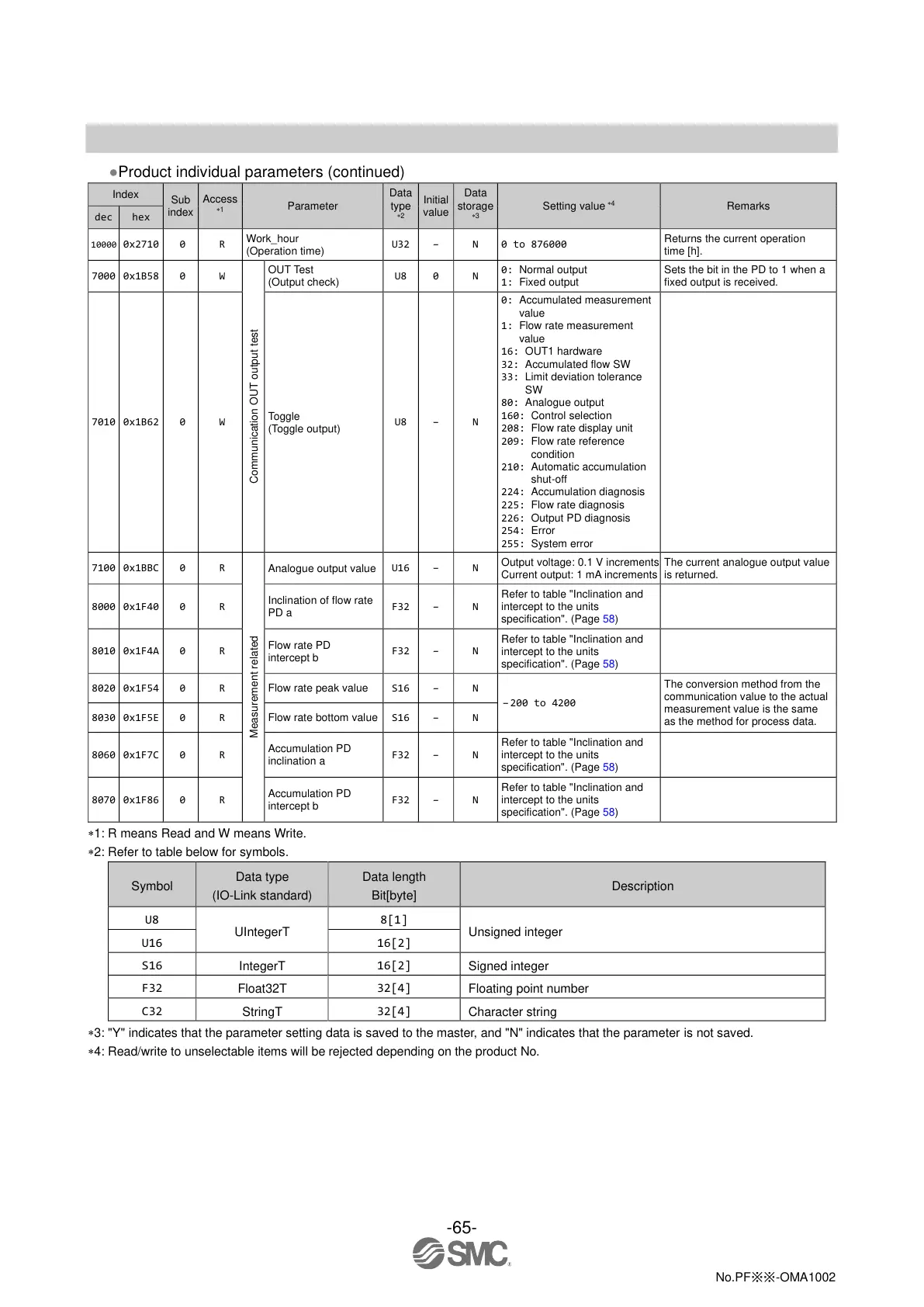

●Product individual parameters (continued)
Index
Sub
index
Access
1
Parameter
Data
type
2
Initial
value
Data
storage
3
Setting value
4
Remarks
dec
hex
10000
0x2710
0
R
Work_hour
(Operation time)
U32
-
N
0 to 876000
Returns the current operation
time [h].
7000
0x1B58
0
W
Communication OUT output test
OUT Test
(Output check)
U8
0
N
0: Normal output
1: Fixed output
Sets the bit in the PD to 1 when a
fixed output is received.
7010
0x1B62
0
W
Toggle
(Toggle output)
U8
-
N
0: Accumulated measurement
value
1: Flow rate measurement
value
16: OUT1 hardware
32: Accumulated flow SW
33: Limit deviation tolerance
SW
80: Analogue output
160: Control selection
208: Flow rate display unit
209: Flow rate reference
condition
210: Automatic accumulation
shut-off
224: Accumulation diagnosis
225: Flow rate diagnosis
226: Output PD diagnosis
254: Error
255: System error
7100
0x1BBC
0
R
Measurement related
Analogue output value
U16
-
N
Output voltage: 0.1 V increments
Current output: 1 mA increments
The current analogue output value
is returned.
8000
0x1F40
0
R
Inclination of flow rate
PD a
F32
-
N
Refer to table "Inclination and
intercept to the units
specification". (Page 58)
8010
0x1F4A
0
R
Flow rate PD
intercept b
F32
-
N
Refer to table "Inclination and
intercept to the units
specification". (Page 58)
8020
0x1F54
0
R
Flow rate peak value
S16
-
N
- 200 to 4200
The conversion method from the
communication value to the actual
measurement value is the same
as the method for process data.
8030
0x1F5E
0
R
Flow rate bottom value
S16
-
N
8060
0x1F7C
0
R
Accumulation PD
inclination a
F32
-
N
Refer to table "Inclination and
intercept to the units
specification". (Page 58)
8070
0x1F86
0
R
Accumulation PD
intercept b
F32
-
N
Refer to table "Inclination and
intercept to the units
specification". (Page 58)
1: R means Read and W means Write.
2: Refer to table below for symbols.
Symbol
Data type
(IO-Link standard)
Data length
Bit[byte]
Description
U8
UIntegerT
8[1]
Unsigned integer
U16
16[2]
S16
IntegerT
16[2]
Signed integer
F32
Float32T
32[4]
Floating point number
C32
StringT
32[4]
Character string
3: "Y" indicates that the parameter setting data is saved to the master, and "N" indicates that the parameter is not saved.
4: Read/write to unselectable items will be rejected depending on the product No.
