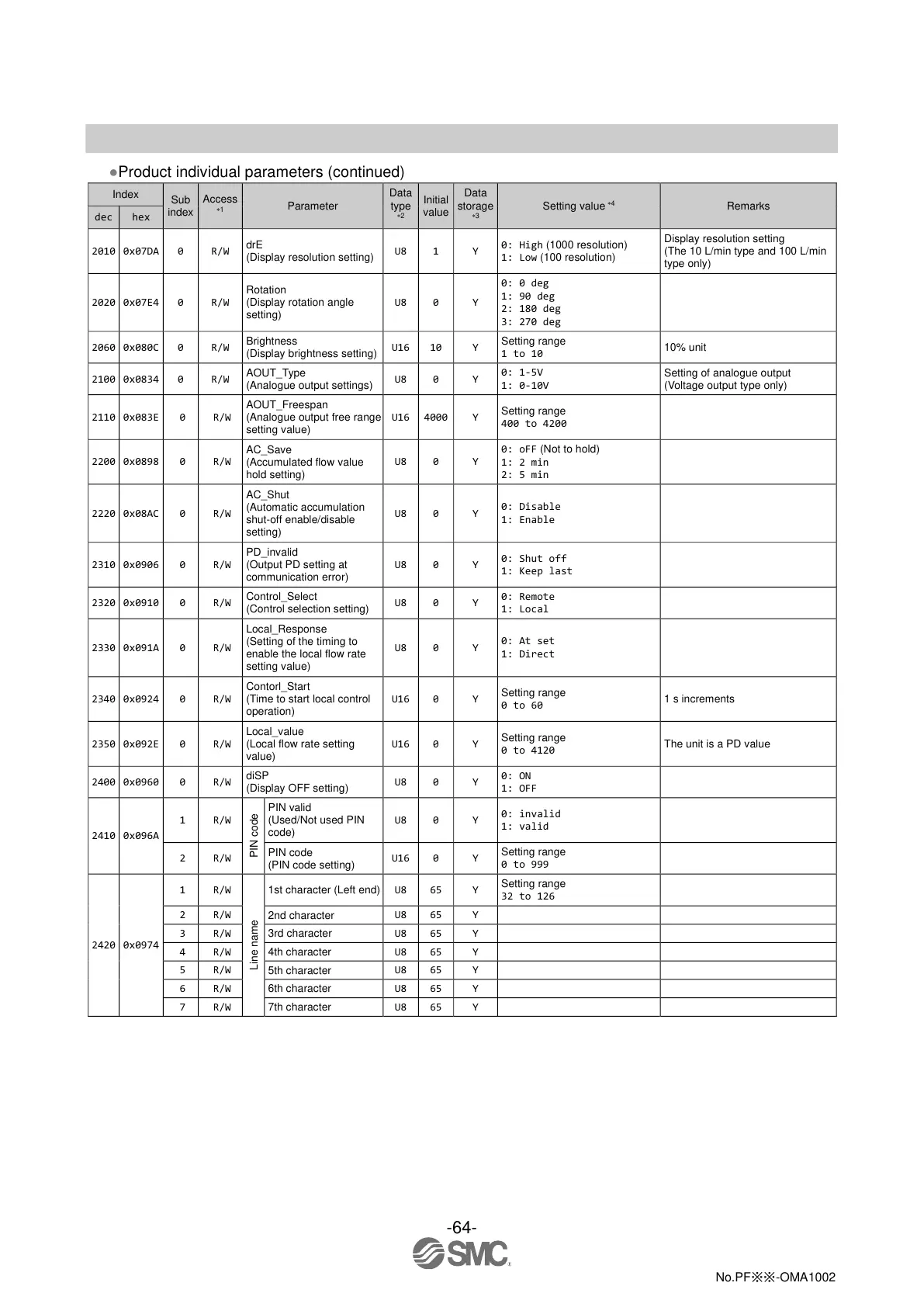

-64-
No.PF※※-OMA1002
Product individual parameters (continued)
Index
Sub
index
Access
1
Parameter
Data
type
2
Initial
value
Data
storage
3
Setting value
4
Remarks
dec
hex
2010
0x07DA
0
R/W
drE
(Display resolution setting)
U8
1
Y
0: High (1000 resolution)
1: Low (100 resolution)
Display resolution setting
(The 10 L/min type and 100 L/min
type only)
2020
0x07E4
0
R/W
Rotation
(Display rotation angle
setting)
U8
0
Y
0: 0 deg
1: 90 deg
2: 180 deg
3: 270 deg
2060
0x080C
0
R/W
Brightness
(Display brightness setting)
U16
10
Y
Setting range
1 to 10
10% unit
2100
0x0834
0
R/W
AOUT_Type
(Analogue output settings)
U8
0
Y
0: 1-5V
1: 0-10V
Setting of analogue output
(Voltage output type only)
2110
0x083E
0
R/W
AOUT_Freespan
(Analogue output free range
setting value)
U16
4000
Y
Setting range
400 to 4200
2200
0x0898
0
R/W
AC_Save
(Accumulated flow value
hold setting)
U8
0
Y
0: oFF (Not to hold)
1: 2 min
2: 5 min
2220
0x08AC
0
R/W
AC_Shut
(Automatic accumulation
shut-off enable/disable
setting)
U8
0
Y
0: Disable
1: Enable
2310
0x0906
0
R/W
PD_invalid
(Output PD setting at
communication error)
U8
0
Y
0: Shut off
1: Keep last
2320
0x0910
0
R/W
Control_Select
(Control selection setting)
U8
0
Y
0: Remote
1: Local
2330
0x091A
0
R/W
Local_Response
(Setting of the timing to
enable the local flow rate
setting value)
U8
0
Y
0: At set
1: Direct
2340
0x0924
0
R/W
Contorl_Start
(Time to start local control
operation)
U16
0
Y
Setting range
0 to 60
1 s increments
2350
0x092E
0
R/W
Local_value
(Local flow rate setting
value)
U16
0
Y
Setting range
0 to 4120
The unit is a PD value
2400
0x0960
0
R/W
diSP
(Display OFF setting)
U8
0
Y
0: ON
1: OFF
2410
0x096A
1
R/W
PIN code
PIN valid
(Used/Not used PIN
code)
U8
0
Y
0: invalid
1: valid
2
R/W
PIN code
(PIN code setting)
U16
0
Y
Setting range
0 to 999
2420
0x0974
1
R/W
Line name
1st character (Left end)
U8
65
Y
Setting range
32 to 126
2
R/W
2nd character
U8
65
Y
3
R/W
3rd character
U8
65
Y
4
R/W
4th character
U8
65
Y
5
R/W
5th character
U8
65
Y
6
R/W
6th character
U8
65
Y
7
R/W
7th character
U8
65
Y
