-63-
No.PF※※-OMA1002

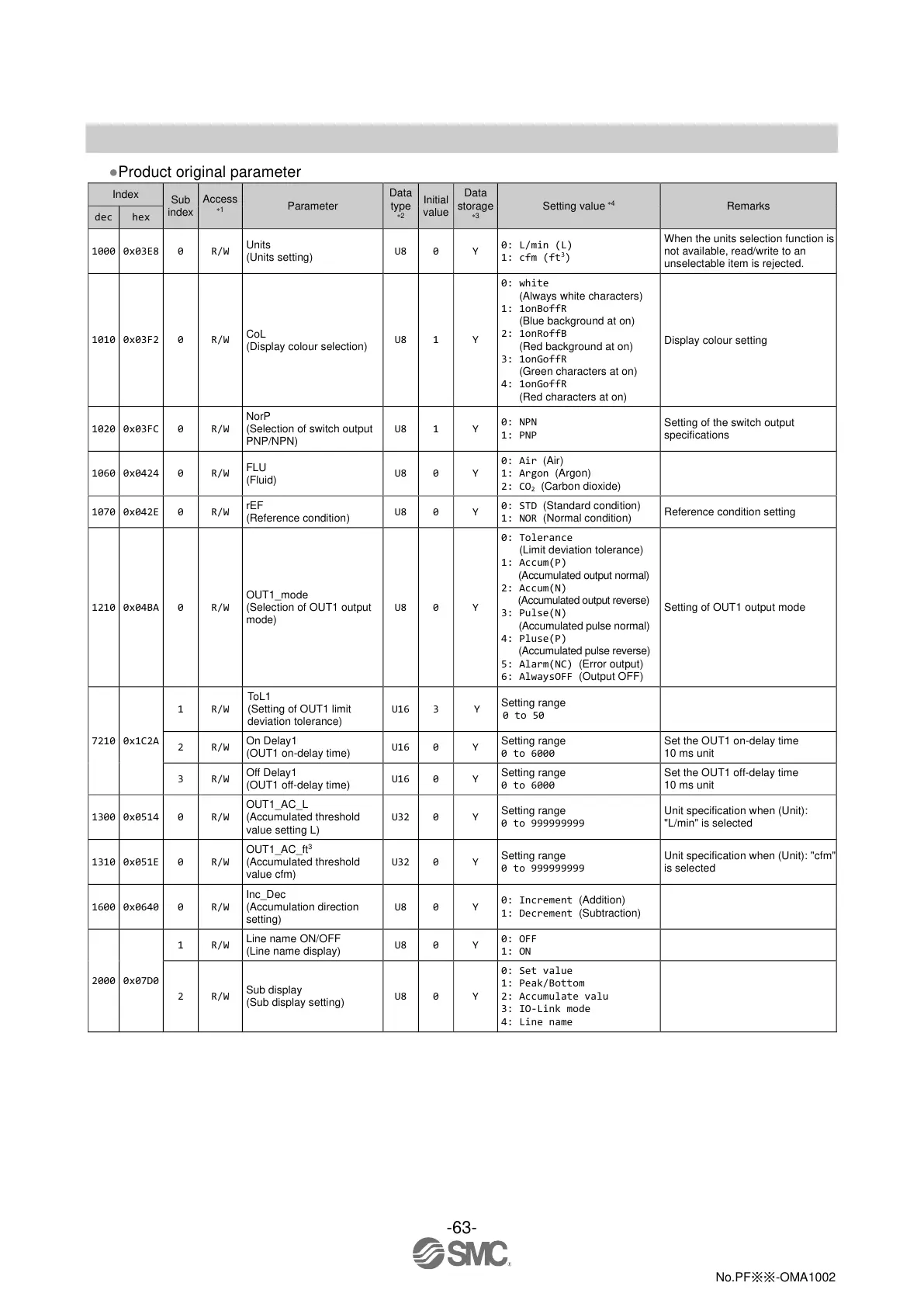

Product original parameter
Index
Sub
index
Access
1
Parameter
Data
type
2
Initial
value
Data
storage
3
Setting value
4
Remarks
dec
hex
1000
0x03E8
0
R/W
Units
(Units setting)
U8
0
Y
0: L/min (L)
1: cfm (ft
3
)
When the units selection function is
not available, read/write to an
unselectable item is rejected.
1010
0x03F2
0
R/W
CoL
(Display colour selection)
U8
1
Y
0: white
(Always white characters)
1: 1onBoffR
(Blue background at on)
2: 1onRoffB
(Red background at on)
3: 1onGoffR
(Green characters at on)
4: 1onGoffR
(Red characters at on)
Display colour setting
1020
0x03FC
0
R/W
NorP
(Selection of switch output
PNP/NPN)
U8
1
Y
0: NPN
1: PNP
Setting of the switch output
specifications
1060
0x0424
0
R/W
FLU
(Fluid)
U8
0
Y
0: Air (Air)
1: Argon (Argon)
2: CO
2
(Carbon dioxide)
1070
0x042E
0
R/W
rEF
(Reference condition)
U8
0
Y
0: STD (Standard condition)
1: NOR (Normal condition)
Reference condition setting
1210
0x04BA
0
R/W
OUT1_mode
(Selection of OUT1 output
mode)
U8
0
Y
0: Tolerance
(Limit deviation tolerance)
1: Accum(P)
(Accumulated output normal)
2: Accum(N)
(Accumulated output reverse)
3: Pulse(N)
(Accumulated pulse normal)
4: Pluse(P)
(Accumulated pulse reverse)
5: Alarm(NC) (Error output)
6: AlwaysOFF (Output OFF)
Setting of OUT1 output mode
7210
0x1C2A
1
R/W
ToL1
(Setting of OUT1 limit
deviation tolerance)
U16
3
Y
Setting range
0 to 50
2
R/W
On Delay1
(OUT1 on-delay time)
U16
0
Y
Setting range
0 to 6000
Set the OUT1 on-delay time
10 ms unit
3
R/W
Off Delay1
(OUT1 off-delay time)
U16
0
Y
Setting range
0 to 6000
Set the OUT1 off-delay time
10 ms unit
1300
0x0514
0
R/W
OUT1_AC_L
(Accumulated threshold
value setting L)
U32
0
Y
Setting range
0 to 999999999
Unit specification when (Unit):
"L/min" is selected
1310
0x051E
0
R/W
OUT1_AC_ft
3
(Accumulated threshold
value cfm)
U32
0
Y
Setting range
0 to 999999999
Unit specification when (Unit): "cfm"
is selected
1600
0x0640
0
R/W
Inc_Dec
(Accumulation direction
setting)
U8
0
Y
0: Increment (Addition)
1: Decrement (Subtraction)
2000
0x07D0
1
R/W
Line name ON/OFF
(Line name display)
U8
0
Y
0: OFF
1: ON
2
R/W
Sub display
(Sub display setting)
U8
0
Y
0: Set value
1: Peak/Bottom
2: Accumulate valu
3: IO-Link mode
4: Line name
