VorTek ProtoCessor Start-up Guide 47

10.6.2 Edit Users

• Click the pencil icon next to the desired user to open the User Edit window.

• Once the User Edit window opens, change the User Security Group and Password as needed.

• Click Confirm.

• Once the Success message appears, click OK.

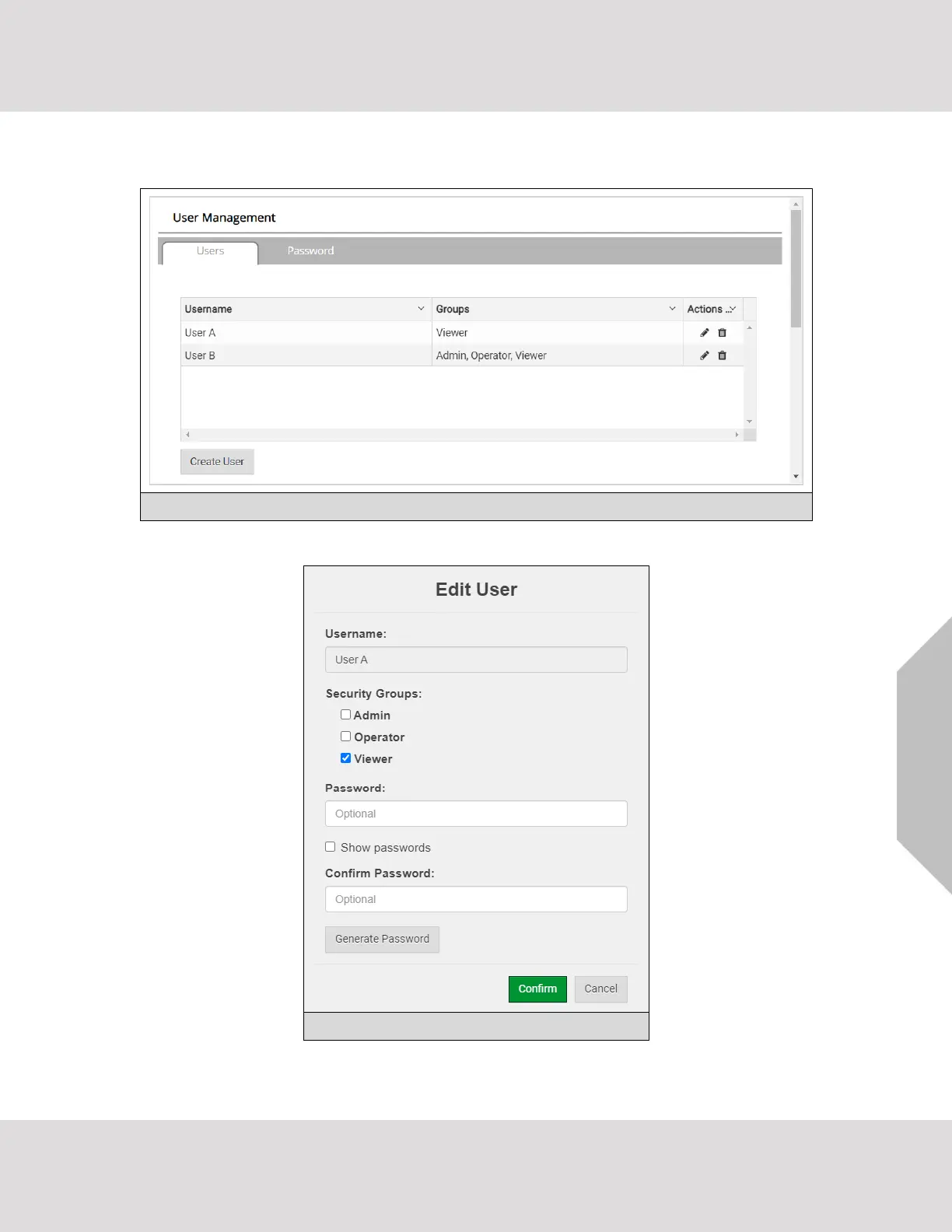

Figure 47: Edit User Window

Figure 46: Setup Users
