Introduction 93L Data Cable

For related information, see the following sections:

• “DC Power Input” on page 8

• “Connecting the AC/DC Power Supply” on page 14

2.6 93L Data Cable

An 93L Data Cable (Figure 2-6) is included with your scan tool. The data cable plugs directly

into the 16-pin data link connector (DLC) on OBD-II vehicles.

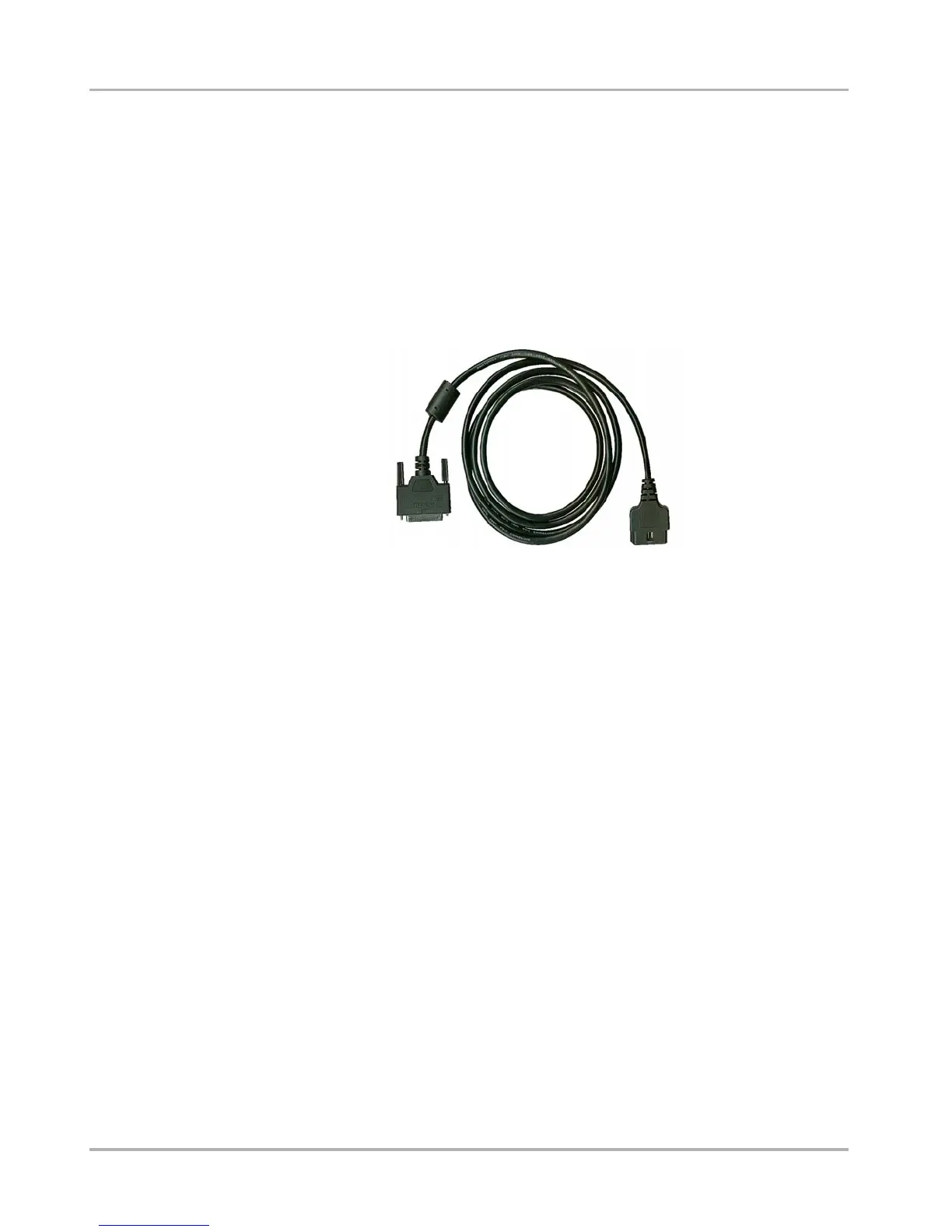

Figure 2-6

93L Data Cable
