29
Operations Selecting from the Vehicle Menu

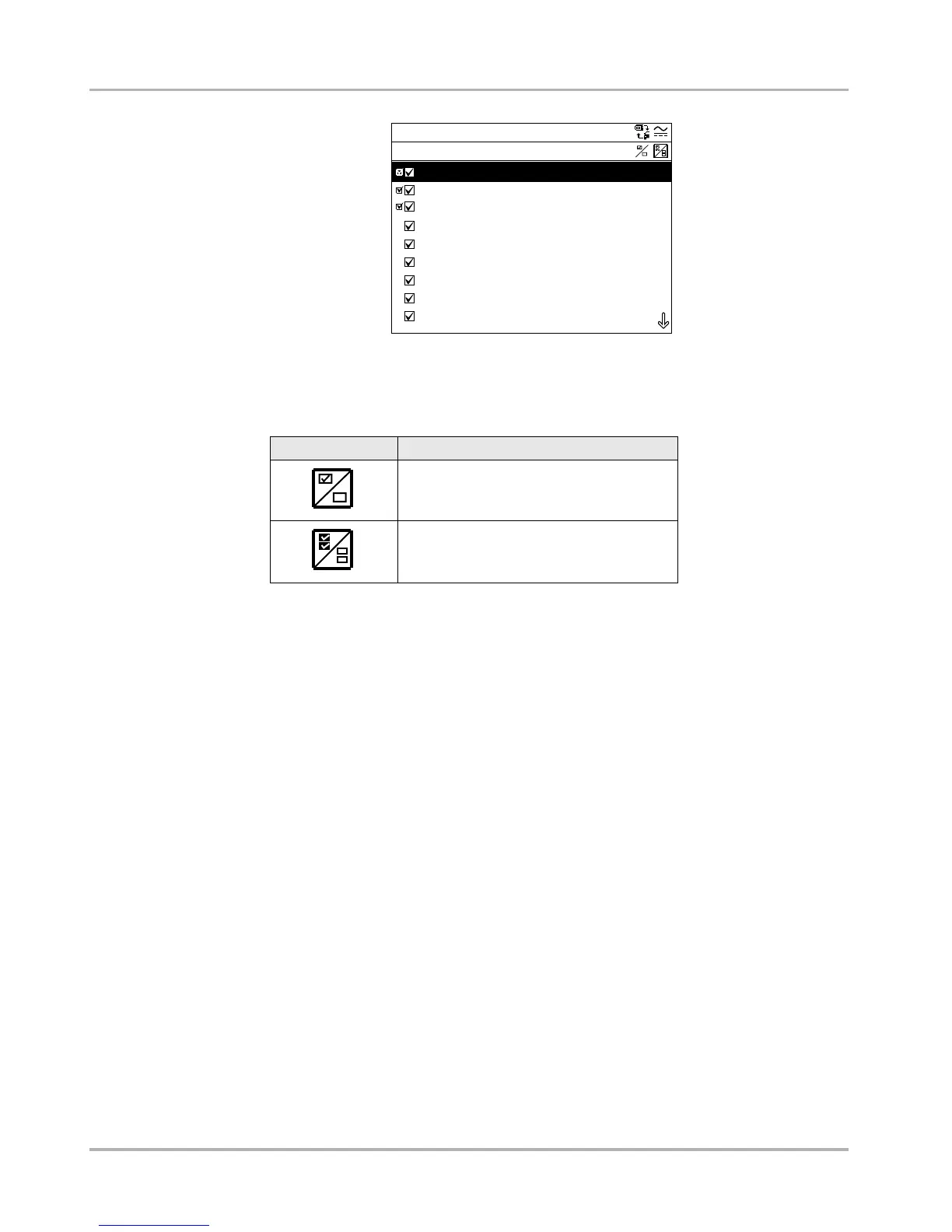

Figure 5-14 Sample data selection screen
2. Highlight a button on the Custom Data List toolbar.
Use the left (e) and right (c) arrows to move between buttons.
3. With Select All/Deselect All highlighted, press Y/a.
Now, all the parameters change to the same condition.
4. With Select/Deselect highlighted, use the up (b) and down (d) arrows to navigate to the
targeted parameters.
5. Press Y/a to switch the condition of a highlighted parameter.
6. Once you custom data list is configured, press N/x to return to the data display.
Changing Screen Views
The View button switches the screen view between Text view and Graph view. When Graph
view is selected, the data graphs of four parameters display in the main body of the screen
(Figure 5-15). Use the up (b) and down (d) buttons to scroll and view other parameters.
Button Description
Select/Deselect, use to mark individual
parameters to hide or display.
Select All/Deselect All, use to mark all
parameters in the list to hide or display. Any
locked parameters cannot be hidden.
RPM
RPM
TPS(%)
TPS(V)
O2 B1-S1(mV)
O2 B2-S1(mV)
O2 B1-S2(mV)
O2 B2-S2(mV)
INJ PW B1(mS)
INJ PW B2(mS)
