67
Scope Multimeter Operation and Controls

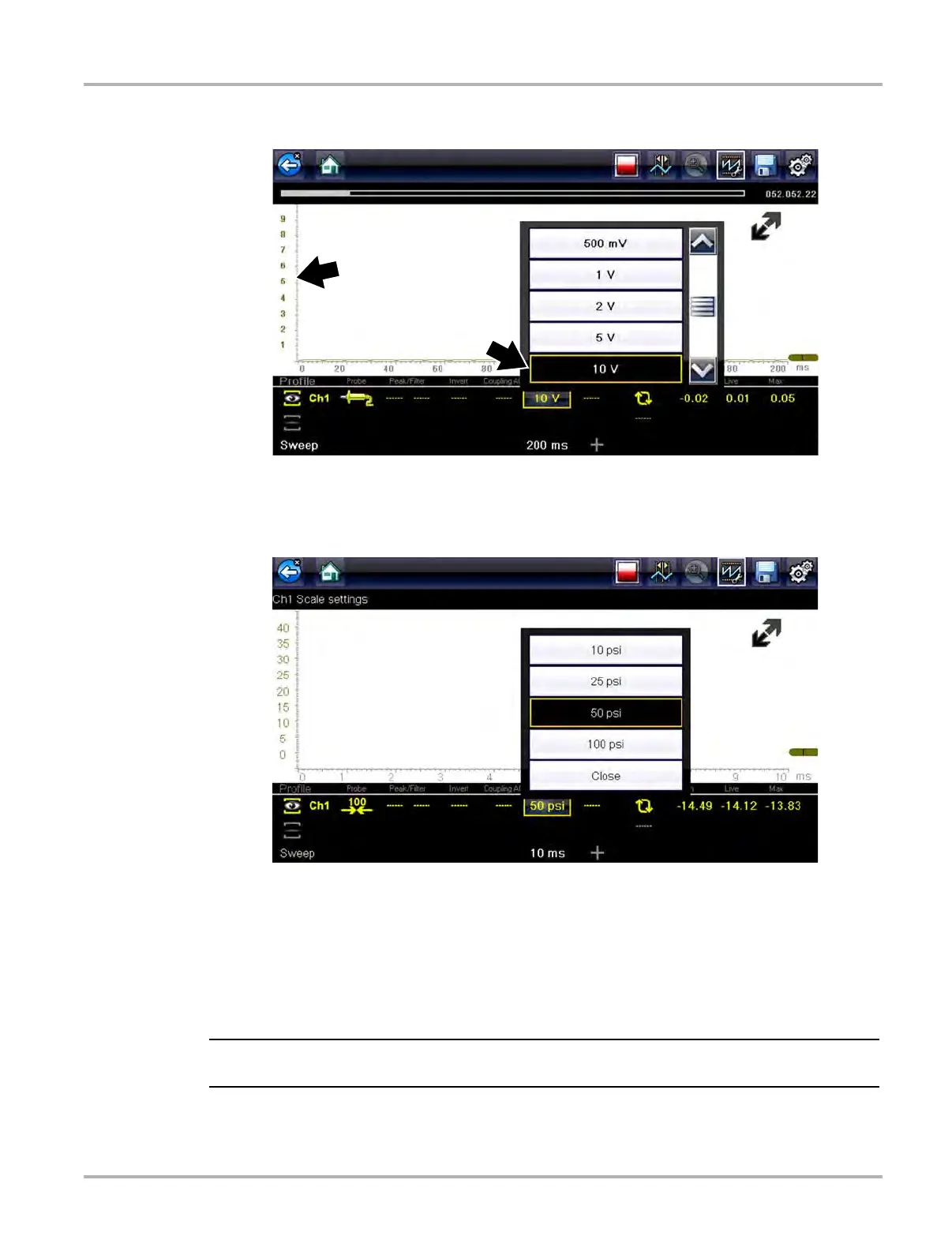

Example: Selecting 10V, changes the vertical scale to a 10V volt scale. The scale is “always”
divided by 10, therefore each division is incremented by 1V.
Figure 5-13
Example: Selecting 50 psi displays a 50 psi scale that is divided by 10, therefore each division
is incremented by 5 psi.
Figure 5-14
Sweep (Horizontal or Time scale adjustment)
The horizontal scale (X-axis) represents time, and the unit of measurement it is being measured
in. The horizontal scale is “always” divided into10 major divisions, how these divisions are defined,
sets the scale of measurement. The value displayed in the sweep Scale icon indicates the active
sweep setting.
i The sweep setting applies to all channels and cannot be set independently per channel.
