Scope Multimeter Operation and Controls
z To turn the cursors on/off:
1. To turn the Cursors on (display), select the Cursor icon from the toolbar.
Two cursors are displayed on the test screen, and the Refresh, Min, Live, Max display panel
is switched off and replaced by the cursor measurements panel. See Cursor Measurements
Panel‚ on page 80 for additional information on the cursor measurements panel.
2. To turn the Cursors off, select the Cursor icon again from the toolbar.

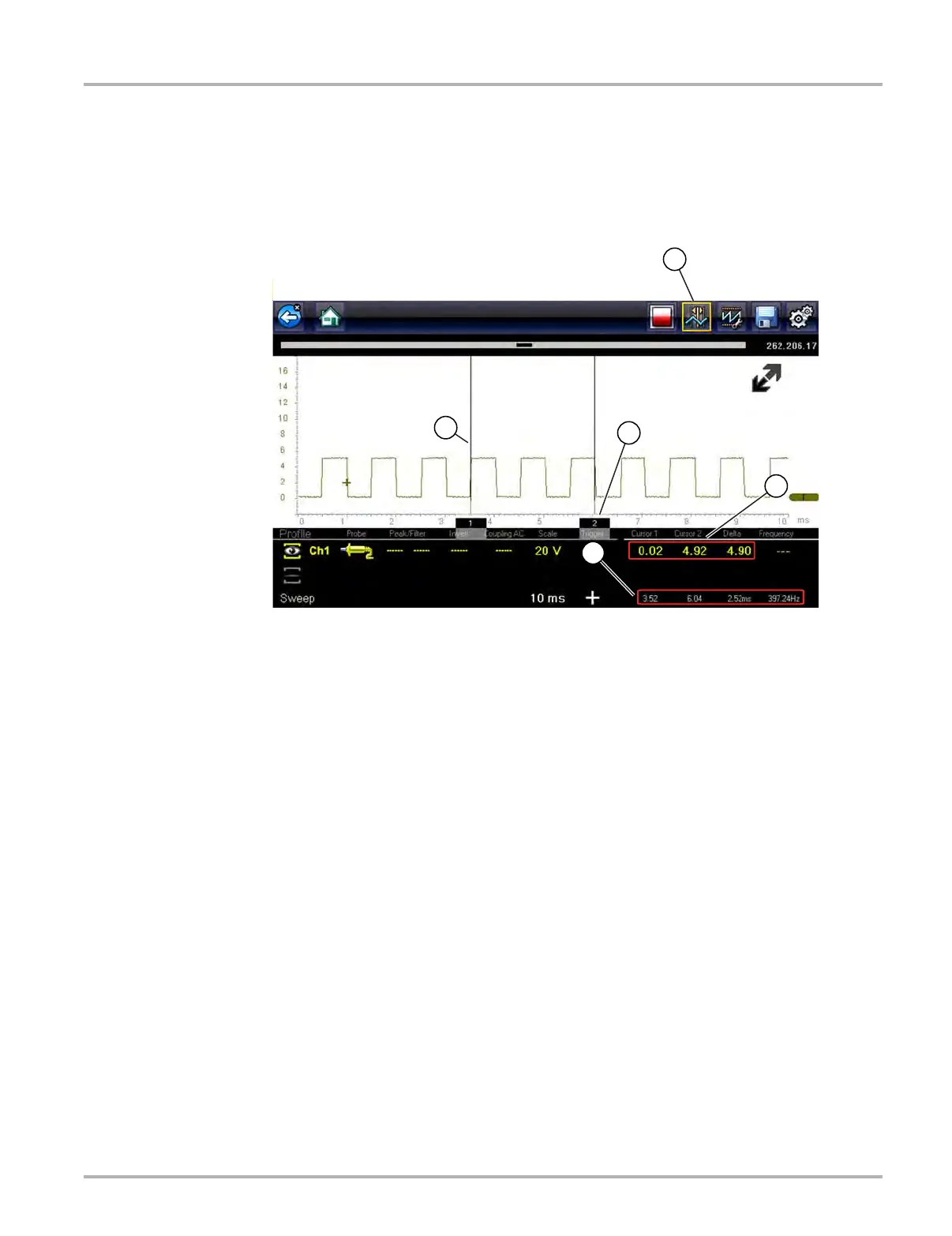

1— Cursors Icon
2— Cursor (no. 1)
3— Cursor Marker (no. 2)
4— Cursor Measurement Panel - amplitude and delta display
5— Cursor Measurement Panel - time and delta display
Figure 5-23
z To position the cursors:
The cursors can be positioned anywhere within the range of the sweep scale (Figure 5-23).
1. Turn the Cursors on.
2. Using the touch screen, select either cursor marker (base) and drag it to the desired position.
2
3
4
5
1
