7
Introduction SCAN MODULE
2.2 SCAN MODULE
2.2.1 Functional description

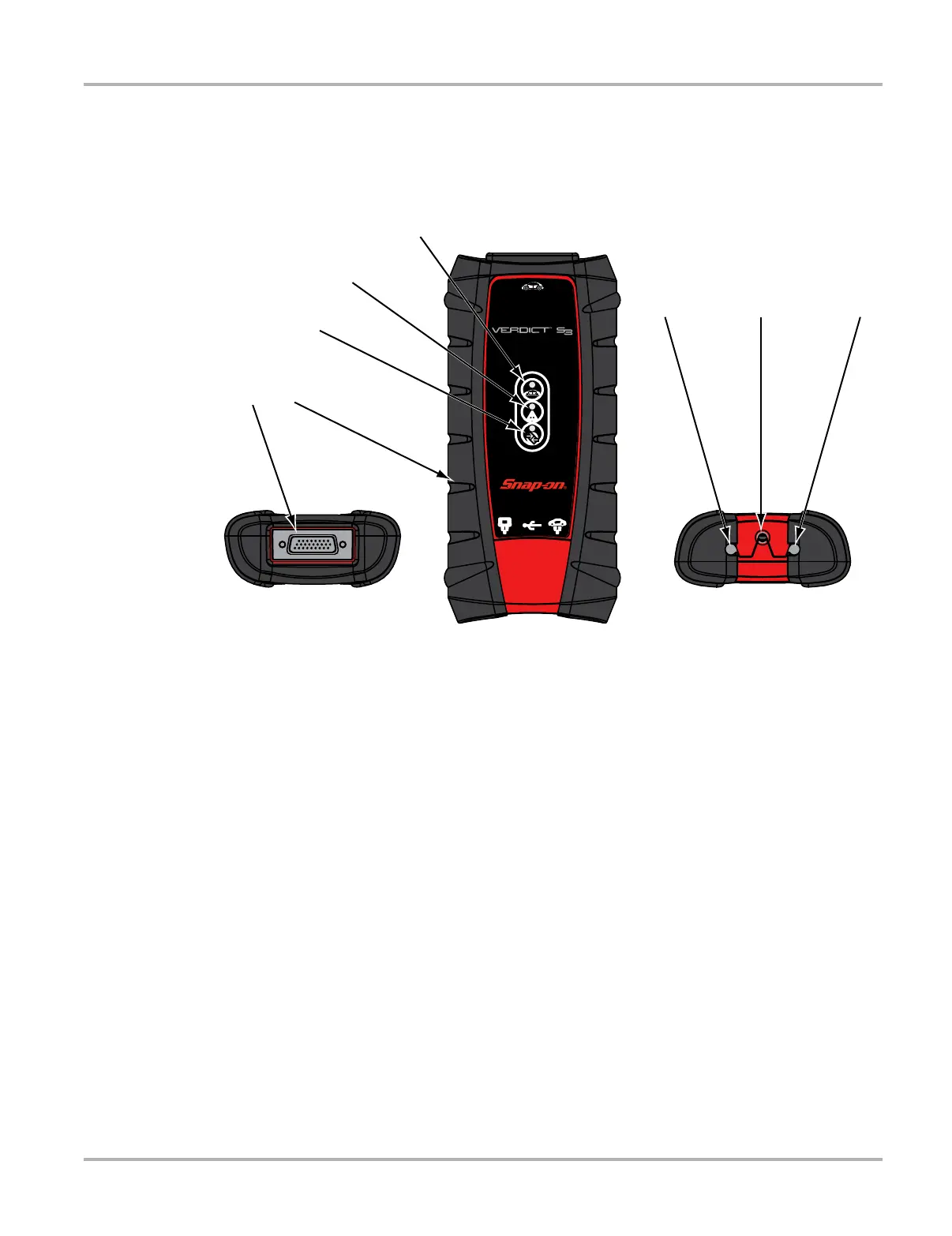

1— Data cable connector
2— Memory card port (remove protective hand grip for access)
3— Bluetooth LED (green)
4— Communication issue LED (red)
5— Vehicle power LED (green)
6— Ethernet port (remove protective hand grip for access)
7— Universal serial bus (USB) port (remove protective hand grip for access)
8— Ethernet port (remove protective hand grip for access)
Figure 2-4 SCAN MODULE
Wireless Communication
The SCAN MODULE is a wireless communications device that transmits vehicle data to the
VERDICT display device without a physical connection. The working range of the transmitter is
about 30 feet (9.14 m). A signal lost due to moving out of range automatically restores itself when
the display unit is brought closer to the SCAN MODULE. The Scanner sounds a tone and the
Display Device shows a warning message when the signal is lost.
