9
Introduction M2 Data Acquisition Device
2.3 M2 Data Acquisition Device
2.3.1 Functional Description

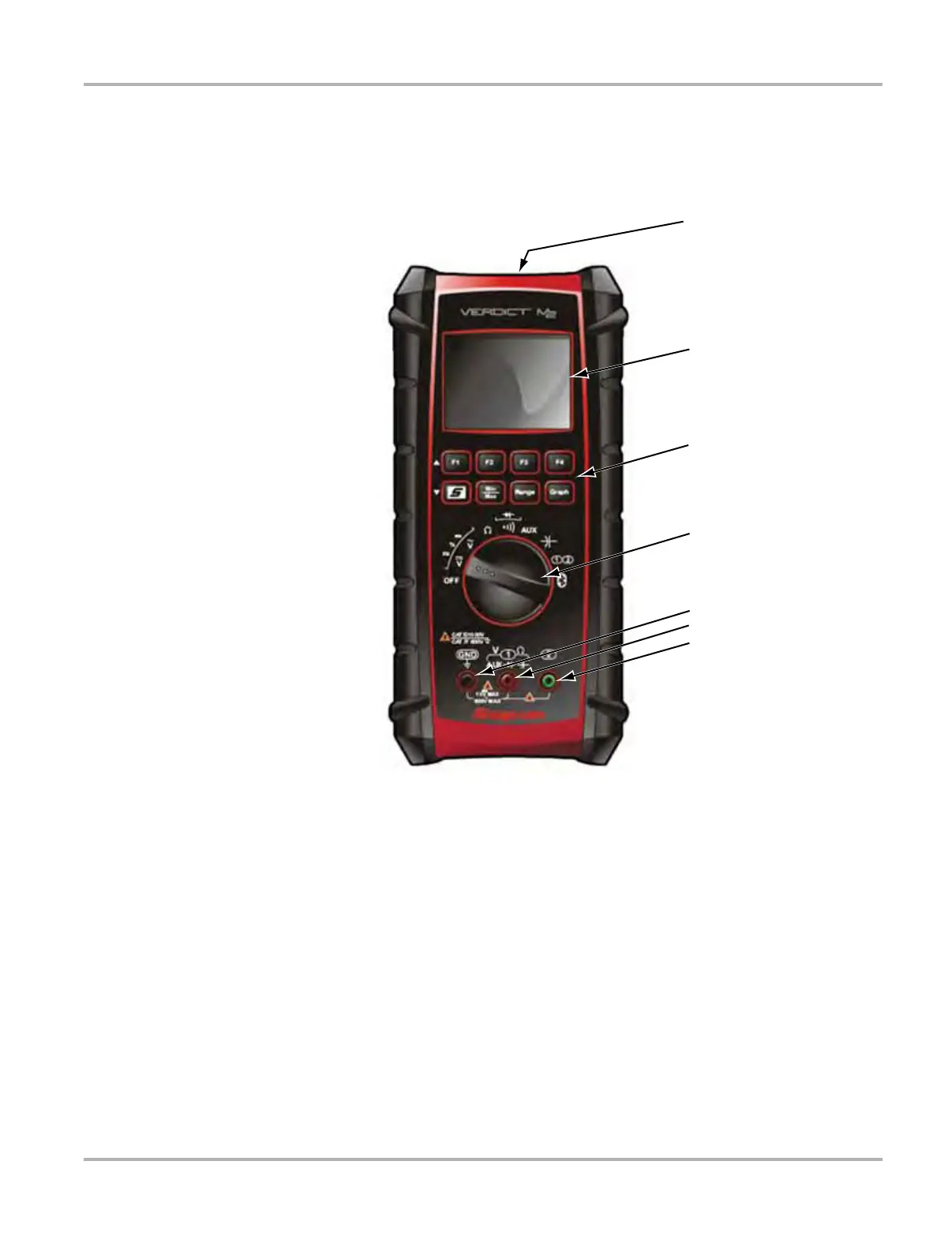

1— DC Power Supply Input Port
2— Color Graphic Display Screen
3— Soft Keys for Selecting Additional Functions
4— Rotary Switch for Selecting Primary Functions
5— Common (Ground) Lead Input Port
6— Channel 1 (Red) Lead Input Port
7— Channel 2 (Green) Lead Input Port
Figure 2-5 Model M2 Data Acquisition Module
Wireless Communication
The VERDICT M2 is digital graphing multimeter and wireless communications device. The unit
can be used as a stand-alone meter, or configured to transmit vehicle data to the D7 Display
Device without a physical connection. The working range of the transmitter is about 30 feet
(9.14 m). A signal lost due to moving out of range automatically restores itself when the display
unit is brought closer to the M2 meter. The VERDICT M2 sounds a tone and the Display Device
shows a warning message when the signal is lost.
