System Settings Operations Synchronizing Wireless Communications
The Hardware Status indicators in the lower-right corner of the Home screen provides a quick
reference of which modules have been paired to the Display Device (Table 12-1):
12.1.1 Pairing the SCAN MODULE
The SCAN MODULE needs to be either connected to a vehicle or connected to a powered USB
port so that it is powered up during the synchronization procedure. Make sure the VERDICT
Display Device has a charged battery or is connected to an AC power supply.
z To pair the Scanner with the Display Device:
1. Power on the VERDICT Display Device.
2. Connect the 25-pin end of the data cable to the Scanner data cable port.
3. Connect the 16-pin end of the data cable to a live vehicle data link connector (DLC).
The green vehicle power LED should be illuminated.
4. Tap the System Settings button on the Home screen of the Display Device.
5. Select Paired Devices from the menu.
6. From the Paired Devices screen select Add from the toolbar.
7. When prompted select OK from the toolbar.
The Display Device searches for compatible wireless devices, then displays the results. The
SCAN MODULE is listed as “VERDICT S3-” plus a partial serial number (Figure 12-2).

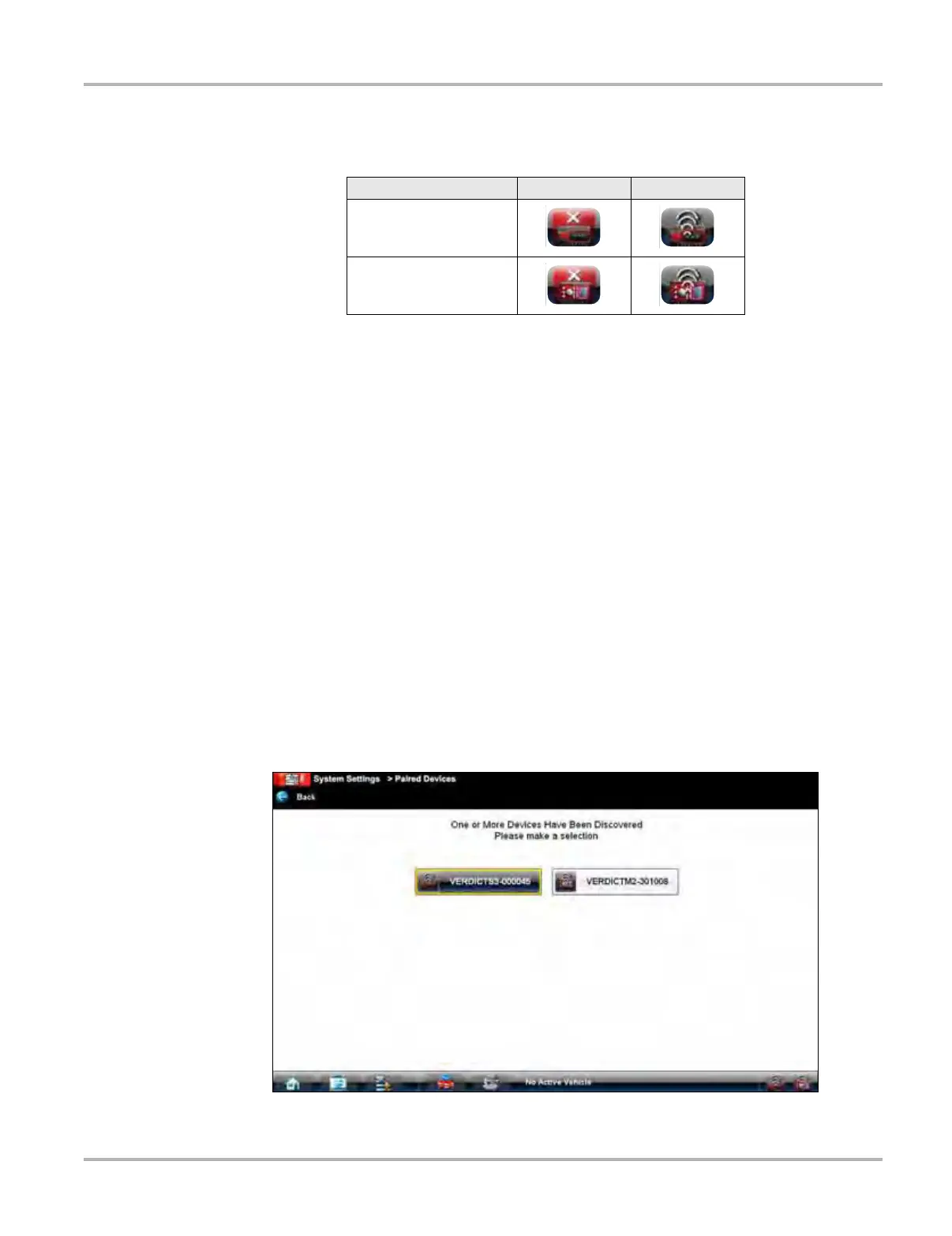

Figure 12-2 Sample SCAN MODULE selection
Table 12-1 Hardware Status indicators
Module Not Paired Paired
Scanner
Data Acquisition
To Next Page
