4. With the Multiple Monitor Support box checked, select the Map Touch Screens button
(Figure 15-5).

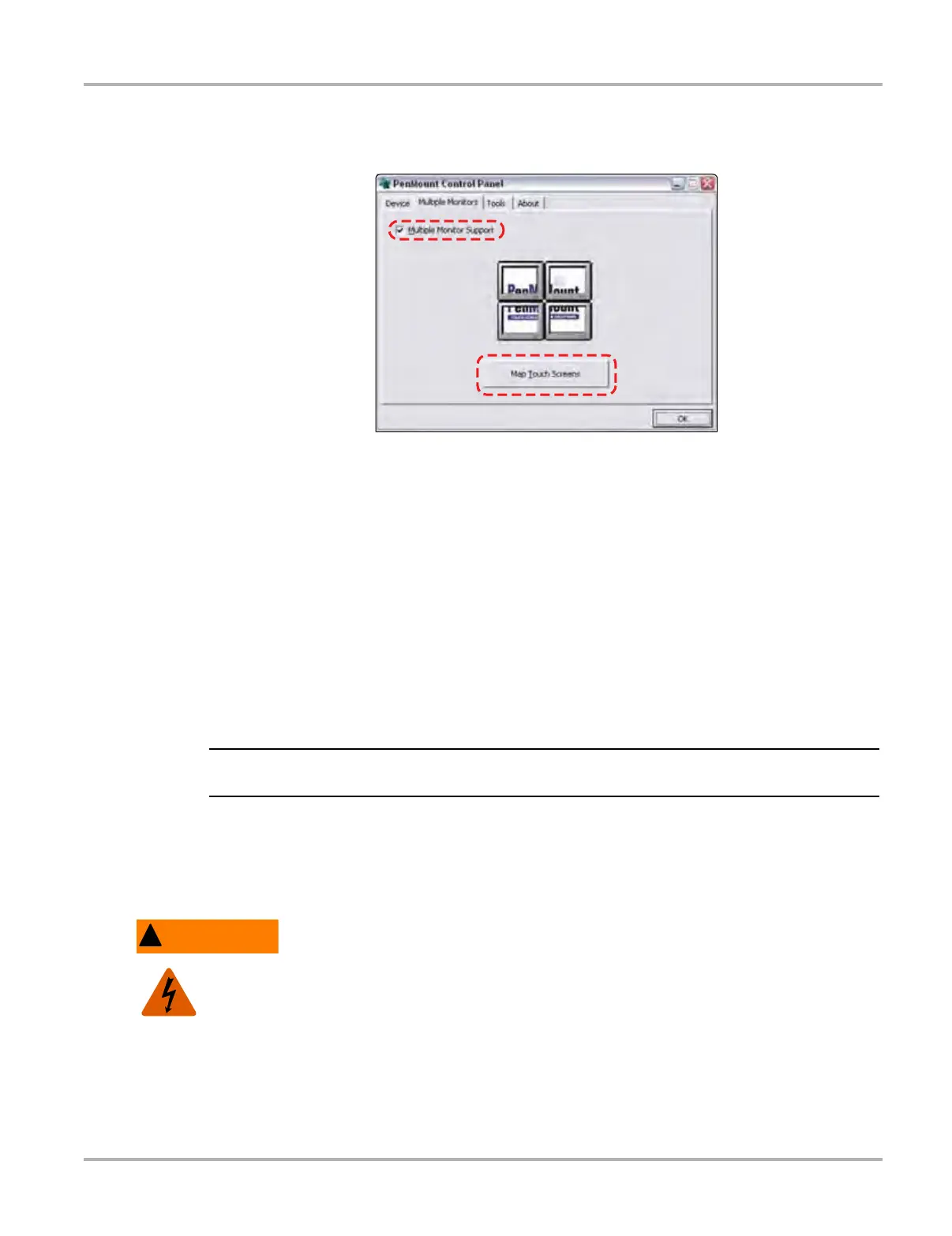

Figure 15-5 Sample Multiple Monitors tab
5. Follow the screen prompts and touch the screen of the D7 Display Device as requested.
6. Type “S” on the USB keyboard to skip for extended display as requested.
7. Select OK from the Multiple Monitors tab to close the PenMount Control Panel dialog box.
8. Calibrate the touch screen using the standard procedure.
15.1.3 Cleaning and Inspecting the D7 Display Device
When using the VERDICT Display Device, make sure to do the following:
• Check the housing, wiring, and connectors for dirt and damage before and after each use.
• At the end of each work day, wipe the VERDICT Display Device housing, wiring, and
connectors clean with a damp cloth.
Do not use any abrasive cleansers or automotive chemicals on the VERDICT Display Device.
15.1.4 Battery Service
Follow all safety guidelines when handling the battery pack.
Risk of electric shock.
• Prior to recycling the battery pack, protect exposed terminals with heavy insulating tape
to prevent shorting.
• Disconnect all test leads and turn diagnostic tools off before removing the battery pack.
• Do not attempt to disassemble the battery or remove any component projecting from or
protecting the battery terminals.
• Do not expose the unit or battery pack to rain, snow, or wet conditions.
• Do not short circuit the battery terminals.
Electric shock can cause injury.
