67
Chapter 8 M2 Data Acquisition Device
This chapter discusses how to use the hardware controls and features, and how to download and
install software updates for the VERDICT M2 Data Acquisition Module.
8.1 Controls, and Features
There are two sets of controls for the M2 Data Acquisition Device:
1— Soft Keys—select test functions, which vary depending upon the Rotary Switch position
2— Rotary Switch—establishes the primary operation of the unit

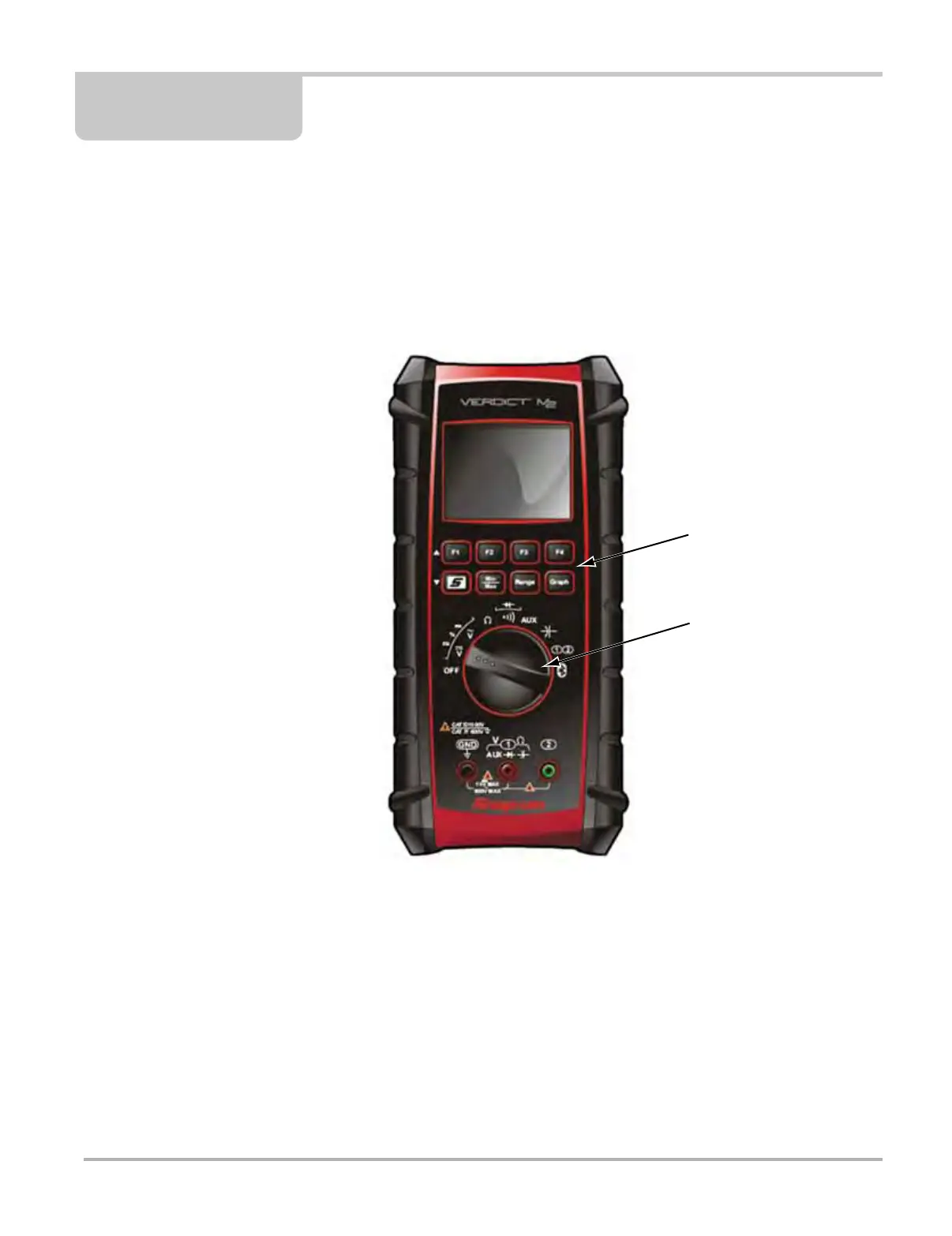

Figure 8-1 VERDICT M2 controls
The following sections describe the external controls and features of the M2 unit.
8.1.1 Rotary Selector Switch
The VERDICT M2 is a combination digital-multimeter (DMM) and waveform viewer, capable of
reading volts (AC and DC), resistance (ohms), capacitance (farads), continuity, diode forward
voltages, and external auxiliary probes, as well as viewing dynamic voltage graphs (waveforms).
The Rotary Selector Switch on the front panel determines which measurements are taken.
