Chapter 2 Introduction
The VERDICT™ Diagnostic Platform is a specialized personal automotive diagnostic solution that
combines information with test instrumentation to help you diagnose symptoms, codes, and
complaints quickly and efficiently. There are three main components to the VERDICT system:
• "D7 Display Device"—the central processor and monitor for the system
• "SCAN MODULE"—the device for accessing vehicle data
• "M2 Data Acquisition Device"—the device for performing meter and lab scope tests
This manual describes the construction and operation of these three devices and how they work
together to deliver diagnostic solutions.
2.1 D7 Display Device
2.1.1 Functional Description
1— Audio Speaker
2— Power Indicator LED (light emitting diode)
3— Microphone
4— Hard Drive Activity LED
5— Directional Buttons; left (e), right (c), up (d), down (b)
6— Stylus lanyard anchor post
7— S Button (special functions)
8— Enter Button
9— Camera (shutter) Button
10—Virtual Keyboard Button
11—Brightness Button
12—Power Button

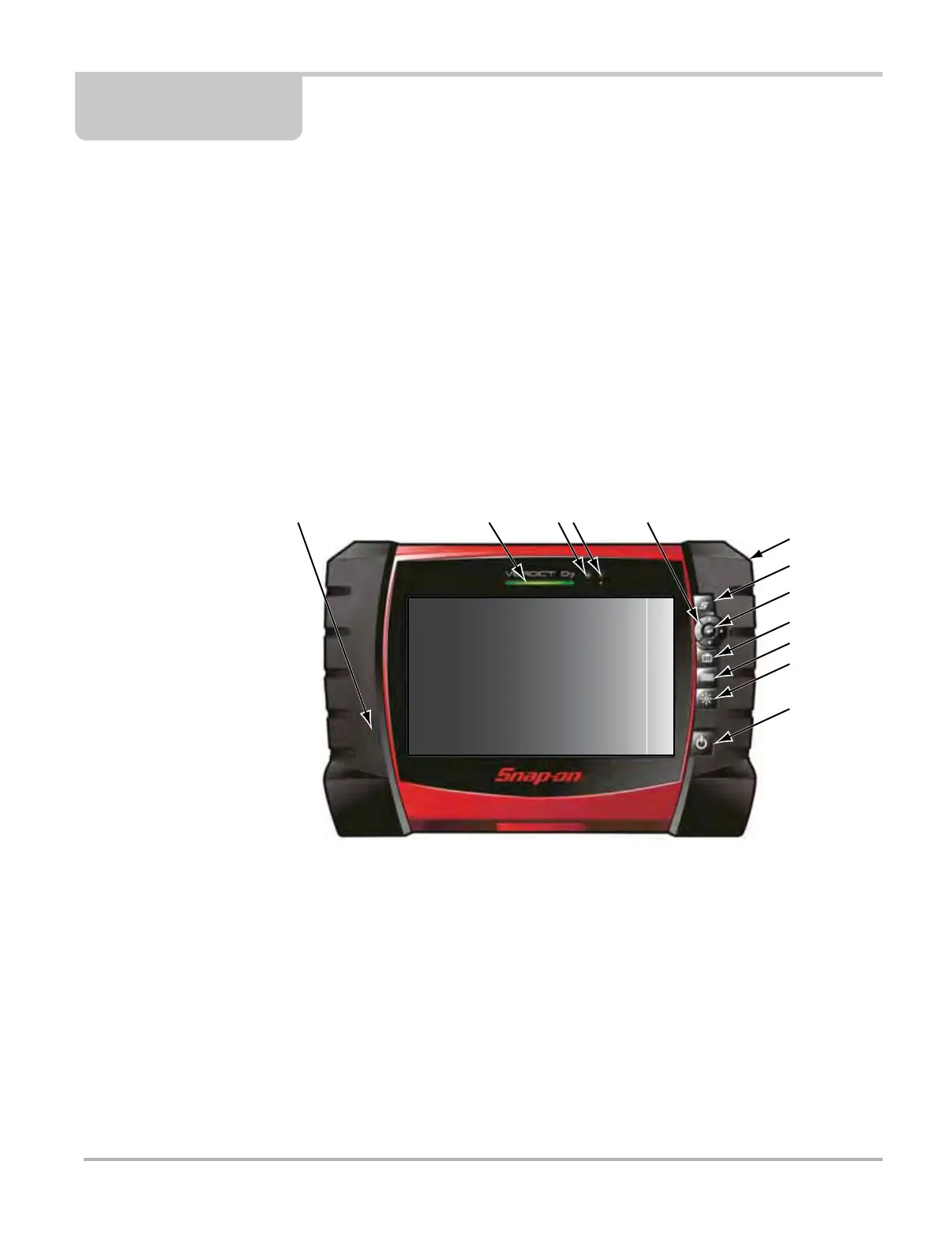

Figure 2-1 Model D7 front view
