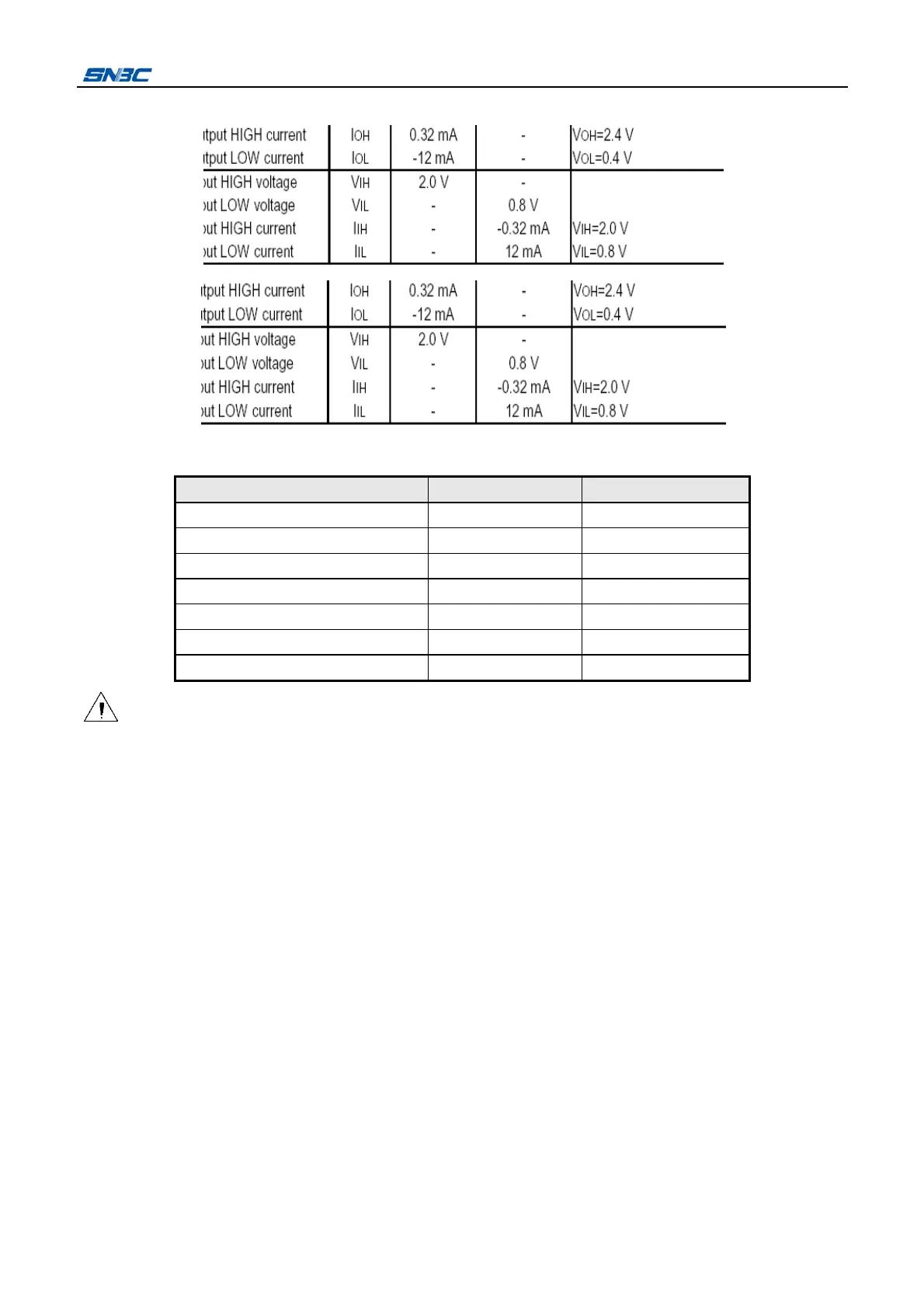

3.3.4 Parameter
3.3.5 Effect of printer’s status on parallel interface
Status /nFault PE
Normal status High Low
Paper end Low High
Rear cover open Low Low
Cutter error Low Low
Input voltage is abnormal Low Low
Print head is overheated Low Low
HP error Low Low
Caution:
 When the above error occurs, user can inquire the printer’s status from the pin of parallel interface.
3.4 Ethernet interface
3.4.1 Interface character
¾ Supports 10BASE-T communication
¾ Ethernet II frame type compatible
¾ LED indicates the net connection status and data transmission status
¾ Supports 9100 port printing
¾ Supports status back
¾ Supports parameter configuration
¾ Supports firmware update online
¾ Supports printer status inquiry and interface module maintenance based in HTTP mode
3.4.2 Protocol supported
¾ IP
¾ ARP
¾ ICMP
¾ TCP
