BTP-M300 Service Manual
- 8 -
¾ UDP
¾ DHCP
¾ TFTP
¾ HTTP
3.4.3 Electrical character
Output signal:
¾ The valid differential mode voltage is more than 450mV, and the peak voltage is no more than 13V;
¾ The common mode peak AC voltage is no more than 2.5V.
Input signal:
¾ If the differential mode voltage is more than 160mV, then it is valid signal.
3.4.4 Frame type
Compatible with the frame type of Ethernet II format.

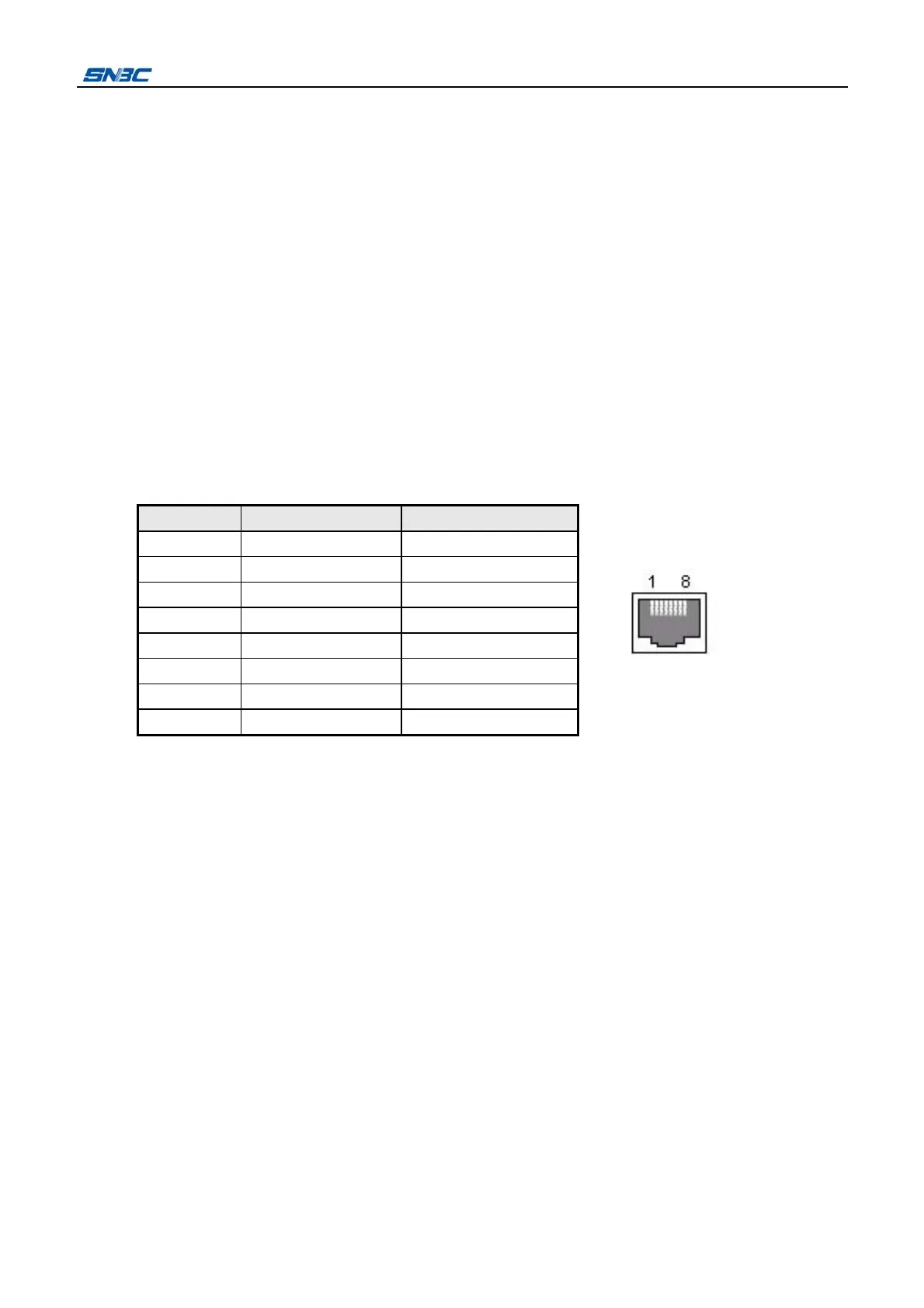

3.4.5 Interface signal
The
interface use 10BASE-T standard which comply to IEEE802.3.
Pin Signal Name Description
1 TX+ Data sending +
2 TX- Data sending-
3 RX+ Data receiving+
4 NC Reserved
5 NC Reserved
6 RX- Data receiving-
7 NC Reserved
8 NC Reserved
