FUEL FILTER BLEEDING PROCEDURE 5.12.10
This operation must be carried out by qualified personnel.
• Loosen the vent screw.
• Release the bayonet closure of the fuel delivery pump by pressing and turning clockwise
simultaneously. The pump piston is now pushed out by the spring.
• Pump until no more air comes out from the vent screw.
• Tighten the vent screw securely (torque 6.5 ± 1.3 Nm)
• Block the bayonet closure of the fuel delivery pump by pressing and turning clockwise
simultaneously.
• Start up the engine for about 5 minutes or at a reduced load. Verify the seal of the pre-filter.

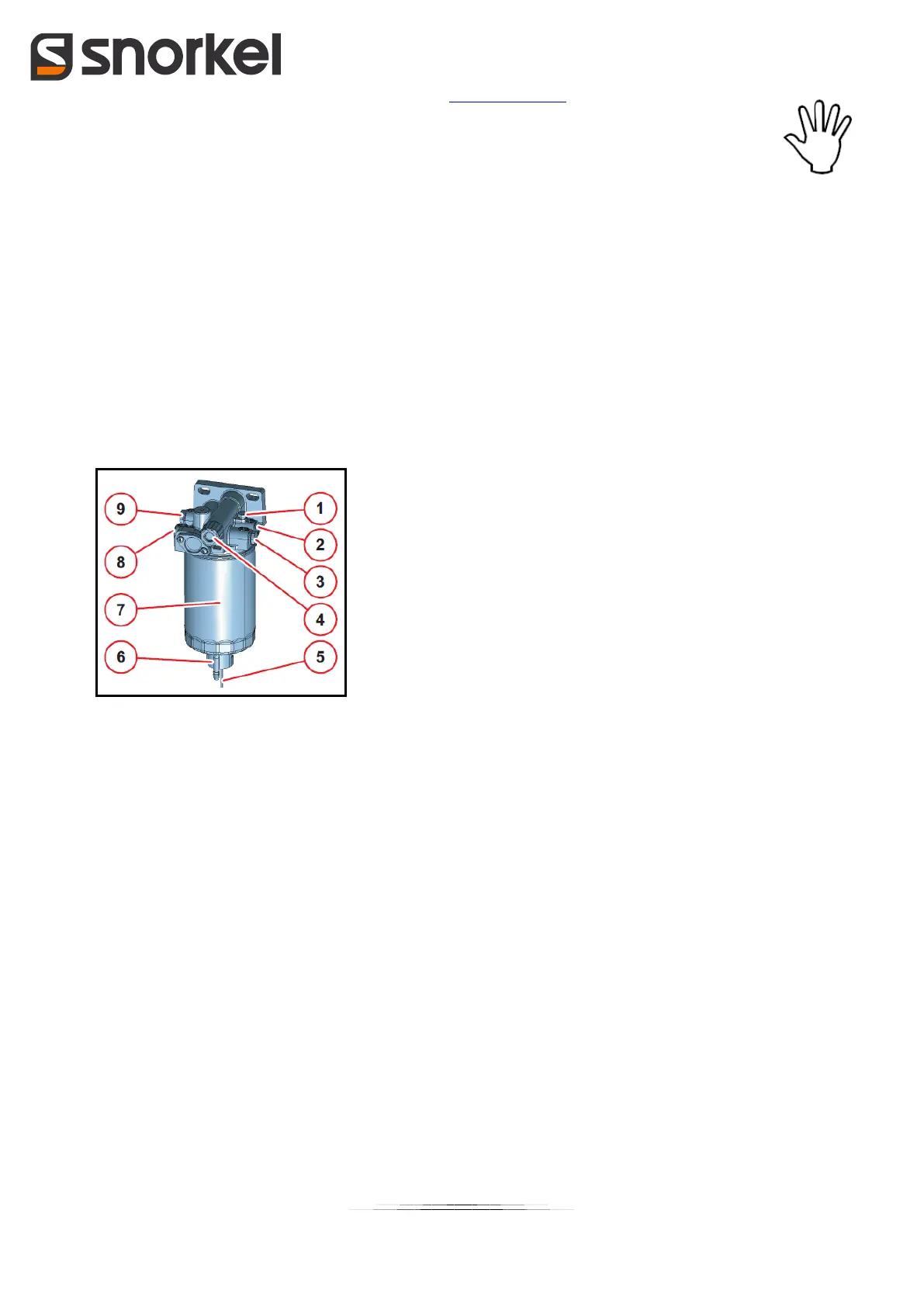

1. Vent screw
2. Fuel pump supply
3. Fuel return from the FCU pilot block (Fuel Control Unit)
4. Fuel delivery pump
5. Electrical connection for the water level sensor
6. Drain plug
7. Filtering cartridge
8. Fuel tank input
9. Fuel tank return
